Procedure
To create a reload archive, proceed as follows:
1.
You have several ways of selecting the program blocks to be archived:
– Select the desired program blocks in the project tree or in the project tree overview. Then
right-click one of the selected program blocks.
You can change the actual program blocks to be exported later in the "Create
SINUMERIK archive" dialog.
– Right-click the program blocks folder of the PLC or a higher-level folder.
You can select the program blocks to be exported later in the "Create SINUMERIK
archive" dialog.
2. Click "Selected program blocks" in the "Create SINUMERIK archive" in the shortcut menu.
The "Create SINUMERIK archive" dialog opens.

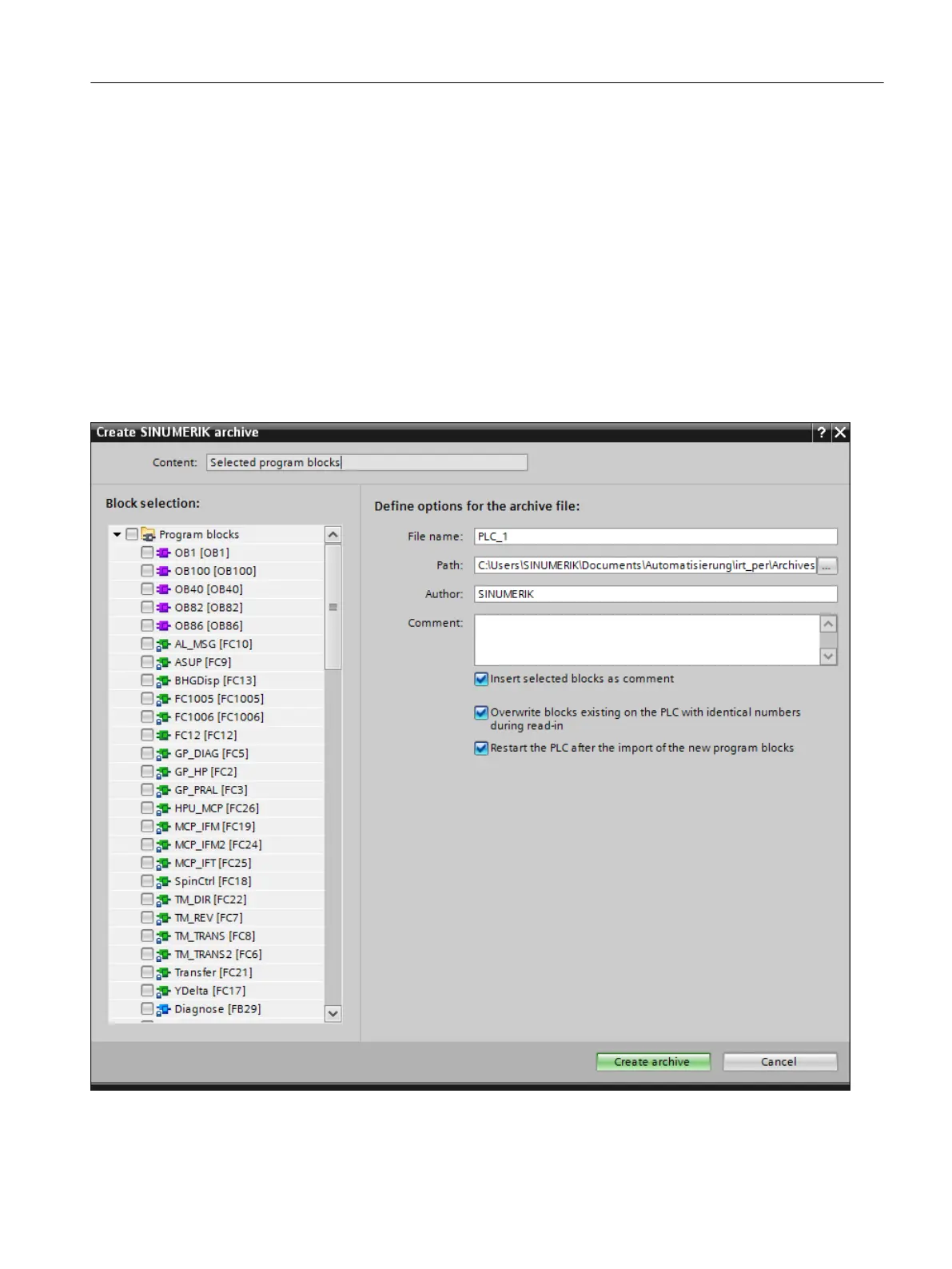

Figure 3-7 "Create SINUMERIK archive" dialog with expanded "Block selection" section
Configuring the NCU
3.6 Creating SINUMERIK PLC archives
SINUMERIK STEP 7 Toolbox V15.1
Configuration Manual, 12/2018, A5E46279635B AA 53

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
