03.04 "Parameters" Operating Area
5.1 Tool data
5
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 5-175

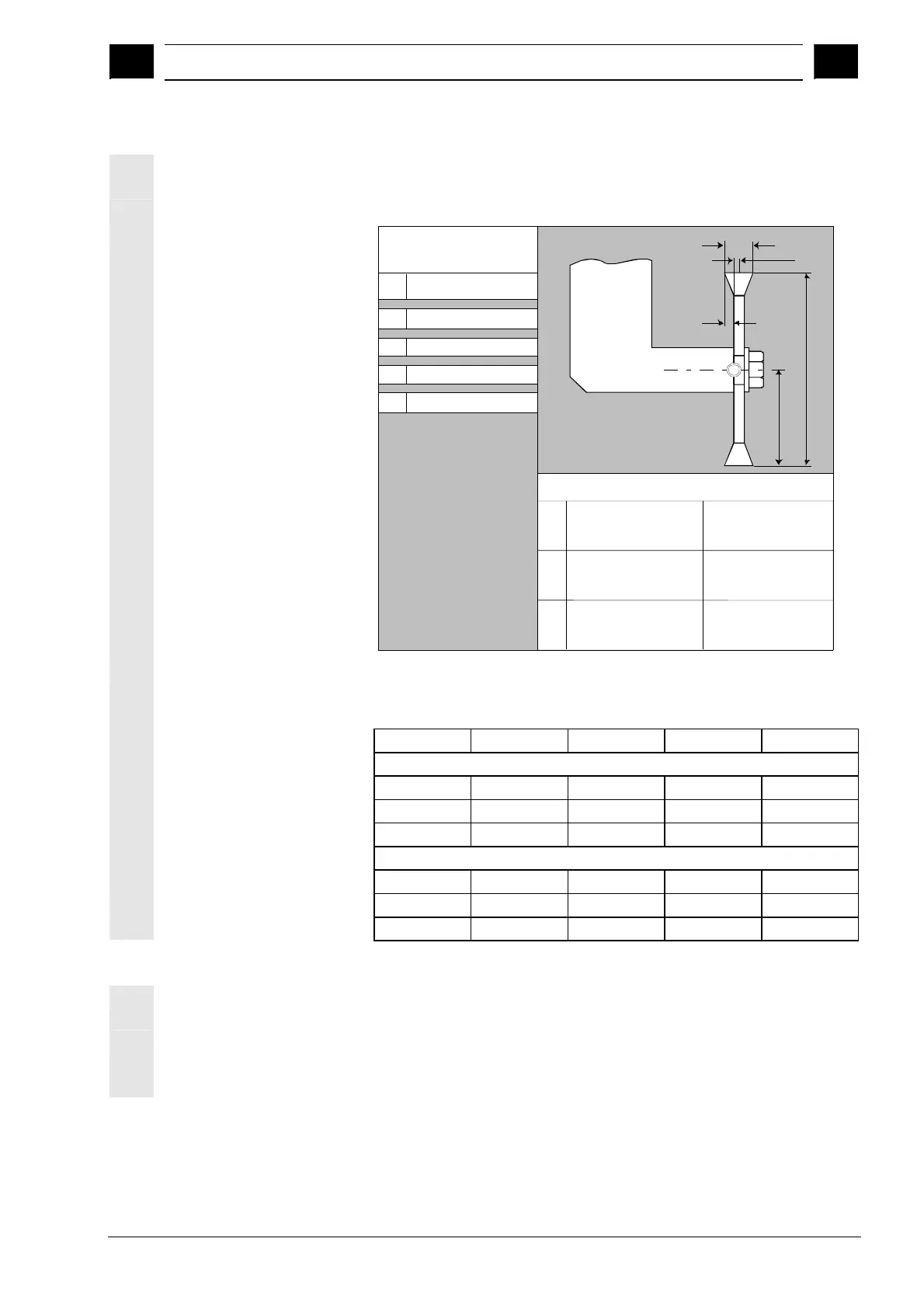

Required offset values
for slotting saw
· Type 700 (slotting saw)
Entries in
tool parameters
DP3 Length 1 -
Base
DP4
Length 2 -
Base
DP6 Diameter - Geometry
DP7 Zero width - Geometry
DP8 Projection - Geometry
Wear values
according
to requirement
Effect
G17: Semi-diameter (L1) in Z
Projection in (L2) Y
Saw blade in (R) X/Y
G18: Semi-diameter (L1) in Y
Projection in (L2) X
Saw blade in (R) Z/X
G19: Semi-diameter (L1) in Z
Projection in (L2) Z
Saw blade in (R) Y/Z
Plane selection
1st–2nd axis (X–Y)
Plane selection
1st–3rd axis (X–Z)
Plane selection
2nd–3rd axis (Y–Z)
Slot width b
Length
2
Projection
k
Tool base
Length
1
Diameter d
Other values must be
set to zero
L1 = DP3 + DP6/2
L2 = DP4 + DP7/2 - DP8
R = DP7/2
Tool base
The offset data (TOA data) you can enter for tool type 700 "slotting
saw" are as follows:
Geometry Wear Base
Length compensation
Length 1 $TC_DP3 $TC_DP12 $TC_DP21 mm
Length 2 $TC_DP4 $TC_DP13 $TC_DP22 mm
Length 3 $TC_DP5 $TC_DP14 $TC_DP23 mm
Radius compensation
Diameter $TC_DP6 $TC_DP15 mm
Slot width b $TC_DP7 $TC_DP16 mm
Projection k $TC_DP8 $TC_DP17 mm
3D probe
Type 710
See /BNM/, User's Guide Measuring Cycles
Dead stop
Type 730
The stop is used to position the material in turning machines with bar
feed. Only tool length compensation is important.
