Siemens SINUMERIK 840D Operator's Guide

7
"Services" Operating Area 03.04
7.5 O
p
eration
7
Ó Siemens AG, 2004. All rights reserved
7-382 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition
Status line
The status bar for the current selected parameter file displays the
following data:
COM1 or COM2
Xon/Xoff or RTS/CTS
Baud rate
Number of data bits
Number of stop bits
<<
Return to "Interface: RS-232" screen form
Error handling
Only RS-232 parameters with COM1 or COM2 entered in the
"Interface:" field are saved.
If an error is detected while displaying/assigning an RS-232
parameter file, the file name is displayed in the title bar of the
Interface: RS-232 screen form.

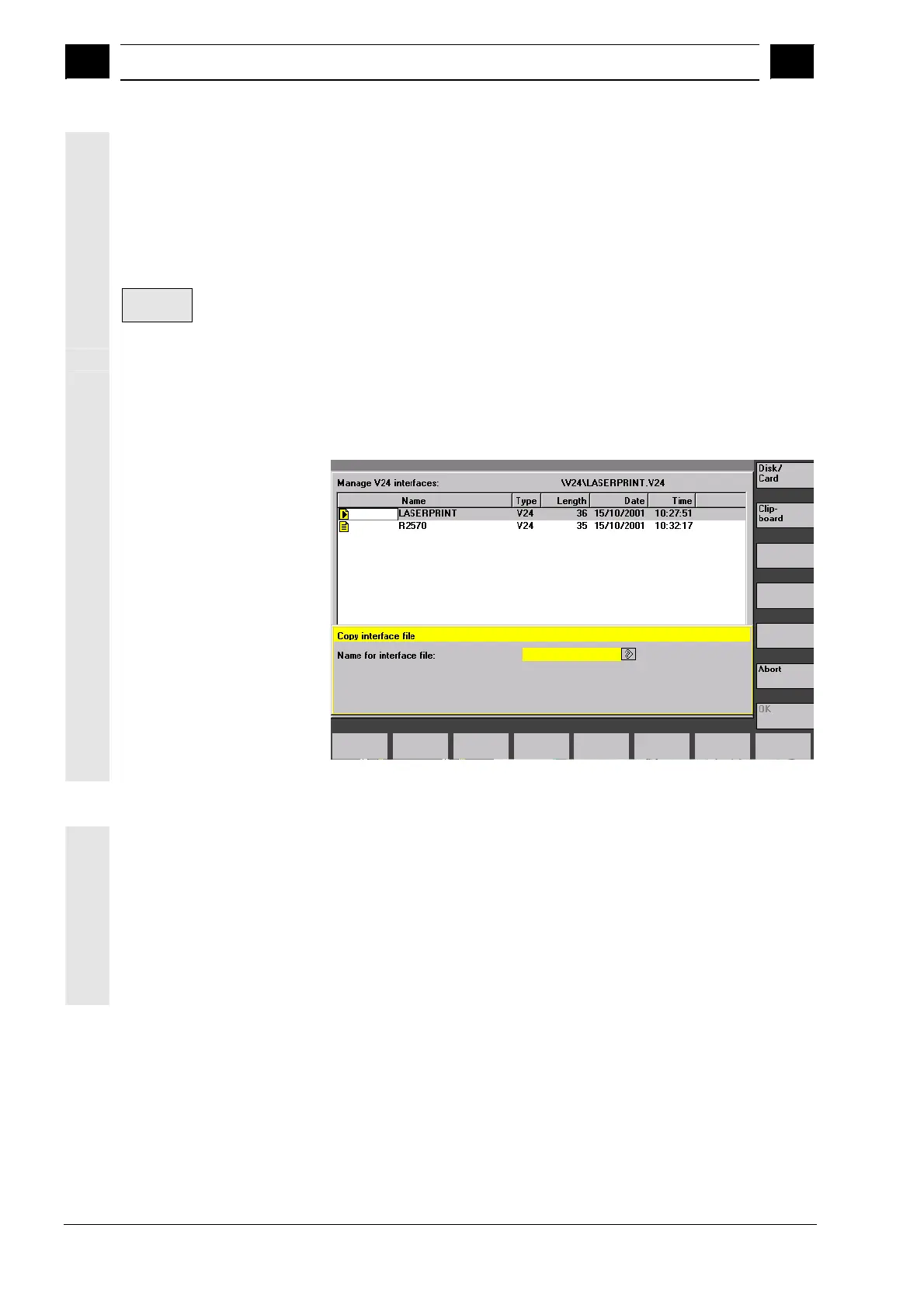

Secondary display for copying the RS-232 interface parameter file
Clearing assignment
If "none" is specified in the interface field in "Interface: RS-232" and
an RS-232 parameter file is assigned, the assignment is cleared by
pressing OK.
Power-up
After booting, the assigned files are displayed on the softkeys RS-232
and PG and their settings are actively set for the interfaces. If the
assigned files cannot be found, the default text (RS-232 or PG) is
displayed again. The corresponding interface is then assigned the
previous RS-232 parameters.

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
