6 Subroutines 05.91
6.4 Subroutine nesting
Example:
Program execution
W
X
Z
5
75
60
65
52
30
20
50

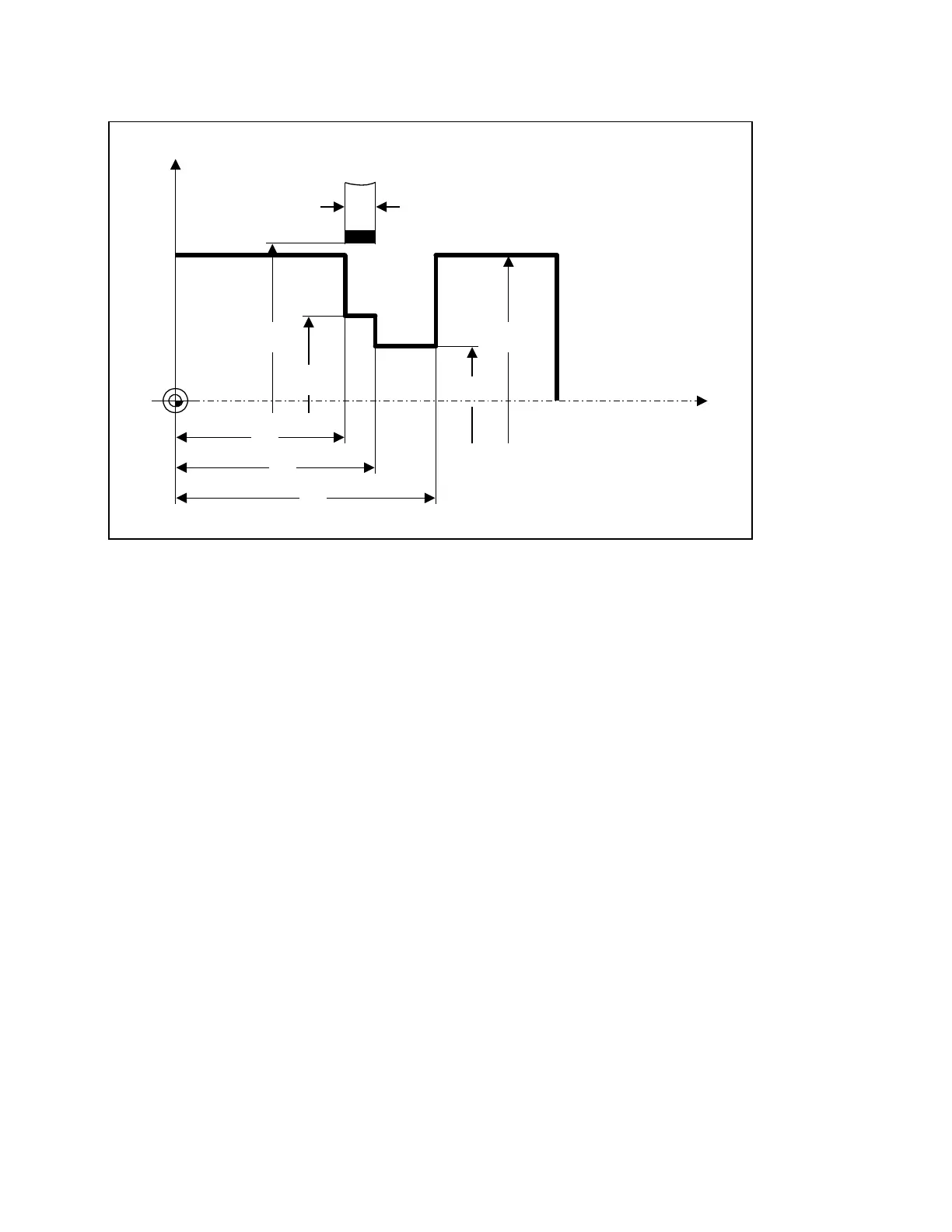

Subroutine nesting
% 4011
L
F
N05 G90 G94 F.. S.. D.. T.. M..
L
F
N10 G00 X52 Z60
L
F
N15 L230 P1 (Subroutine call No. 230)
.
.
N50 M30
L230
L
F
N05 G91 G01 X-11
L
F
N10 G09 X11
L
F
N15 L240 P2
L
F
(Subroutine call No. 240)
N20 M17
L
F
L240
L
F
N05 G91 G00 Z5
L
F
N10 G01 G09 X-16
L
F
N15 G00 X16
L
F
N20 M17
L
F
6–4 © Siemens AG 1991 All Rights Reserved 6ZB5 410-0HD02
