4 Programming of Motion Blocks 05.91
4.2.8 Dwell G04
4.2.8 Dwell G04
Dwell times are required for relief cutting, and sometimes for speed changes and machine
switching functions (steady, tailstock, etc.).
The action of G04 is block by block.
No other functions may be written in a block containing a dwell time.
The dwell time is always stated without sign.
The dwell is entered under address X or F.
0.001 to 99999.999 s for X and
0.001 to 99.999 s for F.
Example:
N.. G04 X11.5 L
F
(Dwell 11.5 s)
A further option is to program the dwell in spindle revolutions. The dwell is then programmed
under address S in the range between 0.01 and 99.9 revolutions.
Example:
N.. G04 S5 L
F
(Dwell 5 spindle revolutions)

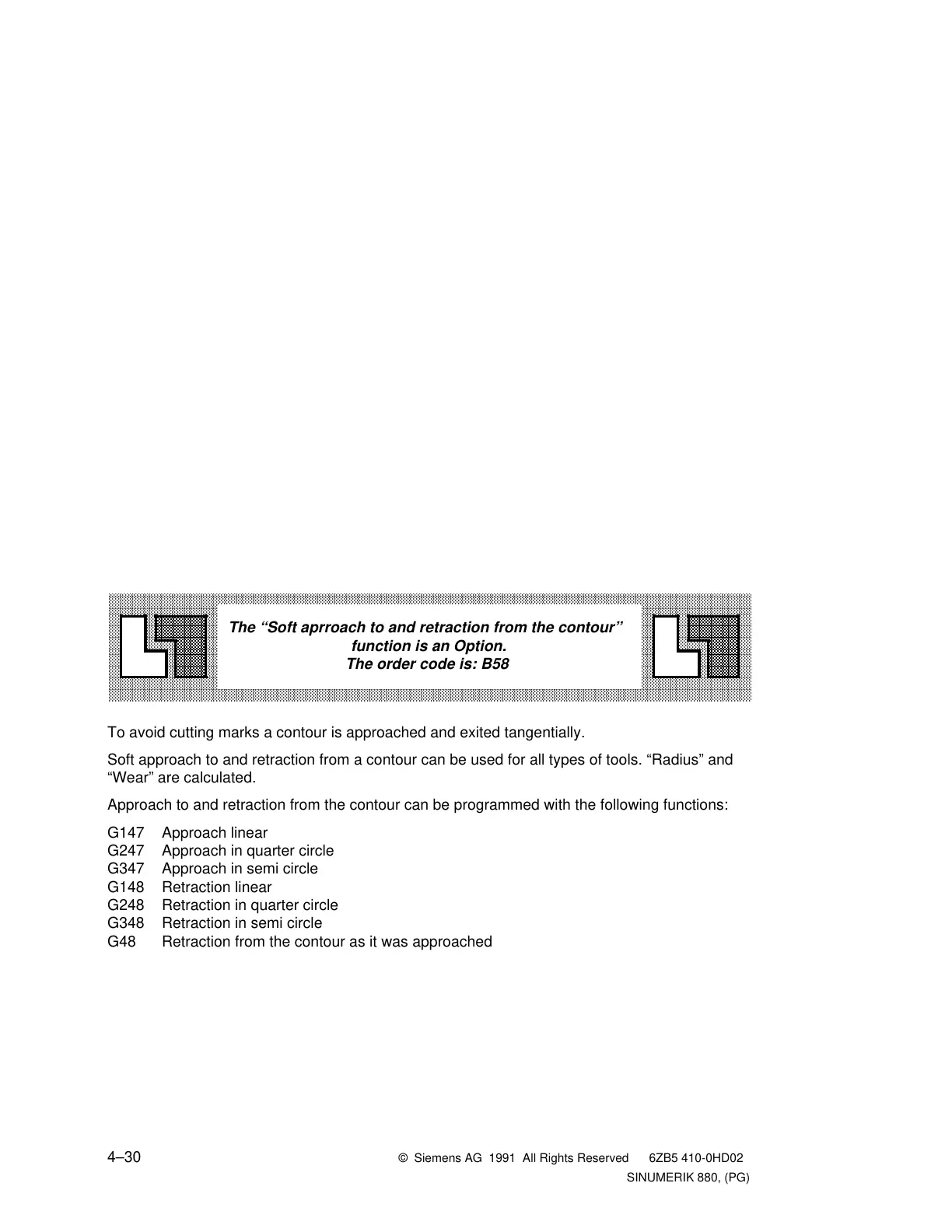

4.2.9 Soft approach to and retraction from the contour
