05.91 4 Programming of Motion Blocks
4.2.4 Cylindrical interpolation
Example:
N10 G01 X50 Y50 F500
L
F
N20 G02 X90 Y70 I40 J–30 Z10 V20 W30
L
F
The required feedrate must be programmed before the helical block or in the helical block at
the latest. The programmed feedrate acts on the circular axes only. The linear axes are
controlled to reach the end point as the circular axes arrive at the circle end point.
The axes involved in interpolation are monitored for their maximum permissible speed. If this
limit is exceeded (i.e. V
prog
>V
max
) this will lead to a feedrate limitation.
When simulating five-axis helical interpolations, these are not drawn at all or only partly (linear).
An alarm is not issued however.

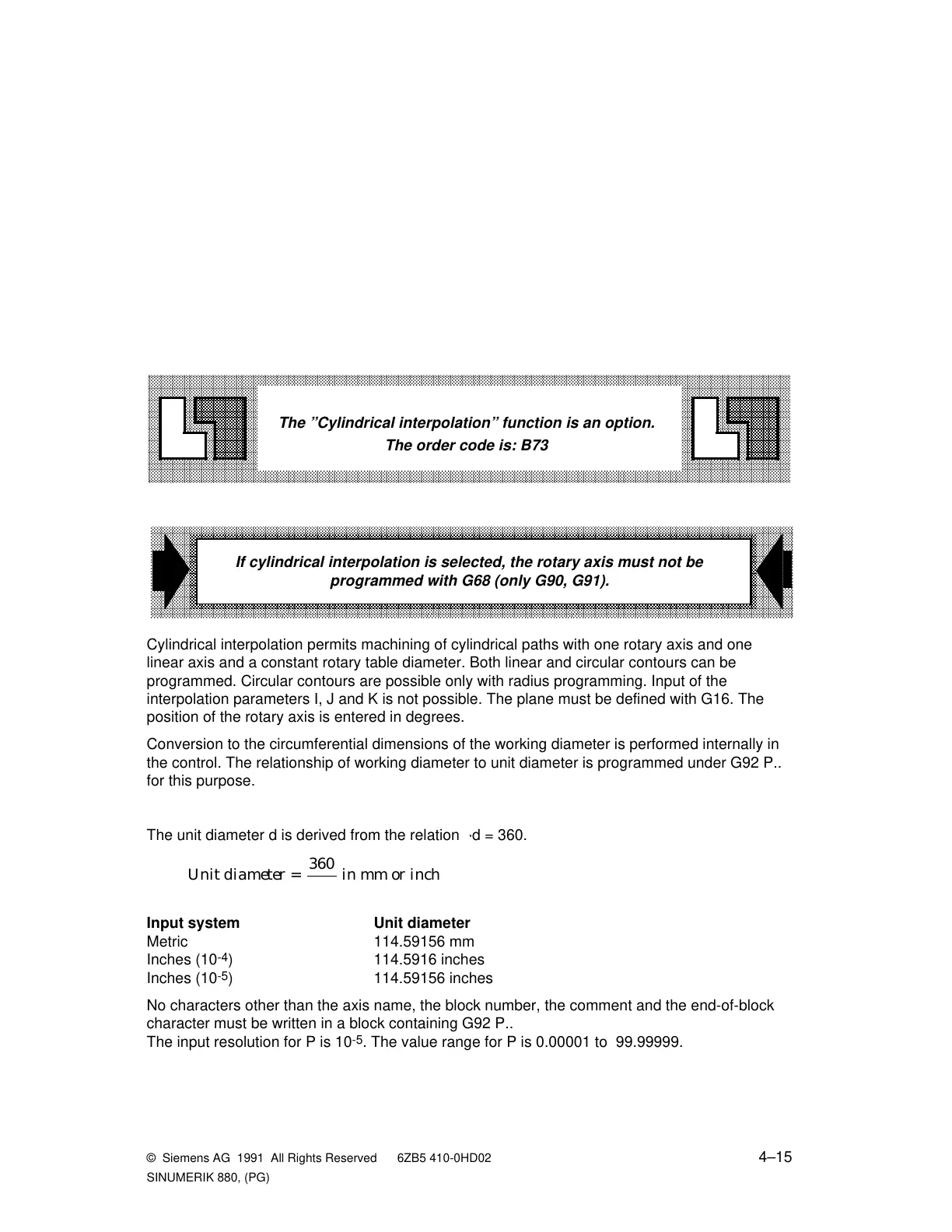

4.2.4 Cylindrical interpolation
