05.91 4 Programming of Motion Blocks
4.2.9 Soft approach to and retraction from the contour

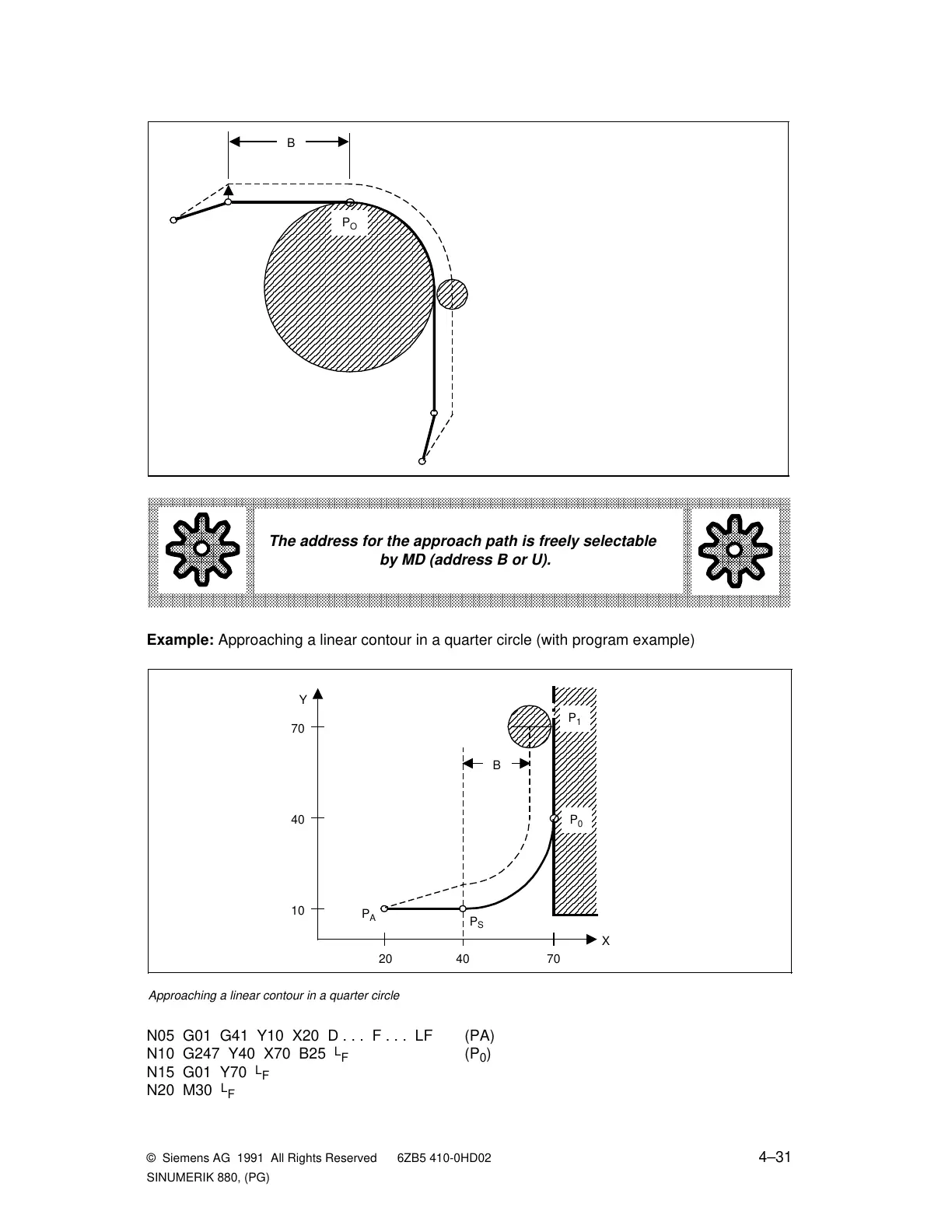

Example: Straight line to a circle
P
A
... Starting point of departure before approaching
the contour
P
S
... Support point: is calculated by the control after
“B” is specified
P
O
... End of the approach block (initial point of the
contour)
B... Approach path without touching contour (is
predefined)
P
E
... Final point having exited contour
R... Calculation of cutting radius
(dotted line: centre point path/TNRC)
R
P
A
P
S
P
E
P
S
