Main group 7/subgroup 1 : Single functions

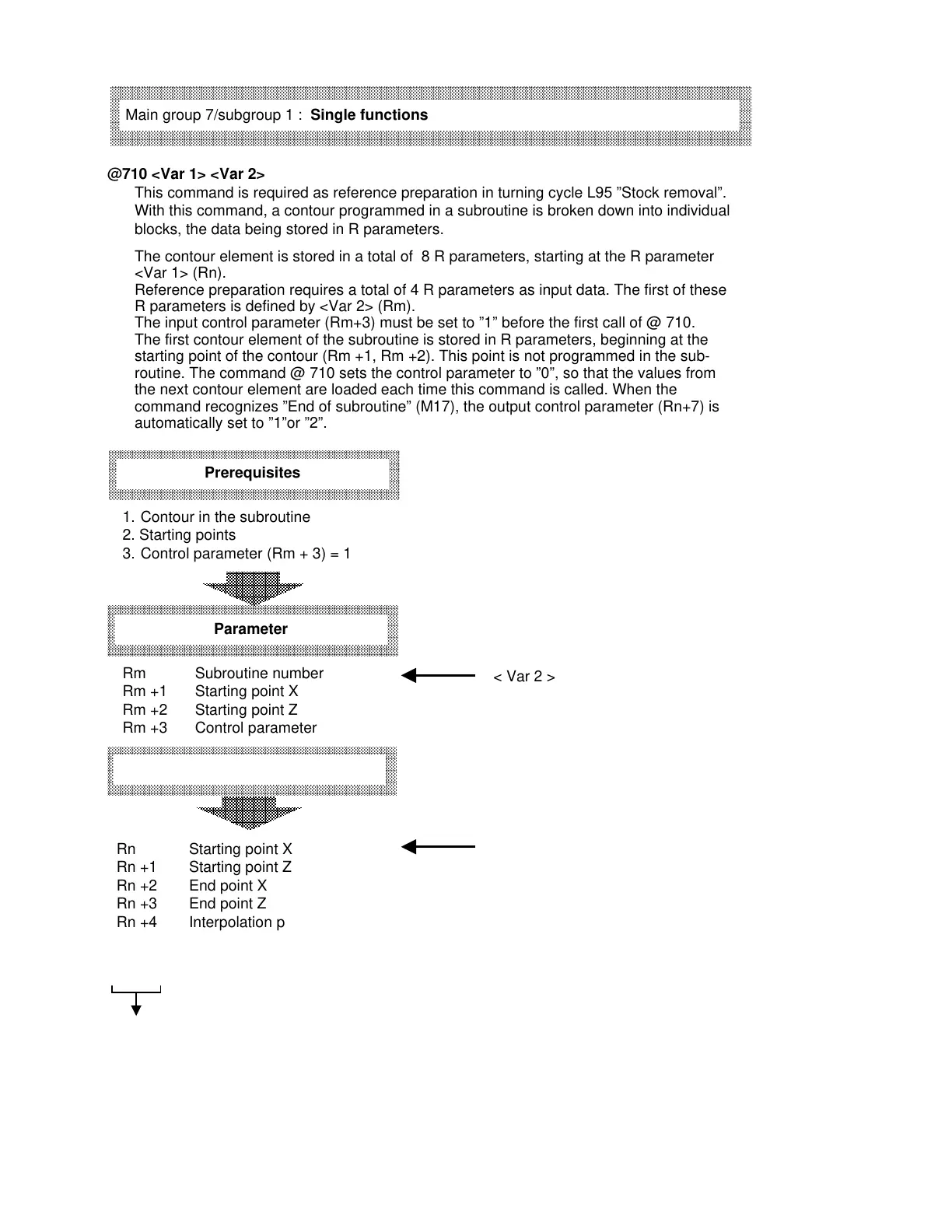

@710 <Var 1> <Var 2>
This command is required as reference preparation in turning cycle L95 ”Stock removal”.
With this command, a contour programmed in a subroutine is broken down into individual
blocks, the data being stored in R parameters.
The contour element is stored in a total of 8 R parameters, starting at the R parameter
<Var 1> (Rn).
Reference preparation requires a total of 4 R parameters as input data. The first of these
R parameters is defined by <Var 2> (Rm).
The input control parameter (Rm+3) must be set to ”1” before the first call of @ 710.
The first contour element of the subroutine is stored in R parameters, beginning at the
starting point of the contour (Rm +1, Rm +2). This point is not programmed in the sub-
routine. The command @ 710 sets the control parameter to ”0”, so that the values from
the next contour element are loaded each time this command is called. When the
command recognizes ”End of subroutine” (M17), the output control parameter (Rn+7) is
automatically set to ”1”or ”2”.
1. Contour in the subroutine
2. Starting points
3. Control parameter (Rm + 3) = 1
