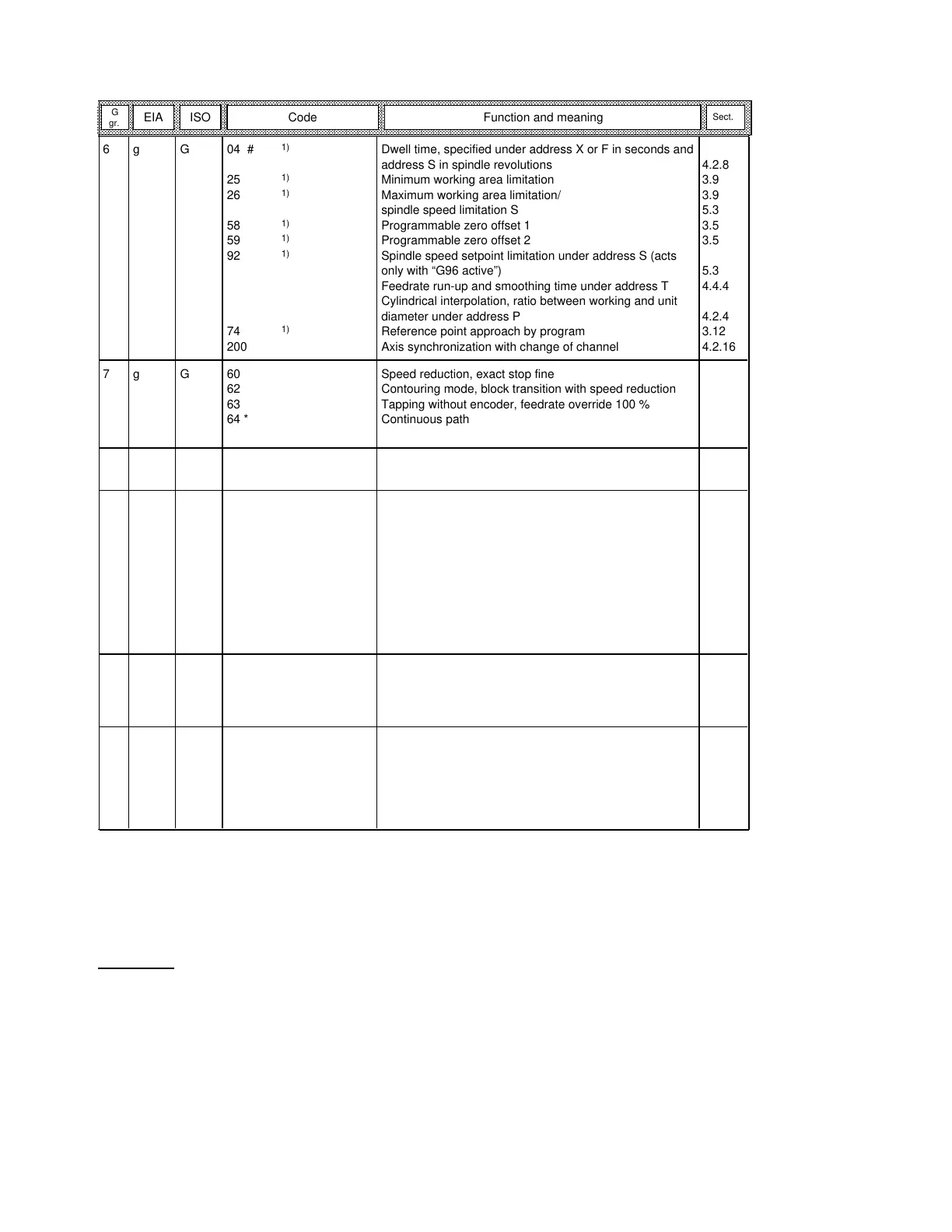

EIA ISO Code Function and meaning
Sect.
G
gr.
6 g G 04 #
1)
25
1)
26
1)
58
1)
59
1)
92
1)
74
1)
200
Dwell time, specified under address X or F in seconds and
address S in spindle revolutions
Minimum working area limitation
Maximum working area limitation/
spindle speed limitation S
Programmable zero offset 1
Programmable zero offset 2
Spindle speed setpoint limitation under address S (acts
only with “G96 active”)
Feedrate run-up and smoothing time under address T
Cylindrical interpolation, ratio between working and unit
diameter under address P
Reference point approach by program
Axis synchronization with change of channel
4.2.8
3.9
3.9
5.3
3.5
3.5
5.3
4.4.4
4.2.4
3.12
4.2.16
7g G 60
62
63
64 *
Speed reduction, exact stop fine
Contouring mode, block transition with speed reduction
Tapping without encoder, feedrate override 100 %
Continuous path control mode, block transition without
speed reduction
4.2.7
4.2.7.2
4.3.4
4.2.7.2
8g G 70
71
Input system inch (Reset position via machine data)
Input system metric (Reset position via machine data)
3.7
3.7
9 g G 80
4)
81
4)
82
4)
83
4)
84
4)
85
4)
86
4)
87
4)
88
4)
89
4)
Deselection of G81 to G89
Call cycle L81: Drilling, centering
Call cycle L82: Drilling, spot facing
Call cycle L83: Deep-hole drilling
Call cycle L84: Tapping with/without encoder
Call cycle L85: Boring 1
Call cycle L86: Boring 2
Call cycle L87: Boring 3
Call cycle L88: Boring 4
Call cycle L89: Boring 5
11.1
11.1
11.1
11.1
11.1
11.1
11.1
11.1
11.1
11.1
10 g G 68
90 *
91
Absolute dimensioning along shortest path (rotary axis
only)
Absolute dimensioning
Incremental dimensioning
4.1
3.3
3.3
11 g G 94
95 *
96
97
195
Feedrate under address F in mm/min or inch/min
Feedrate under address F in mm/rev or inch/rev
Feedrate under address F in mm/rev or inch/rev and
constant cutting speed under address S in m/min or ft/min
Cancel G96, store last set speed
Feedrate in mm/rev referred to rotary axis
4.2.6
4.2.6
4.2.6
4.2.6
4.2.6
1
) No further functions must be written in this block
2) Extended address possible (e.g. S1=.., M6=.., ..., see Section 2.4)
3) Other addresses are selectable (A, B, C, E, U, V, W and Q)
4) G80 to G89 cannot be used in the 3rd subroutine level
5) The stated values depend on the input and position control resolution (see Section 12)
# Effective block by block, all other modal
* Reset position (basic position after reset, MO2/M30, after switching on the control)
( ) Applies to SINUMERIK 880 GA2 only
13–6 © Siemens AG 1991 All Rights Reserved 6ZB5 410-0HD02
