3.5 Zero offset G54...G59
Action b
Block-by-block cancellation of:
• settable zero offset coarse and fine (G54 to G57)
• programmable zero offset (G58 and G59)
• external zero offset (from PLC)
• DRF offset
• PRESET offset

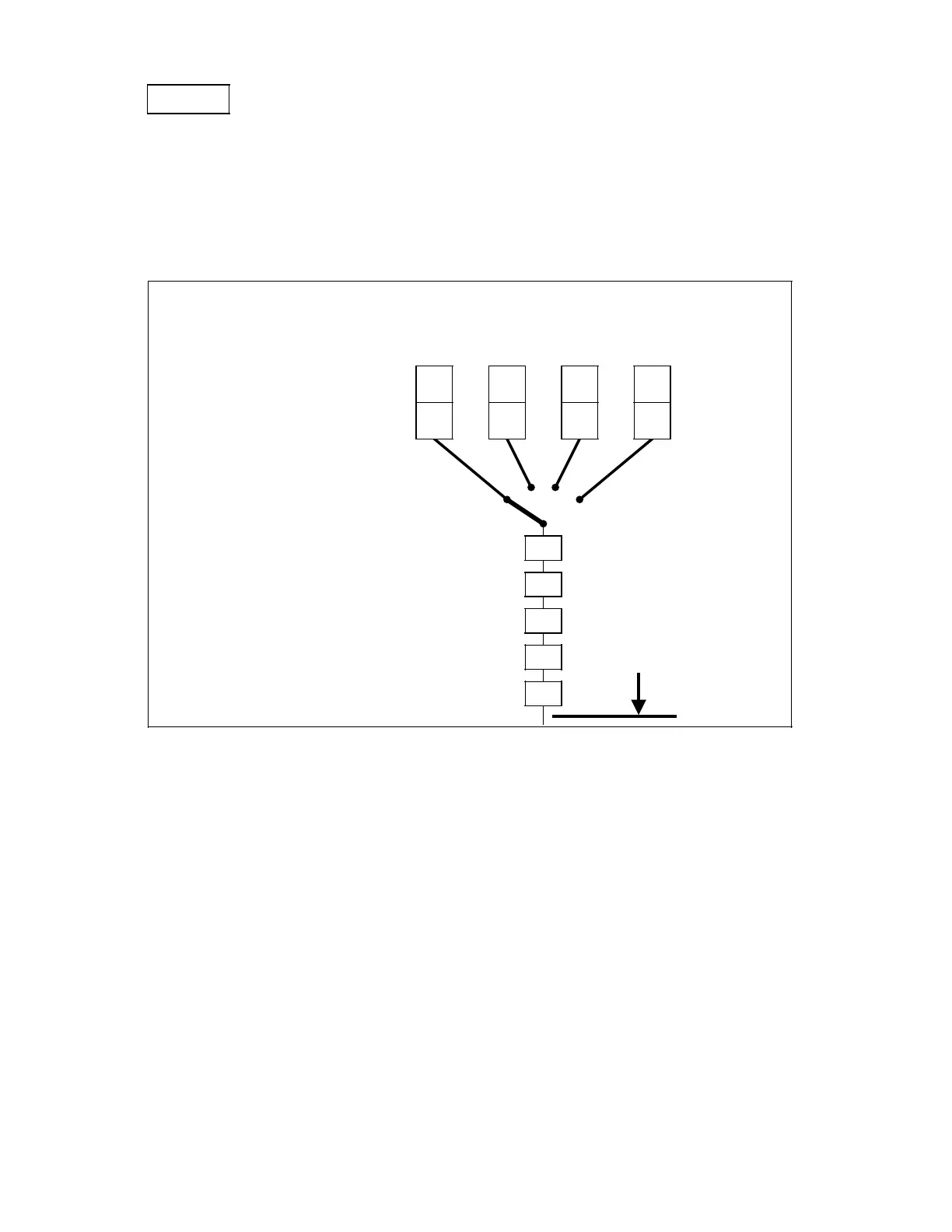

Cancellation of zero offsets
1st
G54
2nd
G55
3rd
G56
4th
G57
settable zero offset
Fine setting
Coarse setting
1st programmable ZO (G58)
2nd programmable ZO (G59)
External ZO (from PLC)
DRF offset (with handwheel)
PRESET offset
Suppression with
G53 (@706)
Reference to machine zero
N30 D0
L
F
(Cancellation of tool offset)
N35 G53 X . . . Y . . .
L
F
(Cancellation of all zero offsets and travel to position in machine
system)
