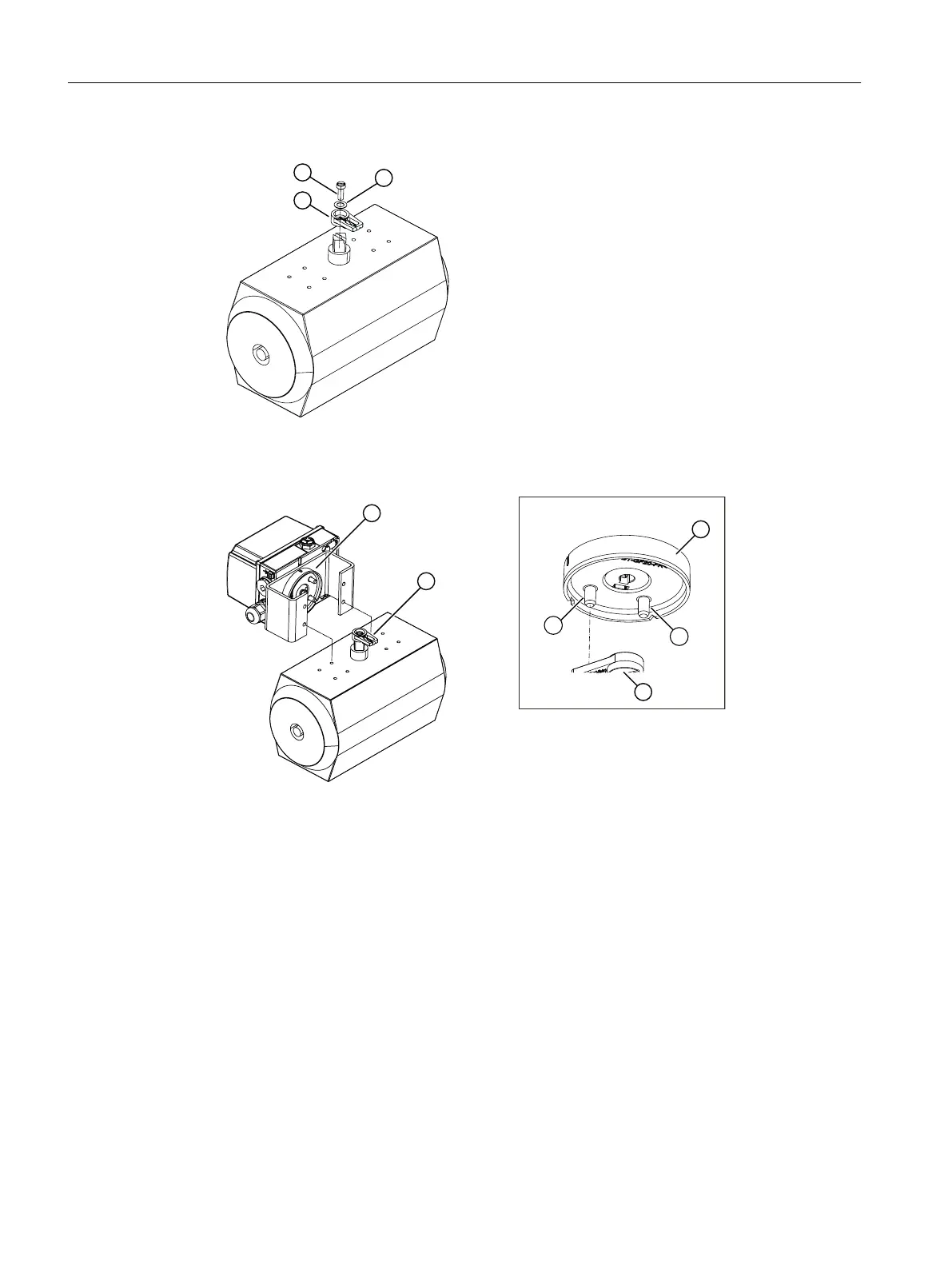

8. Tighten the carrier using the cylinder head screw and the washer .
Figure4-9 Carrier
9. Place the positioner and the mount on the actuator carefully. One of the two pins of the
coupling wheel must 󹪝t in the carrier when you do this.


Figure4-10 Orientation of mount
When using the stainless steel coupling (article number TGX: 16300-1556): Place the
positioner and the mount on the actuator carefully. Place the stainless steel coupling on the
actuator shaft.
Installing/mounting
4.3Mounting to part-turn actuator
SIPART PS100
26 Operating Instructions, 06/2023, A5E50188938-AF
