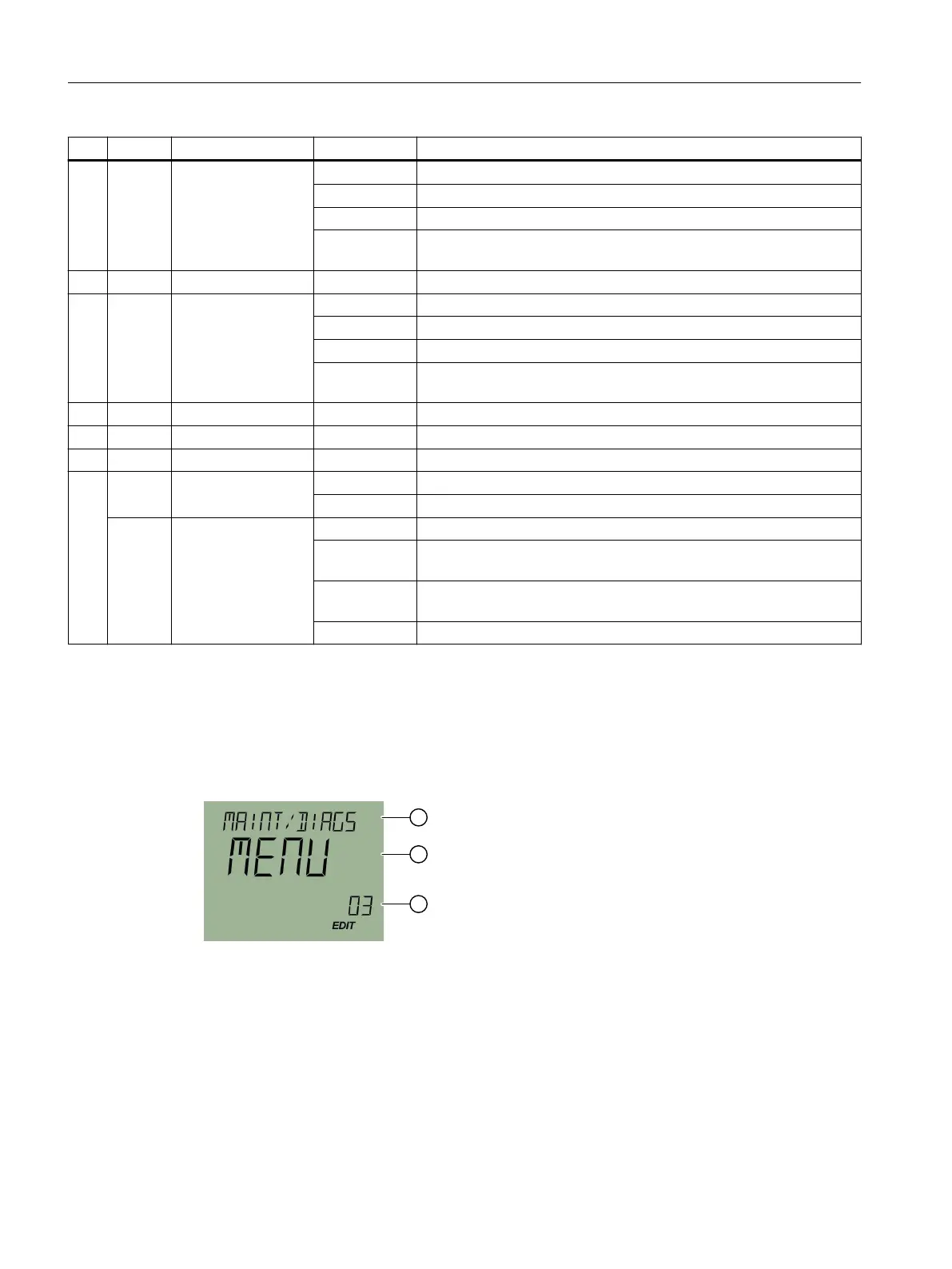

Siemens SIPART PS100 - MAINT;DIAGS [03]

 ③ ① ② Meaning
*) 04 CLOSE TYPE FAST Sets the valve to precise behavior at endstop.
TIGHT Sets the valve to behavior with maximum actuating force at endstop.
SLOW Sets the valve to precise behavior at endstop.
LIMIT Limits the control range to the value set in the parameter "CLOSE
LIMIT" [05].
*) 05 CLOSE LIMIT 0.0 ... 100.0 Sets the value in % up to which the valve closes.
*) 06 OPEN TYPE FAST Sets the valve to precise behavior at endstop.
TIGHT Sets the valve to behavior with maximum actuating force at endstop.
SLOW Sets the valve to precise behavior at endstop.
LIMIT Limits the control range to the value set in the parameter "OPEN LIMIT"
[07].
*) 07 OPEN LIMIT 0.0 ... 100.0 Sets the value in % up to which the valve opens.
*) 08 DBAND LIMIT 0.1...3.0 Sets the maximum range of the deadband in %.
*) 09 DBAND VALUE x.x Displays the current value of the deadband.
 10 LEAKAGE COMP ON Enables the leakage compensation.
OFF Disables the leakage compensation. The function is reset by disabling.
11 MOUNTING AUTO Sets the positioner to mounting to standard actuator.
LEVER Sets the positioner to mounting on linear actuator, carrier pin moun‐
ted on lever.
STEM Sets the positioner to mounting to linear actuator, carrier pin mounted
on spindle.
TURN Sets the positioner to mounting to part-turn actuator.
*) visible when "AUTO" is selected in "QUICK START [01] > APPLICATION [07]".
8.4 MAINT/DIAGS [03]
Service menu



Parameter assignment and addressing
8.4MAINT/DIAGS [03]
SIPART PS100
46 Operating Instructions, 06/2023, A5E50188938-AF
