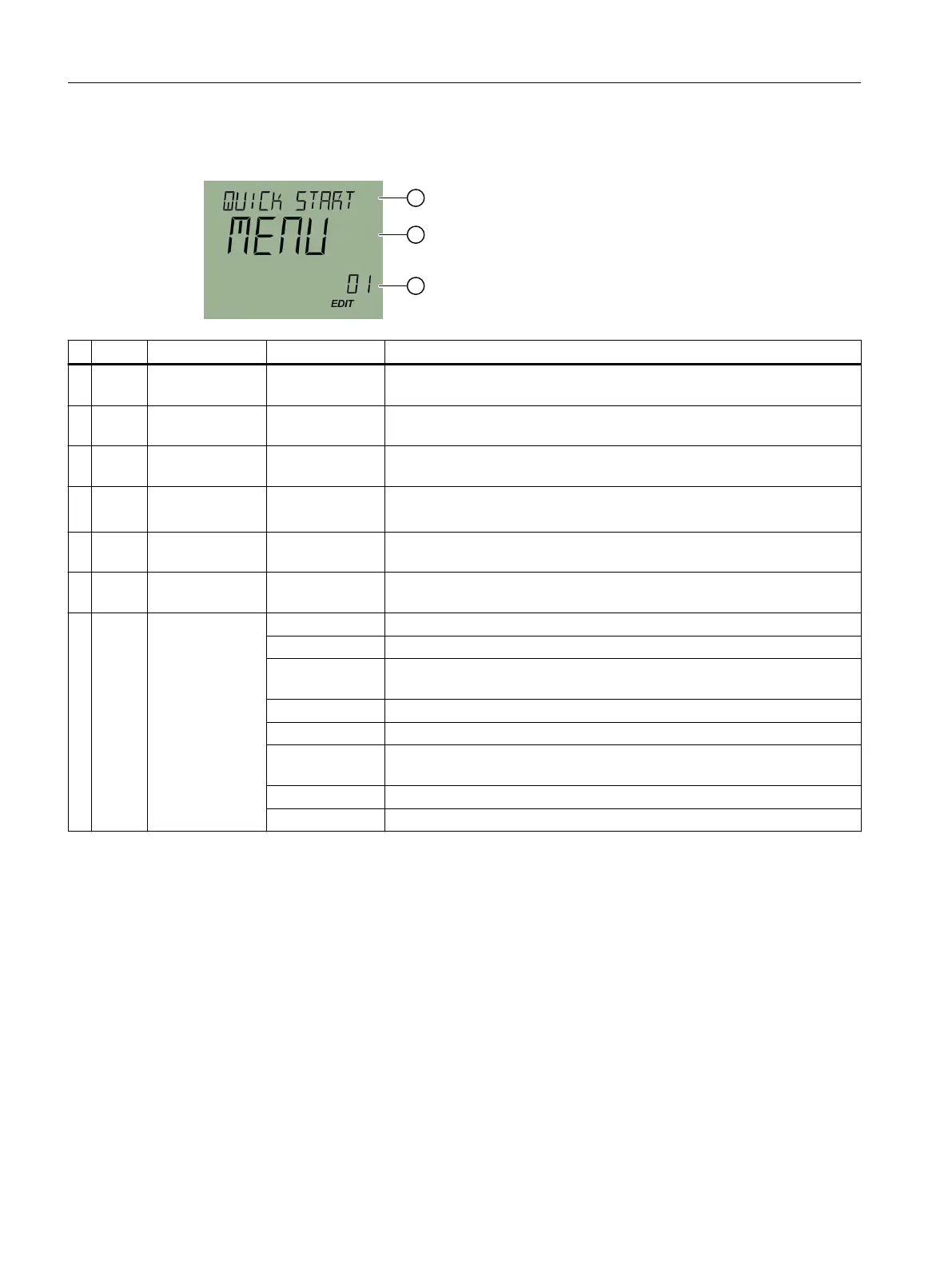

8.2 QUICK START [01]
③ ① ② Meaning
01 AUTO INIT WIZ Enables automatic initialization of the valve. The end positions are deter‐
mined automatically.
02 MANUAL INIT WIZ Provides a step-by-step procedure for manual initialization of the valve.
Dene the end positions manually.
03 LEAKAGE TEST WIZ Enables the determination of the pneumatic leakage. The result is a stroke
movement as a %/minute caused by leakage.
04 SPEED TEST WIZ Speed test
Enables the determination of travel times in seconds.
05 OVERSHOOT WIZ Enables the determination of an overshoot as a % in relation to the total
stroke. An overshoot of less than 3% is displayed as "Ok".
1)
06 VALVE TYPE WIZ Sets the valve type. If "NONE" is displayed, no valve type is selected. When
a valve type is selected, the positioner is adapted to this valve type.
2)
07 APPLICATION Selection of the application prole
AUTO Enables the default setting, suitable for all applications.
TIGHT Activates a control of the valve moves with maximum actuating force in the
end positions (close tight).
FAST Enables dynamic control of the valve, optimized to a fast control response.
EXACT Enables precise control of the valve.
ONOFF Enables an open/closed behavior of the valve. The valve moves to the end
positions with maximum actuating force (close tight).
BOOST Enables control of the valve with pneumatic booster.
SMALL Enables control of a small valve with damped control response.
WIZ = wizard
1)
visible if valve types have been stored at the factory.
2)
not visible if a valve type was selected for "VALVE TYPE" [06].
Parameter assignment and addressing
8.2QUICK START [01]
SIPART PS100
44 Operating Instructions, 06/2023, A5E50188938-AF
