4.10 Power System Data
Power System
Data 1
In the window for Power System Data 1, important settings are entered that relate to
the power system and primary equipment connected to the device. The settings in-
clude:
G system data such as frequency, voltage, etc.
G data for the main current transformers and voltage transformers,
G circuit breaker or primary switch-gear information.

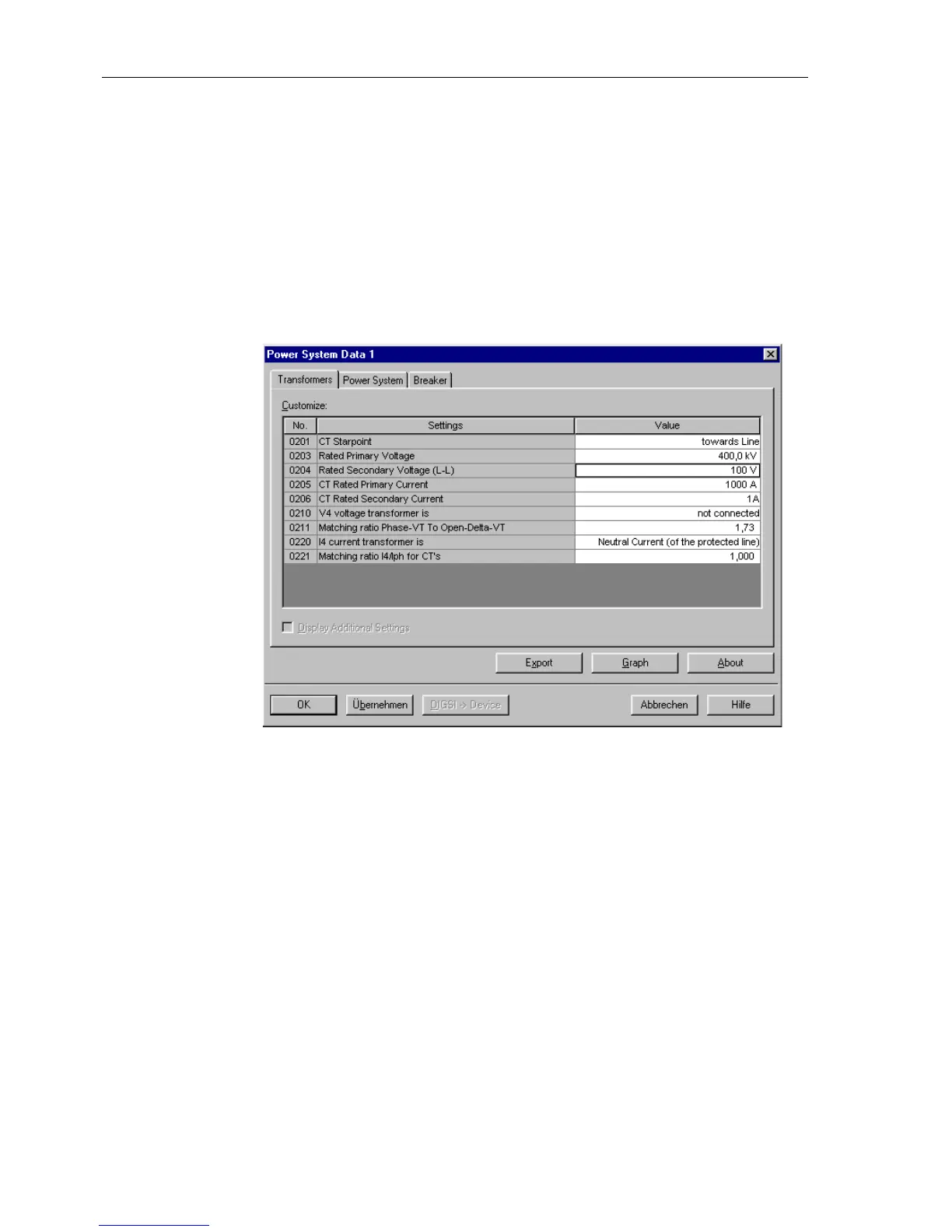

Figure 4-21 DIGSI
®
4 setting the power system data — example
Power System
Data 2
Power System Data 2 are part of the setting groups, which can be switched over dur-
ing operation (see chapter 4.11). These include for example:
G Primary Operating Voltage
G Primary Operating Current
G Characteristic Data of the protected object etc.
To Next Page
