5.2.5 Transferring Metered Values
The transferring of metered values from the buffer of a SIPROTEC
®
-device or substa-
tion controller may be performed both cyclically and/or by external polling.
In the configuration matrix, click on Options and then on Restore Metered Val-
ues. A dialog box, which contains a register for editing the individual values for cyclical
transferring will open.
Cyclical
Restoration
Here, the user may specify the source of the cyclical trigger for the transfer. Also, the
user may set the time interval and determine whether the metered value buffer should
be deleted after transfer to the SIPROTEC
®
-device has taken place.

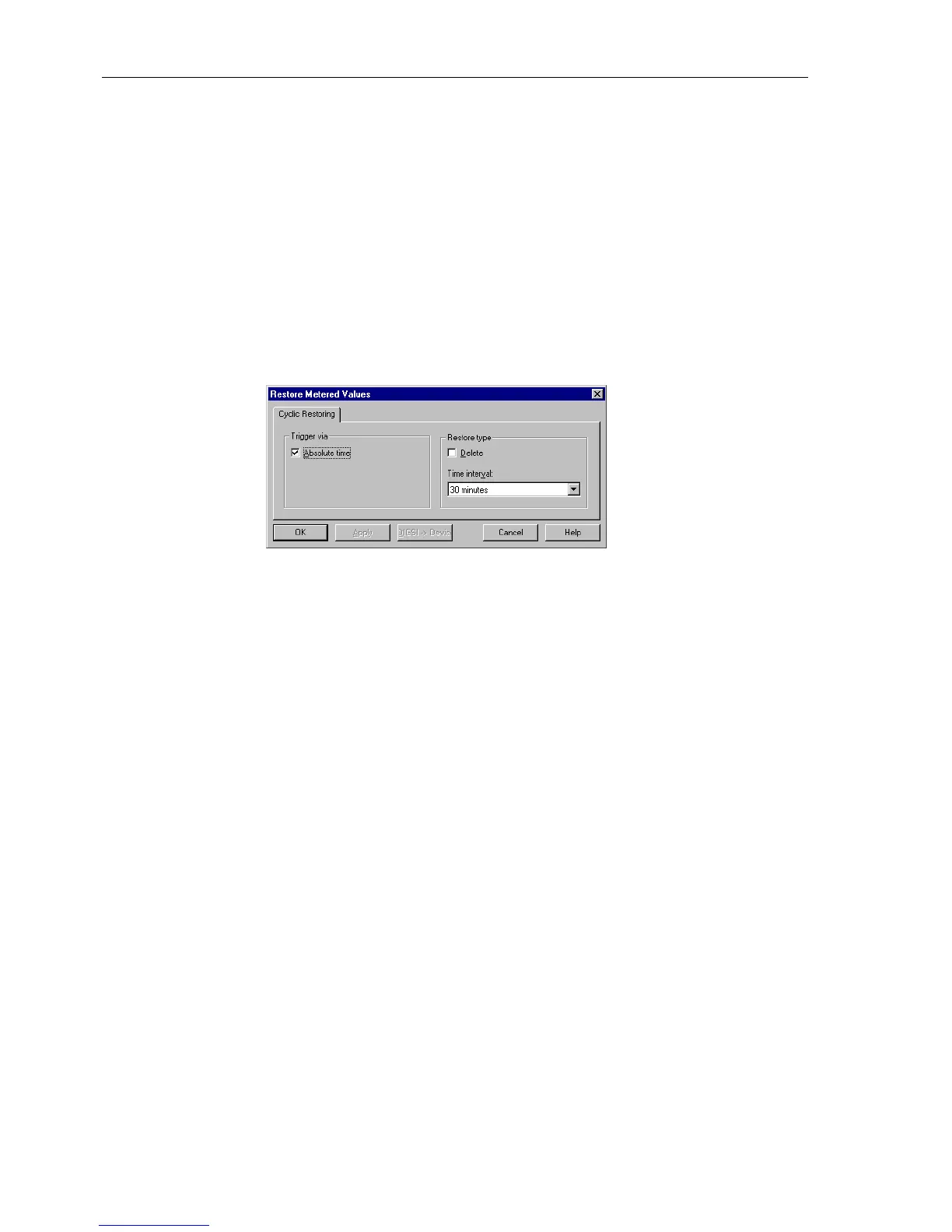

Figure 5-32 Dialog Box to Restore Metered Values and Program Cyclical Restoration
In the current version of DIGSI
®
4, triggering occurs based on the programmed
Absolute time.
