4.7 Configuration of the Scope of Device Functions
The individual devices within the SIPROTEC
®
4 family can be supplied with various
protective functions. The ordering number of the device determines the available func-
tions. The functions are specified more precisely through the process of enabling and
disabling in the Device Configuration area of the settings.
To specify the active functions using DIGSI
®
4:
• Double click on Device Configuration in the data window.
• Click on the individual fields and select the functions to be enabled.

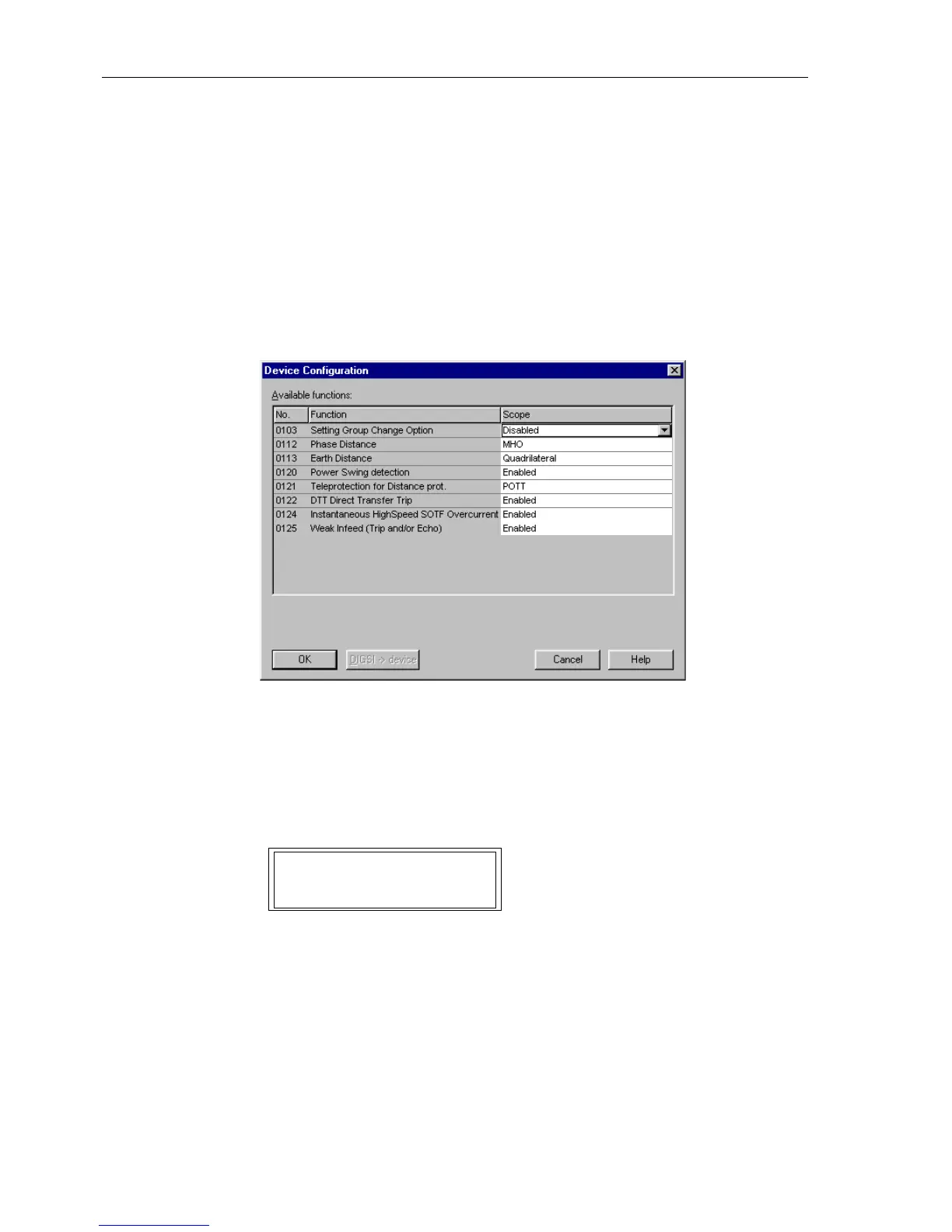

Figure 4-15 DIGSI
®
4, setting the device configuration — example
The device configuration can be viewed from the operator control panel on the
SIPROTEC
®
4 device.
• In the main menu, select Settings → Device Config.
.
Figure 4-16 Viewing device configuration from the operator control panel — example
DEVICE CONFIG. 07/16
--------------------
0112 Phase Distance
Quadrilateral
