SIPROTEC

4 Devices

4-32

7SA6 Manual

C53000-G1176-C156-2

To set the framing and baud rate:

• Double click on Serial Ports in the data window and enter the specific settings

in the window that follows.

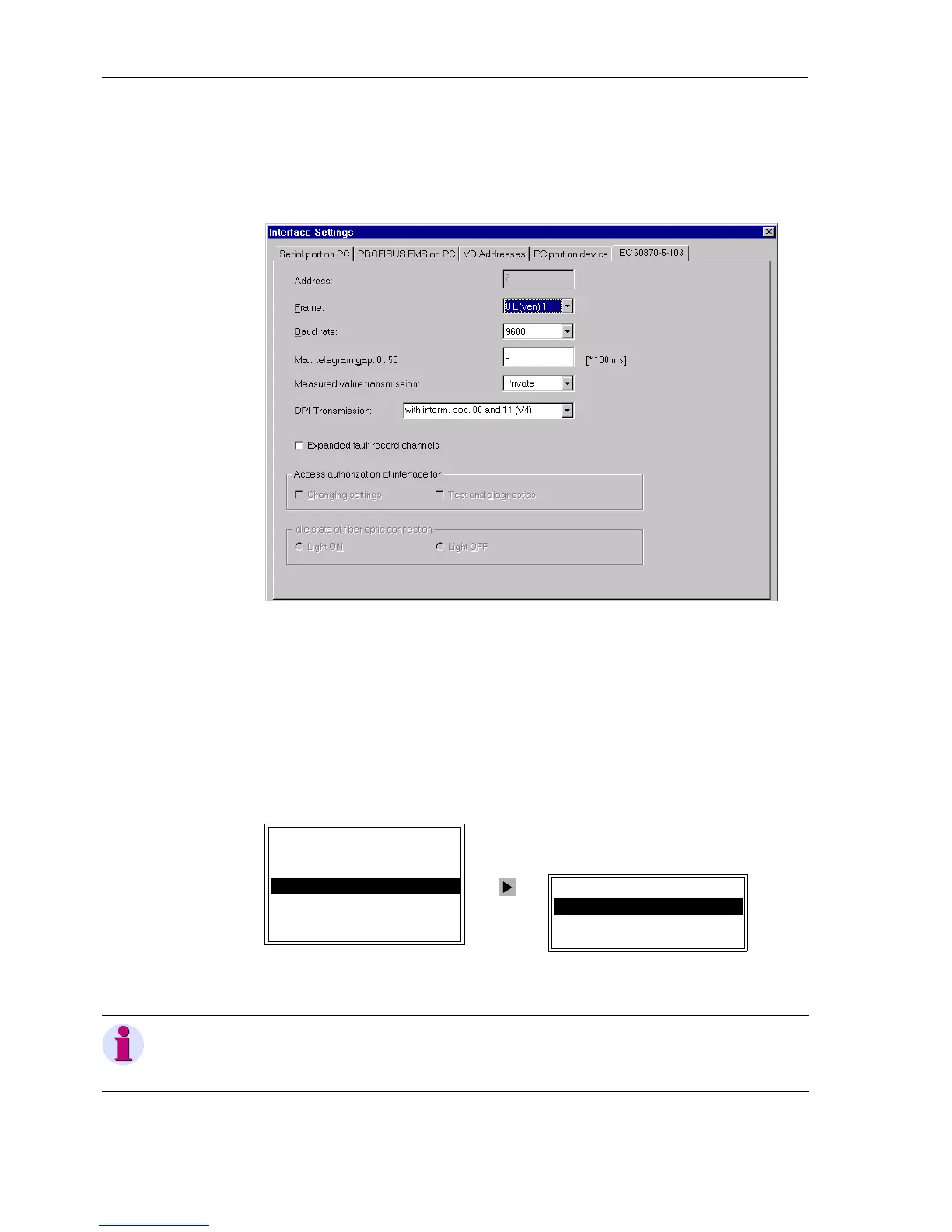

Figure 4-28 DIGSI

4, Interface Settings Window

• Read-out on the

Operator Control Panel

The interface settings can be checked using the SIPROTEC

4 device operator con-

trol panel.

In the main menu, select Settings → Setup/Extras → Serial Ports → follow-

ing menus.

Figure 4-29 Read-out of serial interface settings from the operator control panel, example

SERIAL PORTS 01/03

---------------------

Front Port –> 1

System Port –> 2

Service Port –> 3

SETUP/EXTRAS 03/06

---------------------

Date/Time –> 1

Clock Setup –> 2

Serial Ports –> 3

Device–ID –> 4

MLFB/Version –> 5 5

Contrast –> 6

Note:

The serial interface for the connection of a time control device is described in the Sub-

section 4.14, Time Synchronization.
