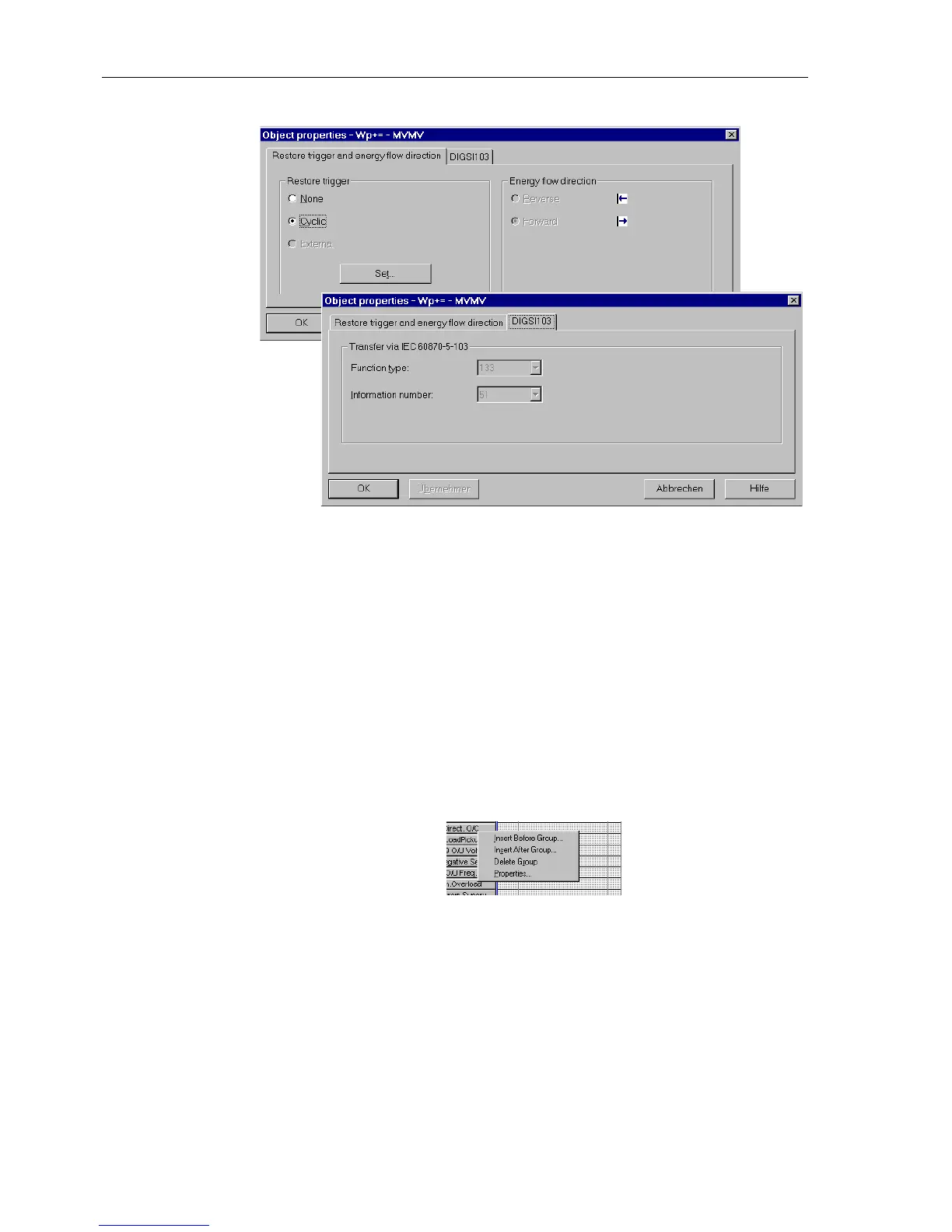

Figure 5-21 Information Properties Example for Information Type “Metered Value of
Measured Value” (MVMV)
Entering Your Own
Information
The available information in the configuration matrix is determined by the device type
and the configured functional scope. If necessary, you may extend the configuration
matrix to information groups or individual information defined and entered by yourself.
Such user defined groups and information may be deleted at any time, in contrast to
predefined groups and information.
In order to insert a new information group, click on a cell within a group that is next to
the location where the new group should be located. After pressing the right mouse
button, a context menu appears (Figure 5-22).
Figure 5-22 Dialogue box to insert a new information group —example
If one of the first two alternatives is selected, a second dialogue box opens, in which
the name of the new information group is entered, in short text (display text) and in
long text (Figure 5-23). After clicking OK, the new group is positioned.
