Configuration
5-53
7SA6 Manual
C53000-G1176-C156-2
Proceed as follows:
• If you saved the default display as a template and want to use it as basis for the
control display, open the template via Display → Template → Open... into an
empty control display.
• As the switching devices in the bay are to be controlled via the feeder control dis-
play, you need to make the respective device controllable for the operator. Double
click on the device in the active control display (see Figure 5-50). Then select Op-
tions devices in the active dialog window and highlight Object operator-
controllable.
• In addition to this, determine the device which should be controlled first after calling
the control display in the SIPROTEC
®
device. For this, select the option Default
object. Confirm your setting with OK.
.

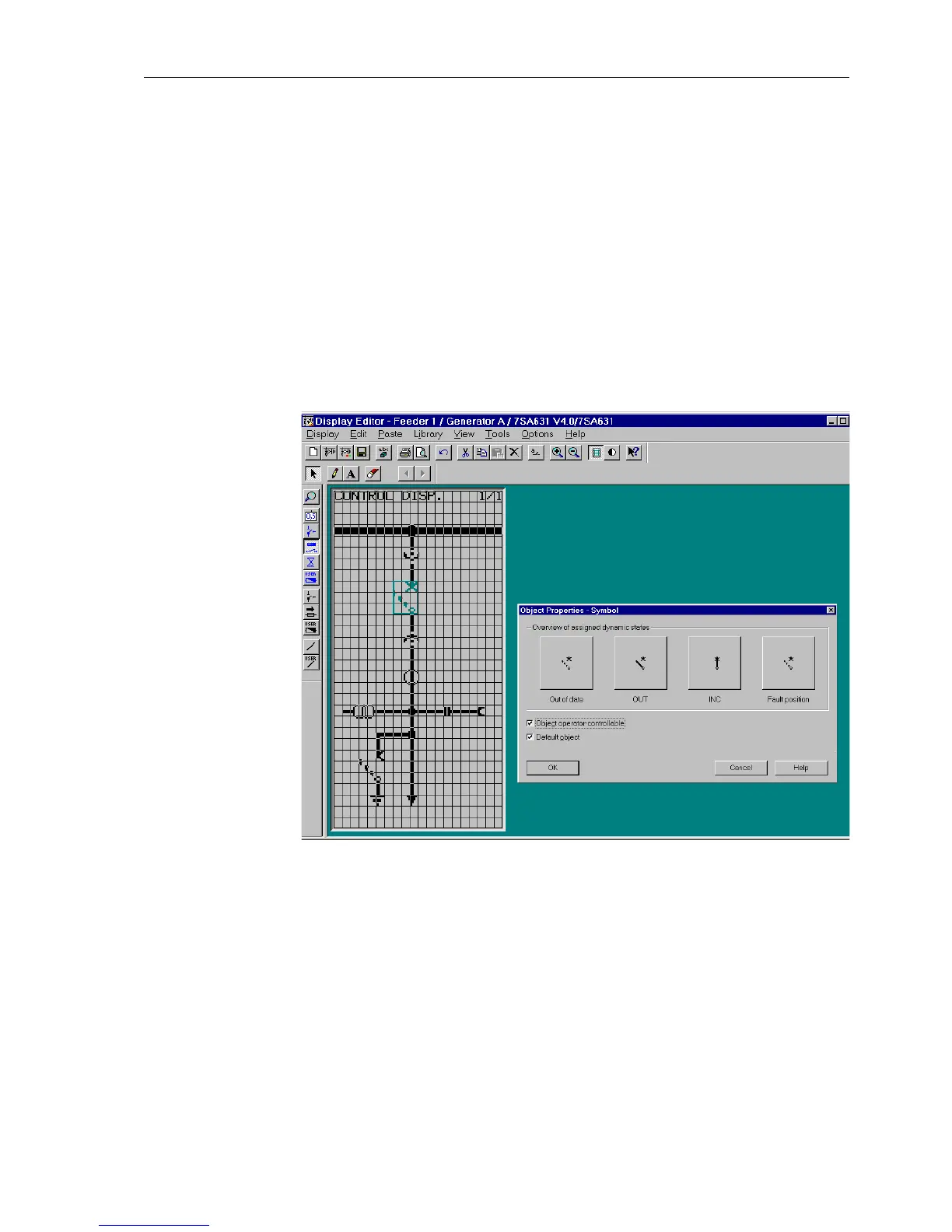

Figure 5-50 Procedure to make devices operator-controllable and get them
offered first for switching
