Siemens siprotec 7SA6 User Manual

Functions
6-200 7SA6 Manual
C53000-G1176-C156-2
Depending on what the external recloser device requires, the three single-pole outputs
(F.No
512, 513, 514) may also be combined to one “single-pole tripping” output; the
F.No
515 provides the “three-pole tripping” signal to the external device.
If only three-pole reclosure takes place, general starting (F.No
501,ifrequiredbythe
external reclosure device) and the trip signals (F.No
511) from 7SA6 (see figure 6-
107) usually suffice.

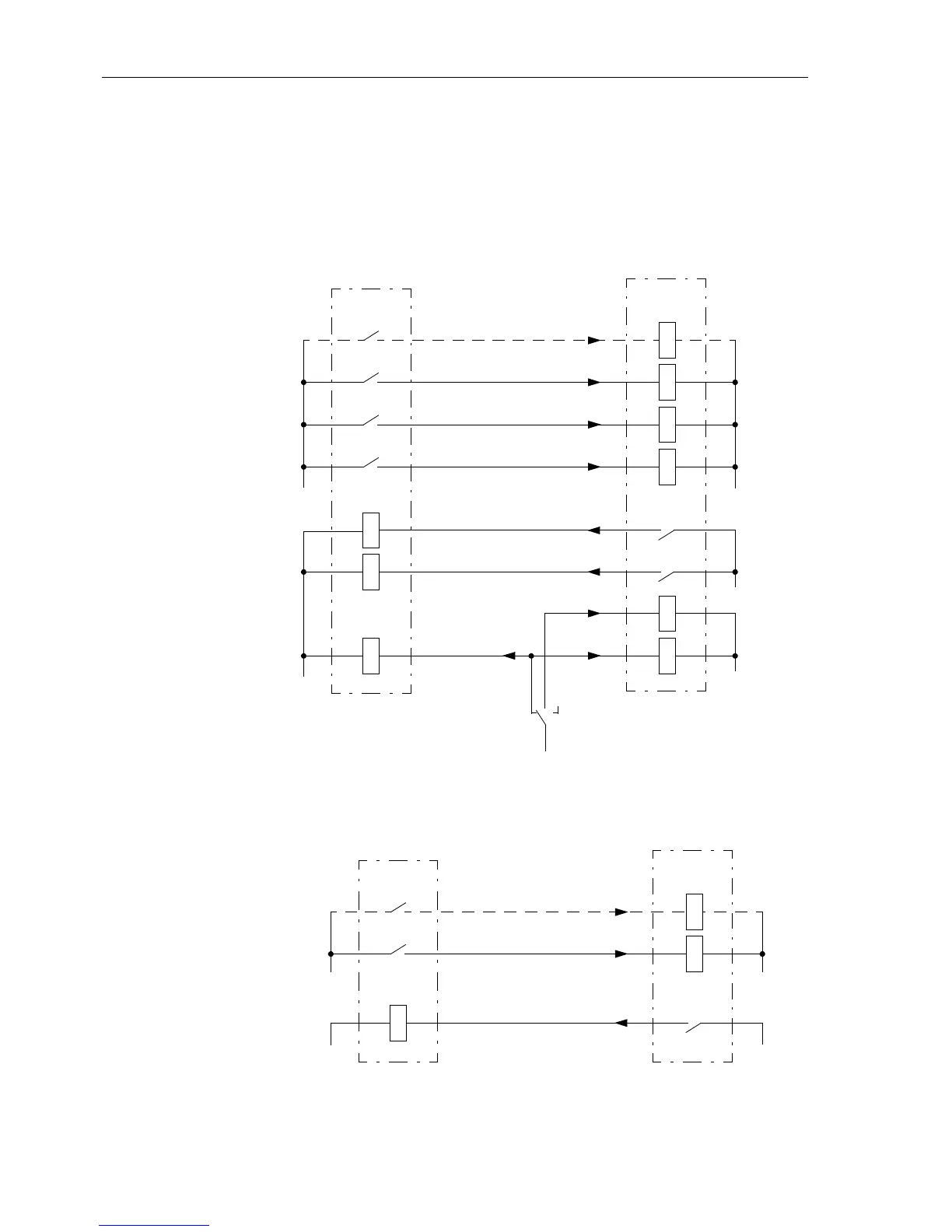

Figure 6-106 Connection example with external reclosure device for 1-/3-pole reclosure with
mode selector switch
Figure 6-107 Connection example with external reclosure device for 3-pole reclosure
7SA6
L+
external
reclosure–device
1-pole
3-pole
1-/3-pole
L+
Selector
switch
L–
L–
L+
L–
Relay PICKUP
Relay TRIP 3ph.
Relay TRIP 1pL1
Relay TRIP 3ph.
Relay TRIP 1pL2
Relay TRIP 3ph.
Relay TRIP 1pL3
>Enable ARzones
>1p Trip Perm
>Only 1ph AR
7SA6
L+
external
reclosure–device
L–
L–
L+
Relay PICKUP
Relay TRIP
>Enable ARzones
