Functions
6-218 7SA6 Manual
C53000-G1176-C156-2

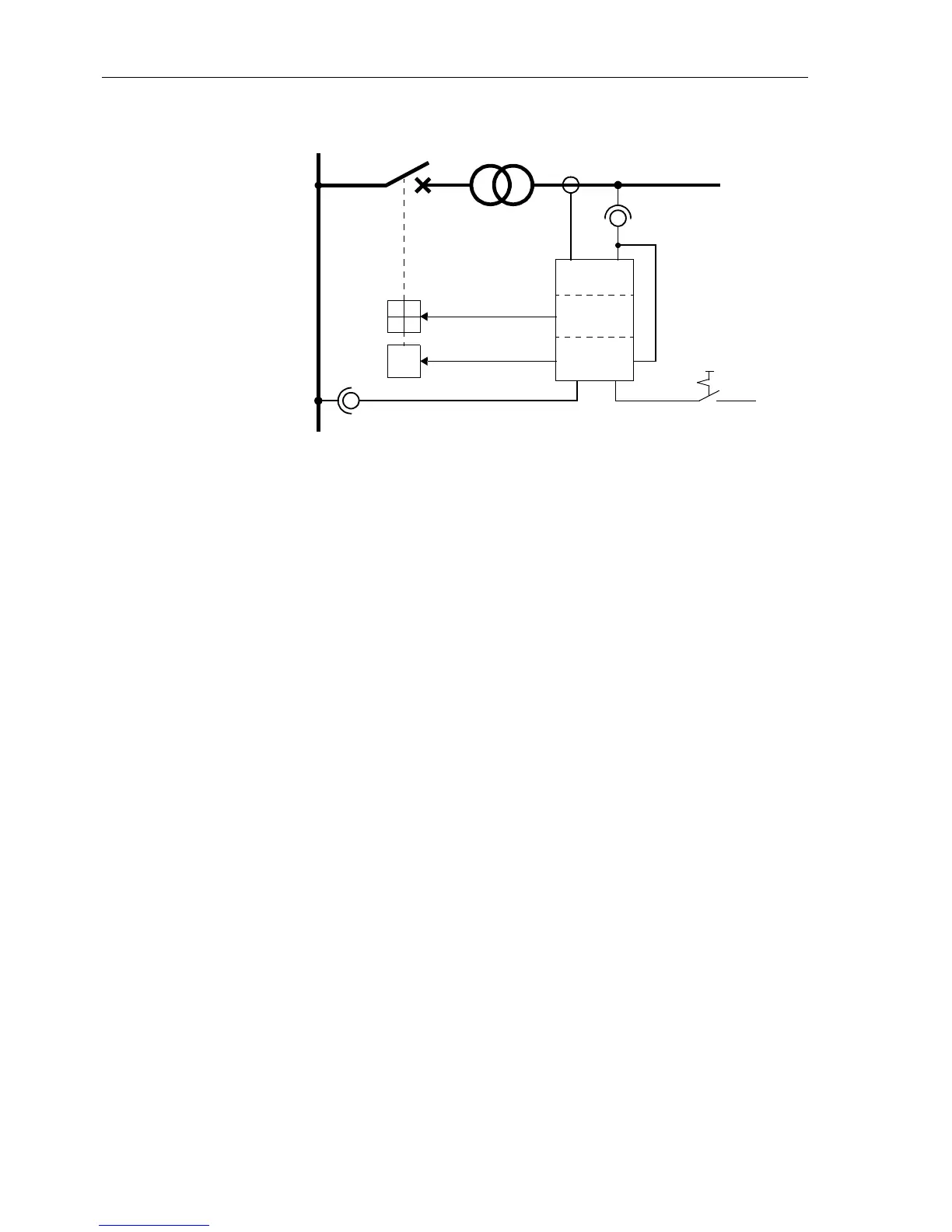

Figure 6-113 Synchronism check across a transformer
Furthermore, switching is possible with synchronous or asynchronous system condi-
tions (
3510 Op.mode with AR / 3530 - Op.mode with MC - Operating Mode
with ... : with consideration of CB closing time
-> selects asynchro-
nousclosing mode). Synchronousswitchingmeans that the closing command is given
as soon as the critical values (voltage magnitude difference
Max. Volt. Diff,
angle difference
Max. Angle Diff, and frequency difference Max. Freq. Diff)
lie within the set tolerances. For switching with asynchronous system conditions, the
device calculates the correct timing of the closing command from the angle difference
Max. Angle Diff
and the frequency difference Max. Freq. Diff such that the
voltages on the bus-bar and the feeder circuit have exactly the same phase relation-
ship at the instant that the circuit breaker primary contacts close. For this purpose the
circuit breaker closing time must be programmed into the relay. Different frequency
limit thresholds apply to switching under synchronous and asynchronous conditions.
If closing shall be permitted exclusively under synchronous system conditions, the fre-
quency difference limit for this condition can be set. If closing is permitted under syn-
chronous as well as under asynchronous system conditions, a frequency difference
below 0.01 Hz is treated as a synchronous condition, a higher frequency difference
value can then be set for closing under asynchronous system conditions.
Thesynchronismcheckfunctiononlyoperateswhenitisrequestedtodoso.Thisre-
quest can come from the internal automatic reclosure function, from the manual clos-
ing command or from an external automatic reclose relay via binary input.
The synchronism check function gives permission for passage of the closing com-
mand. Optionally, a closing command my be issued by the synchronism check func-
tion. This can directly control the closing coil of the circuit breaker, or be connected in
series with the automatic reclose command.
The time window during which synchronism check is permitted is limited by an adjust-
able synchronous monitoring time. Within this period, the programmed conditions
must have been met otherwise closing permission will not be given. A new synchro-
nism check sequence requires a new request.
The device outputs messages if, after a request to check synchronism, the conditions
for release are not fulfilled, i.e. if the absolute voltage difference
Max. Volt. Diff,
the absolute frequency difference
Max. Freq. Diff, or the absolute phase angle
7SA6
Bus-bar
TRIP
CLOSE
U
line
U
bus
I
Protection
Sync
L+
Transformer
Discrepancy
switch
