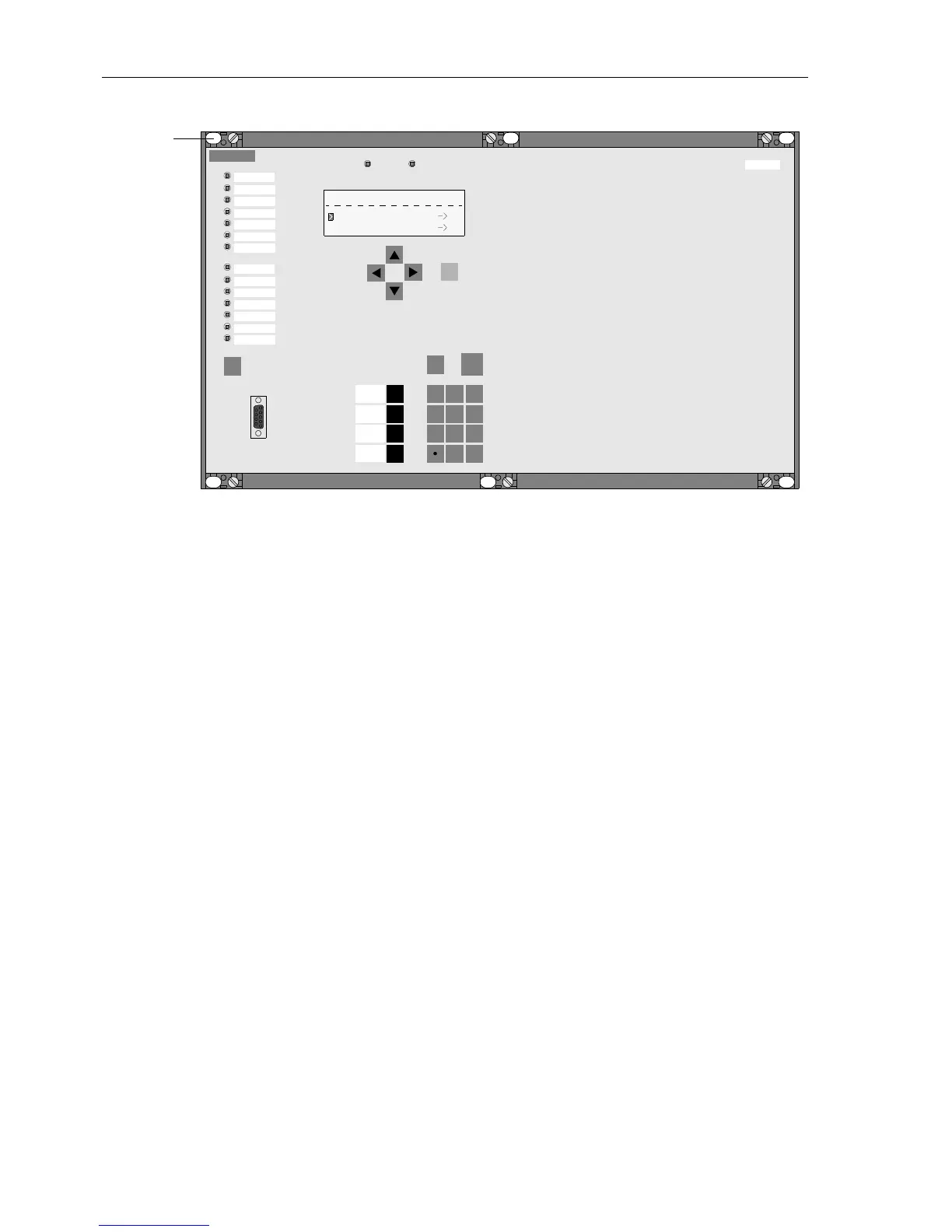

Figure 8-3 Panel mounting of a 7SA612 with a four-line display (housing width
1
/
1
)asanexample
Rack Mounting and
Cubicle Mounting
In housing sizes
1
/
3
(Figure 8-4) and
1
/
2
(Figure 8-5) there are 4 covers and 4 securing
slots, with the housing size
1
/
1
(Figure 8-6) there are 6 covers and 6 securing slots
available.
To install the device in a frame or cubicle, two mounting brackets are required. The
ordering codes are stated in Appendix A, Section .
G Loosely screw the two mounting brackets in the rack with four screws.
G Remove the 4 covers at the corners of the front cover, for size
1
/
1
the 2 covers lo-
cated centrally at the top and bottom also have to be removed. The 4 respectively.
6slotsinthemountingflangearerevealedandcanbeaccessed.
G Fasten the device to the mounting brackets with four or six screws.
G Replace the four or six covers.
G Tighten the mounting brackets to the rack using eight screws.
G Connect the ground on the rear plate of the device to the protective ground of the
rack. Use at least one M4 screw for the device ground. The cross-sectional area of
the ground wire must be greater than or equal to the cross-sectional area of any oth-
er control conductor connected to the device. Furthermore, the cross-section of the
ground wire must be at least 2.5 mm
2
.
