Hardware and Connections
2-33
7SA6 Manual
C53000-G1176-C156-2

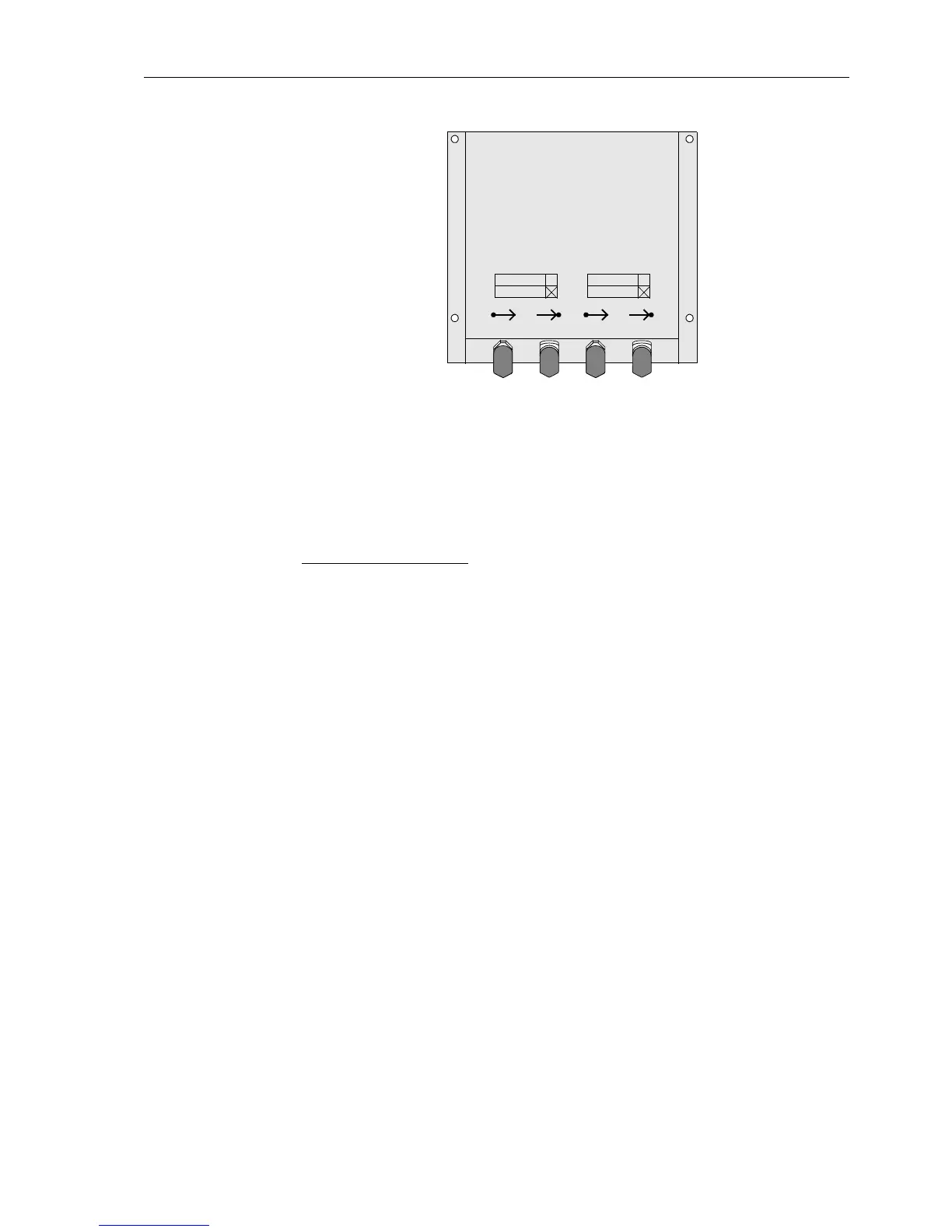

Figure 2-30 Inclined housing with fibre-optic connections (channel D and E fitted)
Connections to
Optical
Communication
Interfaces with
FC–Connectors
Optical connector type: FC–connector
Fibre type: Monomode
9/125 µm,
Wavelength: λ = 1300 nm (approximately)
Allowable bending radius:
For indoor cable r
min
=5cm(2in)
Foroutdoorcable r
min
=20cm(8in)
Kanal B
Kanal D
Kanal C
Kanal E
