Hardware and Connections
2-39
7SA6 Manual
C53000-G1176-C156-2

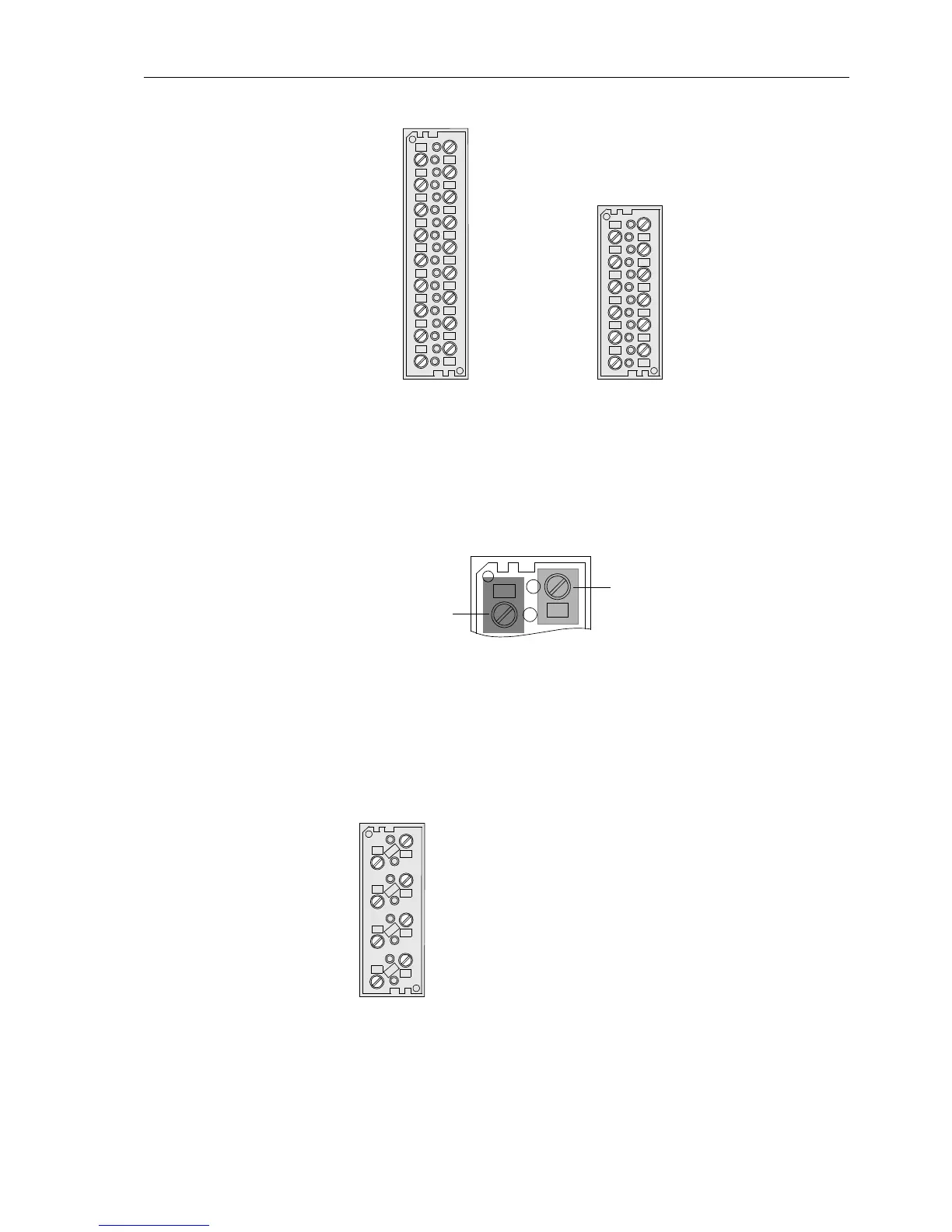

Figure 2-35 Connection plug module with screw terminals for voltage connections — rear
view
Figure 2-10 shows an example of the allocation of an individual screw terminals to
their terminal numbers.
Figure 2-36 Allocation of screw terminal to terminal number — example
Terminal Block for
Current
Connections
There is one version of a terminal block for current connections to a 7SA6. The termi-
nal block is illustrated in Figure 2-11.
The correlation between the terminals and their terminal numbers is the same for the
current terminals as shown in Figure 2-10.
Figure 2-37 Terminal block of screw terminals for current connections — rear view
