Appendix
A-557SA6 Manual
C53000-G1176-C156-2

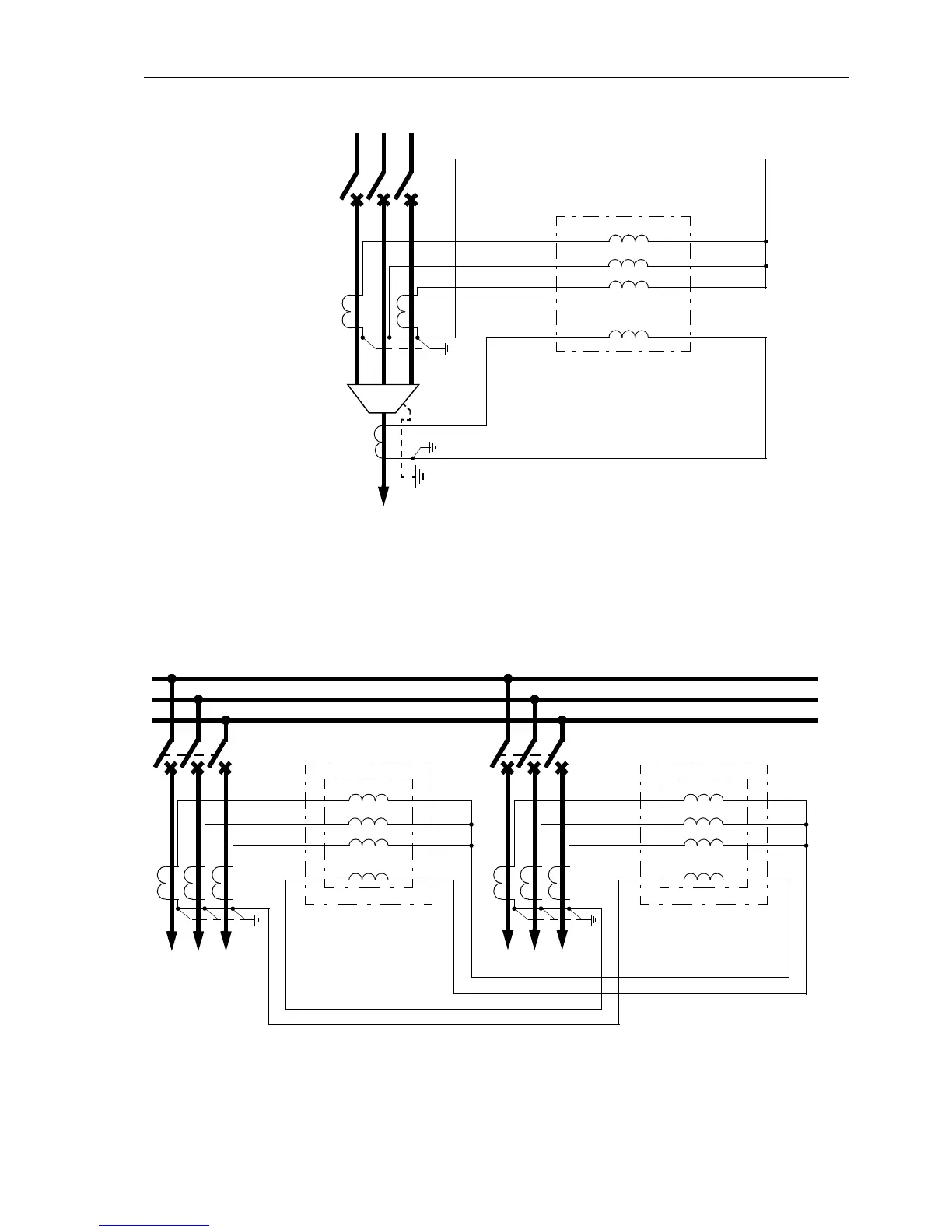

Figure A-35 Current connections to two current transformers with separate earth current
transformer (summation current transformer or cable core balance current
tranformer) — not permitted for earthed systems
Figure A-36 Current connections to three transformers with a starpoint connection to the current transformer set
of the corresponding parallel line (for parallel line compensation)
Important! Cable shield grounding must be done on the cable side!
Note: Change of Address 0201 setting changes polarity of 3I
0
Current
Input, i.e. terminal Q7 must be connected to that CT terminal
pointing in the same direction as the starpoint of the phase current
CTs (towards “Line side” in this diagram)
