Appendix
A-64 7SA6 Manual
C53000-G1176-C156-2

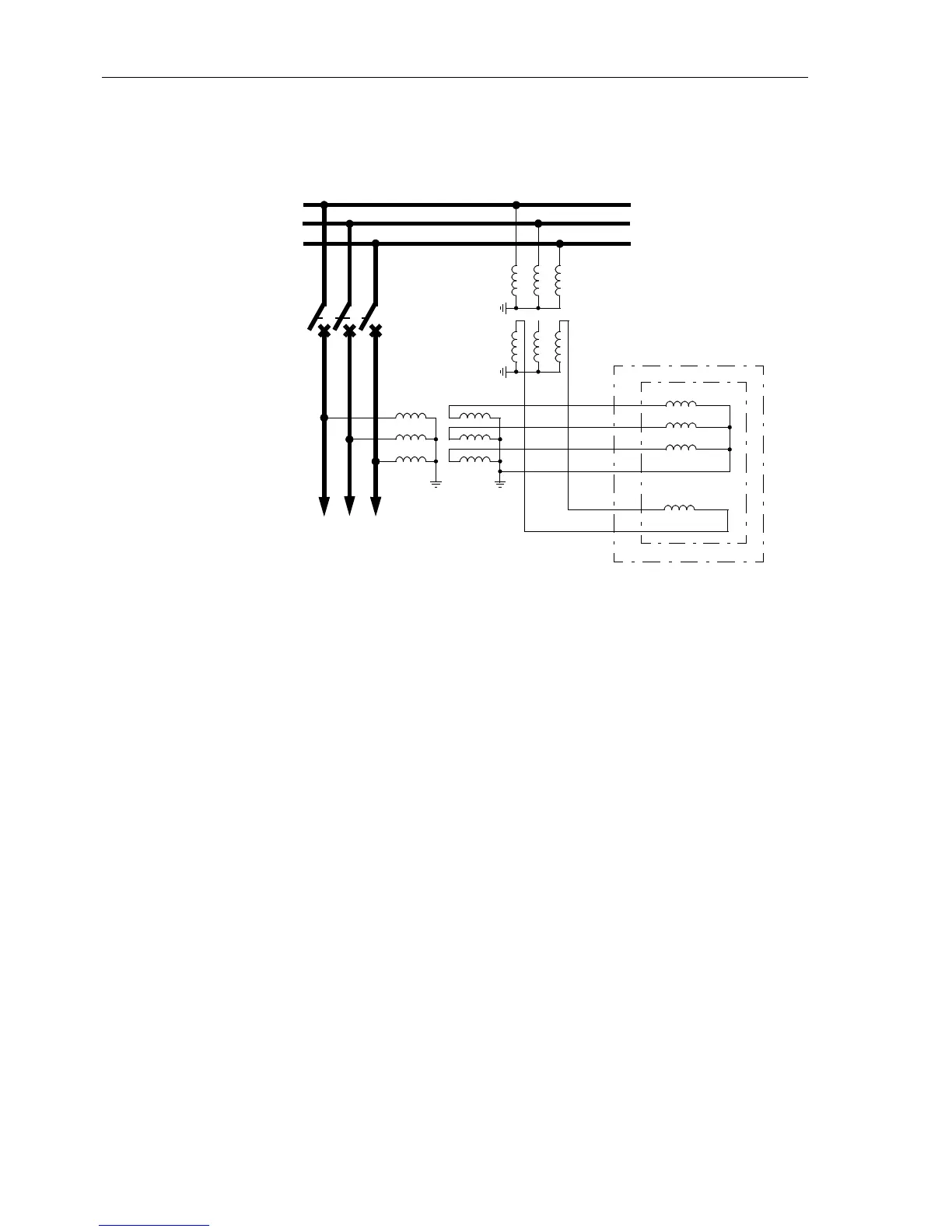

Figure A-46 Voltage connections to three Wye-connected voltage transformers and
additionally to any phase-to-phase voltage (for overvoltage protection and/or
synchronism check)
