Appendix
A-737SA6 Manual
C53000-G1176-C156-2

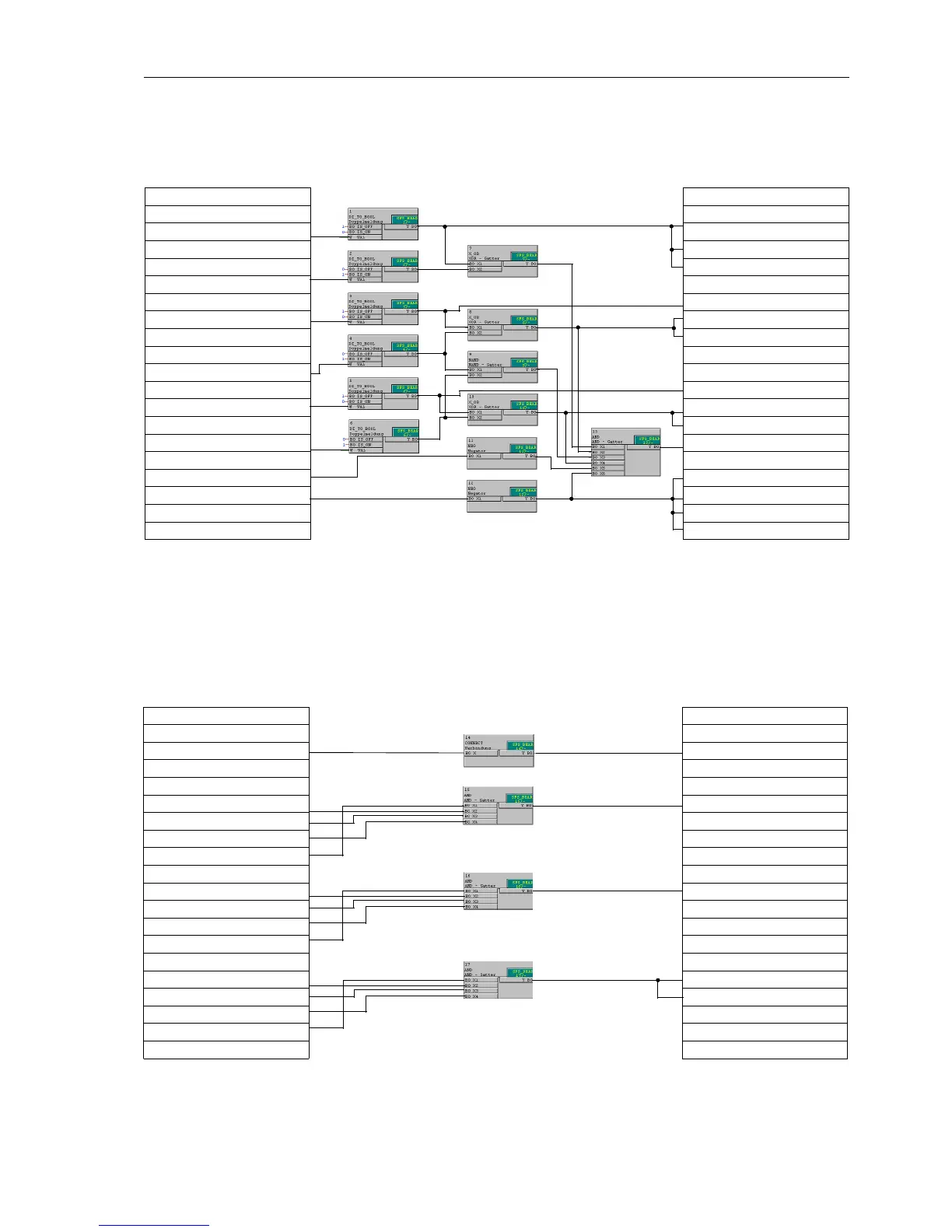

Figure A-49 Standard interlocking for circuit breaker (52 breaker), disconnector and earth switch
“IN: Control Device Breaker DP”
“IN: Control Device Breaker DP”
“IN: Control Device Disc. Swit. DP”
“IN: Control Device Disc. Swit. DP”
“IN: Control Device Earth Swit DP”
“IN: Control Device Earth Swit DP”
“IN: Process Data > CB wait SP”
“IN: Process Data >Door open SP”
“Interlocking (A) \ 17, X1”
“Interlocking (A) \ 16, X1”
“Interlocking (A) \ 17, X2”
“Interlocking (A) \ 15, X1”
“Interlocking (A) \ 16, X2”
“Interlocking (A) \ 15, X3”
“Interlocking (A) \ 15, X2”
“Interlocking (A) \ 17, X3”
“Interlocking (A) \ 16, X3”
“OUT: Control Device 52 Close IE”
“Interlocking (A) \ 14, X”
“Interlocking (A) \ 17, X4”
“Interlocking (A) \ 16, X4”
“Interlocking (A) \ 15, X4”
“Interlocking (A) \ 12 Y”
“Interlocking (A) \ 5 Y Indication”
“Interlocking (A) \ 8 Y”
“Interlocking (A) \ 12 Y”
“Interlocking (A) \ 1 Y Indication”
“Interlocking (A) \ 12 Y”
“Interlocking (A) \ 8 Y”
“Interlocking (A) \ 12 Y”
“Interlocking (A) \ 10 Y”
“Interlocking (A) \ 3 Y Indication”
“Interlocking (A) \ 10 Y”
“Interlocking (A) \ 1 Y Indication”
“Interlocking (A) \ 1 Y Indication”
OUT:ControlDevice52OPENIE
“OUT: Control Device Disc. Swit. CLOS IE”
“OUT: Control Device Disc. Swit. OPEN IE”
“OUT: Control Device GndSwit. CLOS IE
“OUT: Control Device GndSwit. OPEN IE”
Worksheet 1
Worksheet 2 (continuation of Worksheet 1)
