Functions
2.11 Automatic Reclosing System 79
SIPROTEC, 7SJ61, Manual
C53000-G1140-C210-1, Release date 02.2008
163

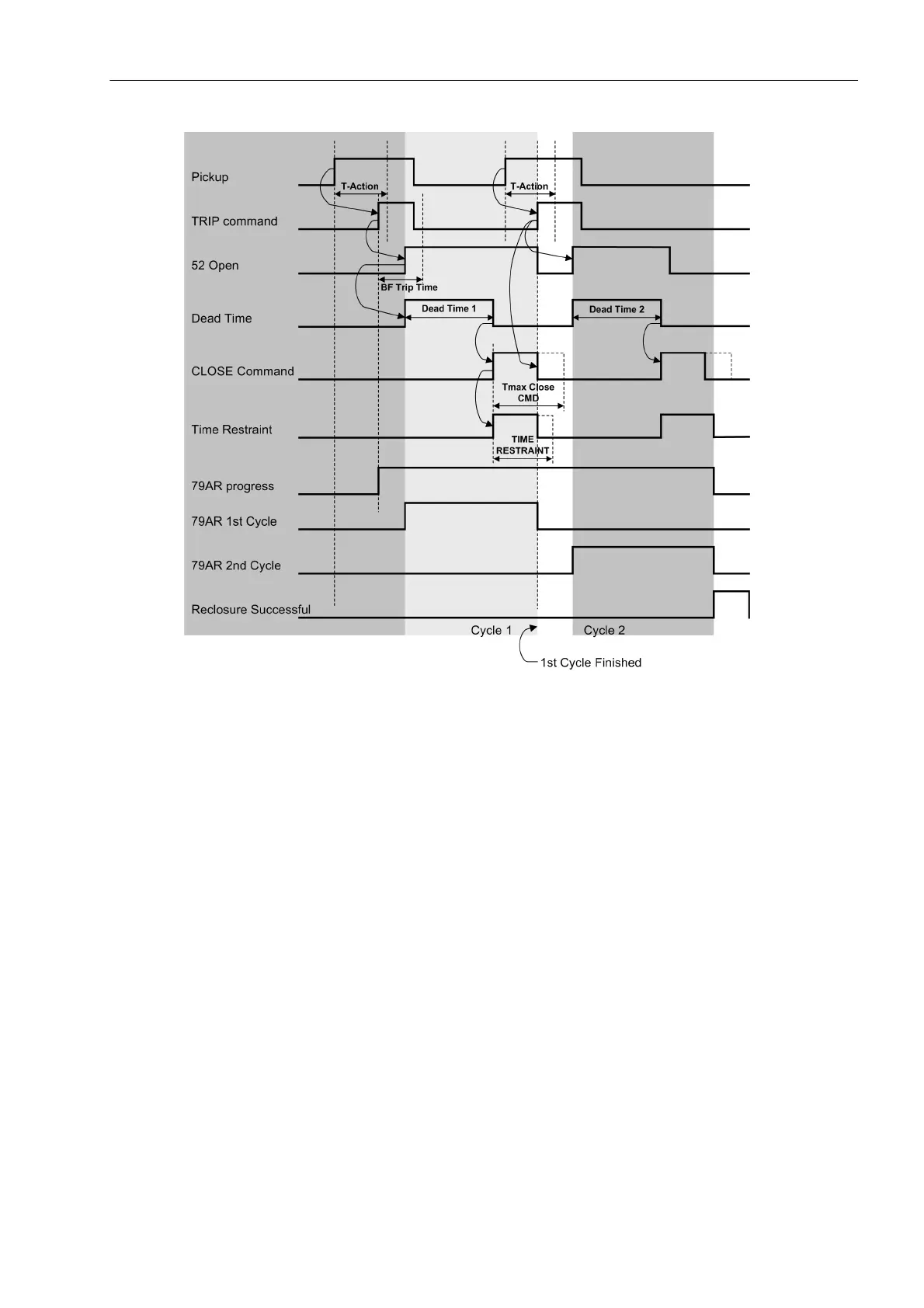

Figure 2-56 Timing diagram showing two reclosing shots, first cycle unsuccessful, second cycle successful
The following figure shows an example of a timing diagram showing for two unsuccessful reclosing shots, with
no additional reclosing of the circuit breaker.
The number of reclose commands initiated by the automatic reclosure function are counted. A statistical
counter is available for this purpose for the first and all subsequent reclosing commands.
