Siemens SIPROTEC 7SJ61 - Terminal Assignments; Housing for Panel Flush and Cubicle Mounting

Appendix
A.2 Terminal Assignments
SIPROTEC, 7SJ61, Manual
C53000-G1140-C210-1, Release date 02.2008
376
A.2 Terminal Assignments
A.2.1 Housing for Panel Flush and Cubicle Mounting
7SJ610*-*D/E

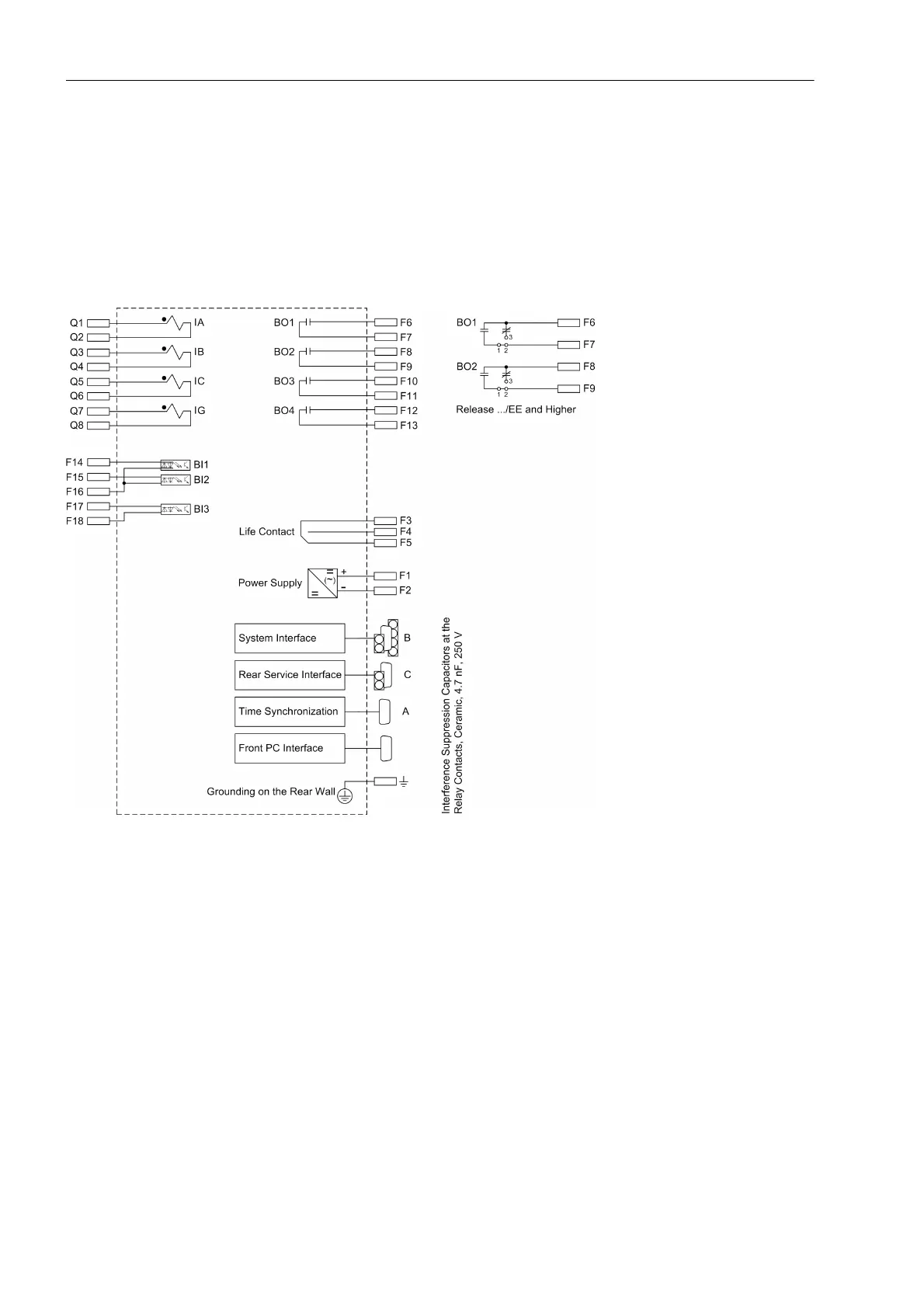

Figure A-1 Connection diagram for 7SJ610*–*D/E (panel flush mounted or cubicle mounted)
