Functions
2.17 Auxiliary Functions
SIPROTEC, 7SJ61, Manual
C53000-G1140-C210-1, Release date 02.2008
228
Depending on the type of device ordered and the device connections, some of the operating measured values
listed below may not be available. The ground current I
N
is either measured directly or calculated from the con-
ductor currents.
In addition, the following may be available:
• Θ/Θ
Trip
thermal measured value of overload protection value for stator in % of the trip initiating overtem-
perature
• Θ/Θ
LTrip
thermal measured value of restart inhibit (rotor winding)
• Θ
Restart
restarting limit of restart inhibit
•T
Reclose
total time, before the motor can be restarted
• Θ
RTD 1
to Θ
RTD 12
temperature values at the RTD-boxes.
The operational measured values are also calculated during a running fault. The values are updated in intervals
of > 0.3 s and < 1 s.
2.17.3.2 Transfer of Measured Values
Measured values can be transferred via the interfaces to a central control and storage unit.
The measuring range in which these values are transmitted depend on the protocol and, if necessary, addition-
al settings.

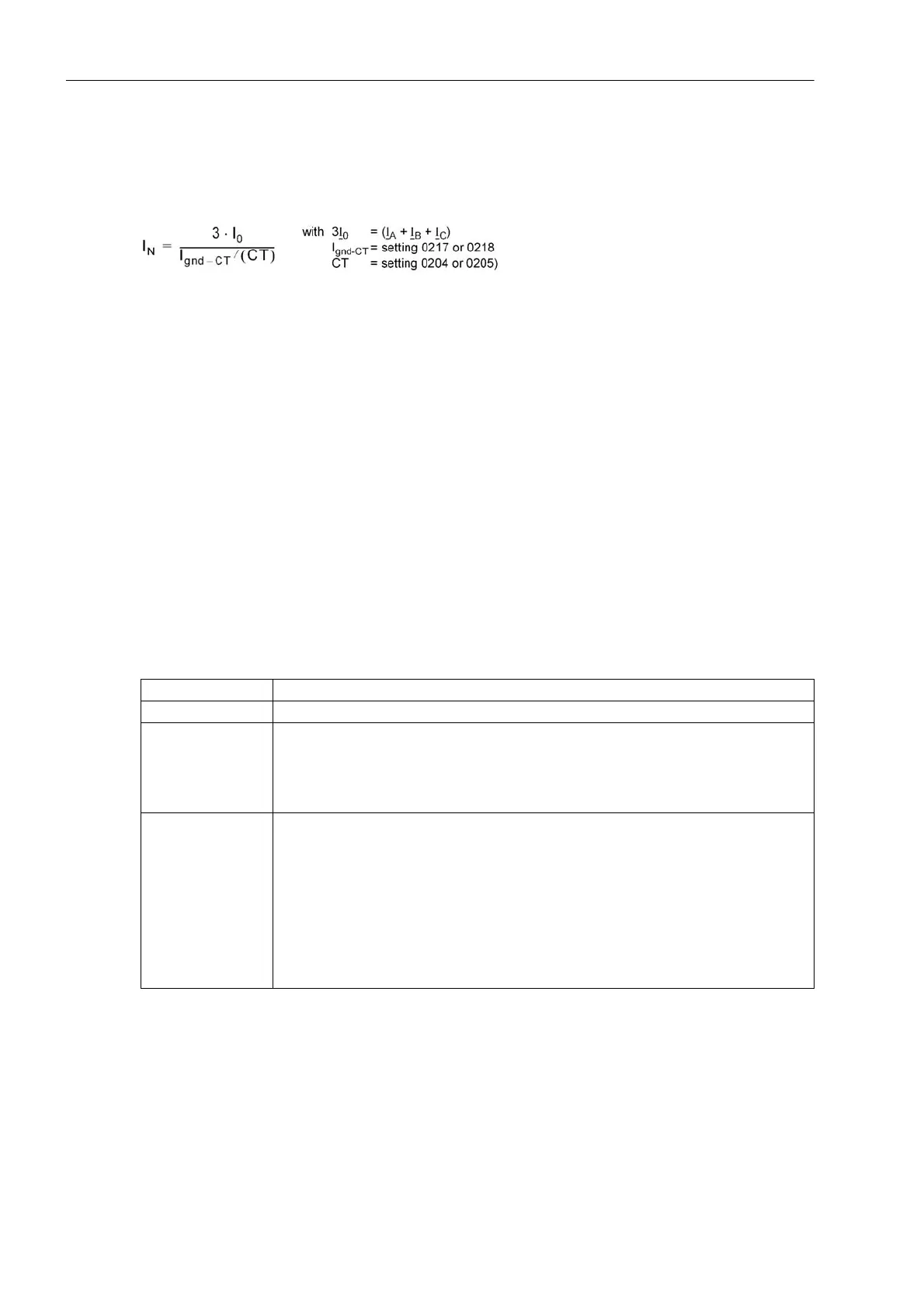

Protocol Transmittable measuring range, format
IEC 60870–5–103 0 to 240 % of the measured value.
IEC 61850 The primary operational measured values are transmitted.
The measured values as well as their unit format are set out in detail in manual PIXIT
7SJ.
The measured values are transmitted in „Float“ format. The transmitted measuring
range is not limited and corresponds to the operational measurement.
PROFIBUS,
Modbus, DNP 3.0
The unit format of the measured values on the device side is at first automatically gen-
erated by means of the selected nominal current value within the system data.
The current unit format can be determined in DIGSI or at the device via Menu Opera-
tional Values.
The user can select via DIGSI which operational measured values (primary, secondary
or percentage) must be transmitted.
The measured values are always transmitted as 16-bit values including sign (range ±
32768). The user can define the scaling of the operational measured value to be trans-
mitted. This will result in the respective transmittable measuring range.
For further details, please refer to the descriptions and protocol profiles.
