Appendix
A.5 Default Settings
SIPROTEC, 7SJ61, Manual
C53000-G1140-C210-1, Release date 02.2008
396
A.5.5 Default Display
In devices with 4-line displays and depending on the device version, a number of predefined measured value
pages are available. The start page of the default display appearing after startup of the device can be selected
in the device data via parameter 640 Start image DD.

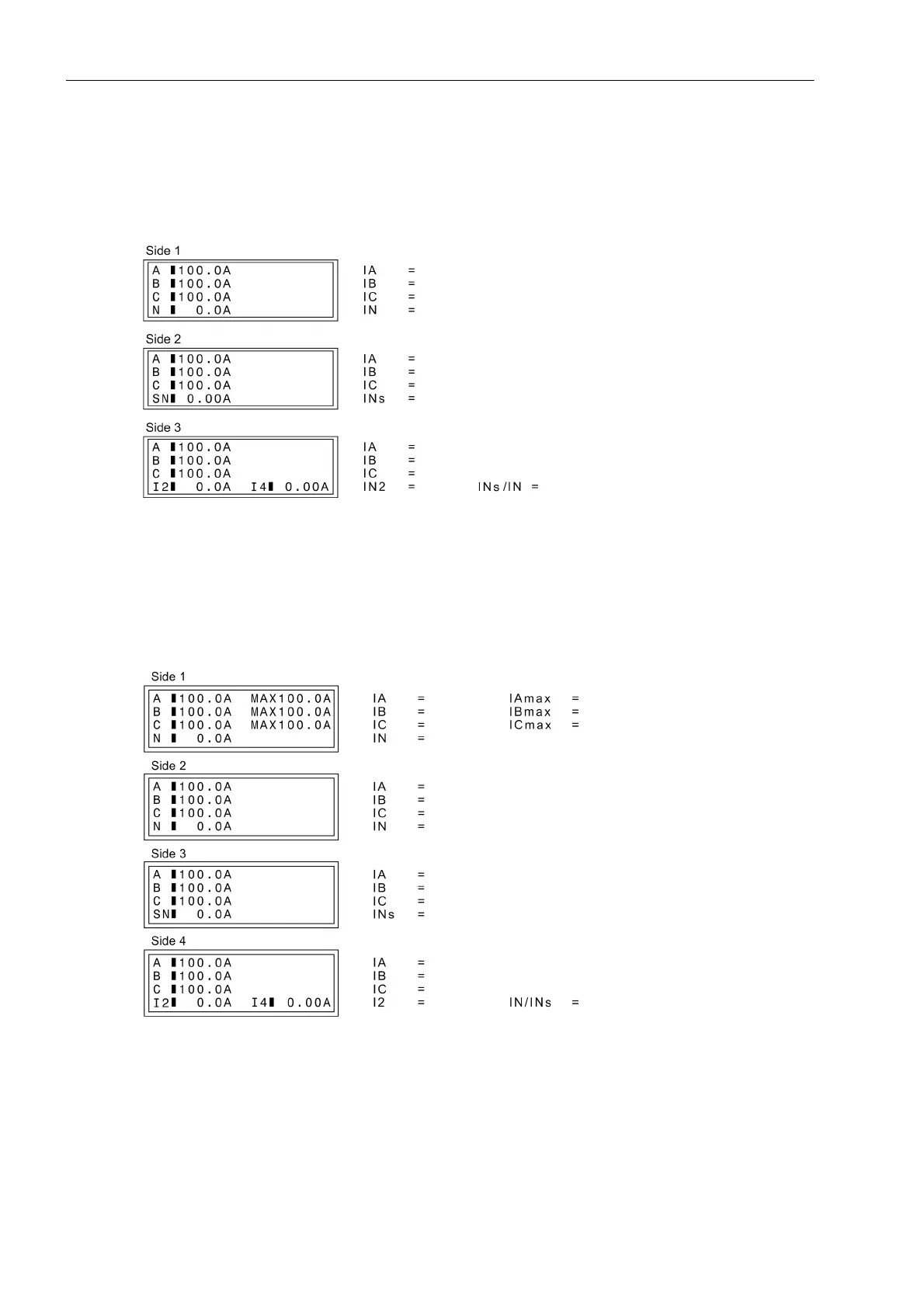

Figure A-19 Default display of 7SJ61 for models without extended measured values (13th digit of MLFB = 1)
Page 3 of the default display can only be used if for the current connection (parameter 251 CT Connect.)
one of the two special connection types (A,G2,C,G; G->B or A,G2,C,G; G2->B) was selected (see de-
scription of Power System Data 1).
Figure A-20 Default display of 7SJ61 for models with extended measured values (13th digit of MLFB = 3)
Page 4of the default display can only be used if for the current connection (parameter 251CT Connect.) one
of the two special connection types (A,G2,C,G; G->B or A,G2,C,G; G2->B) were selected (see description
of Power System Data 1).
