Technical Data

4.12 Thermal Overload Protection 49

SIPROTEC, 7SJ61, Manual

C53000-G1140-C210-1, Release date 02.2008

345

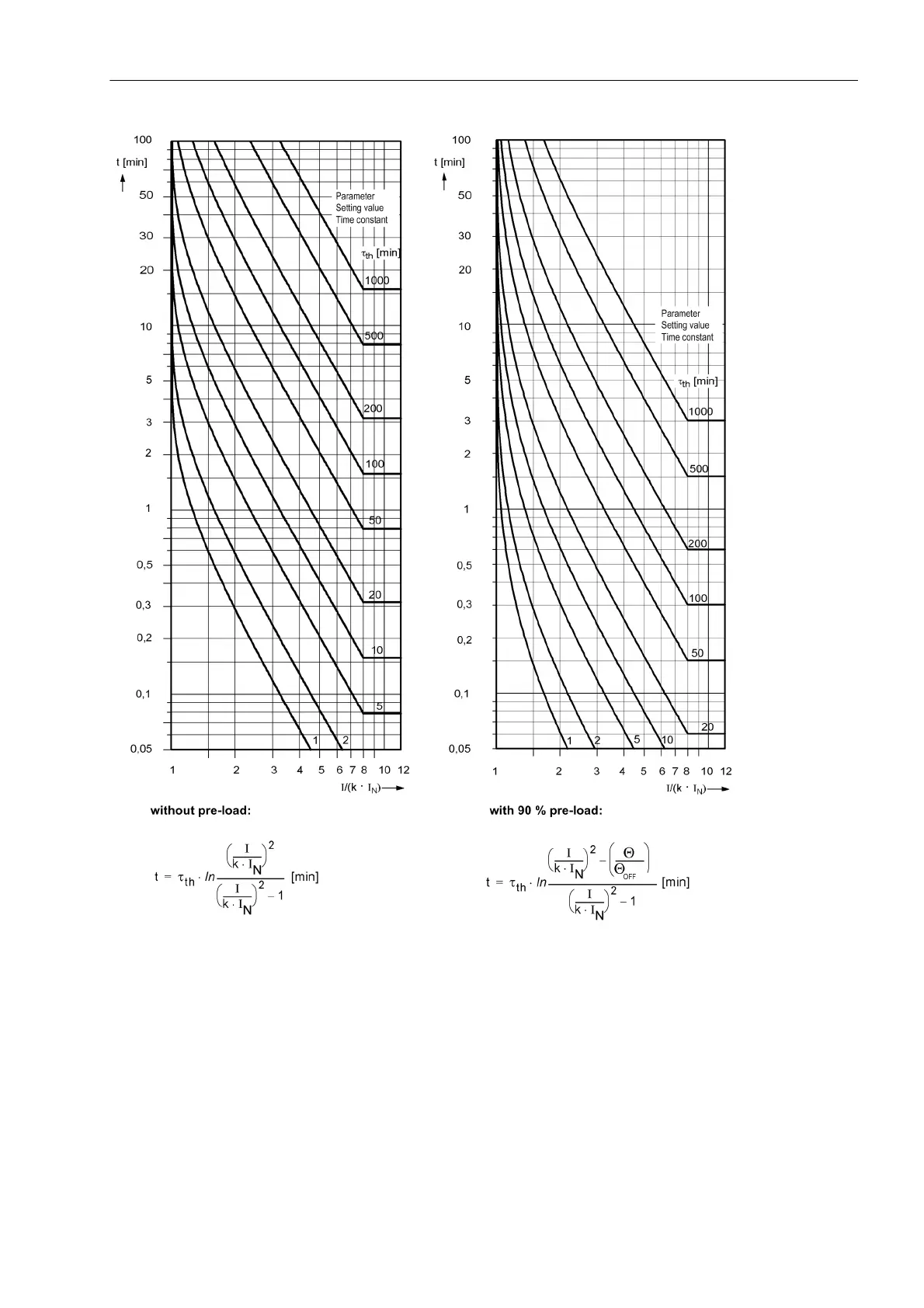

Figure 4-10 Trip time curves for the thermal overload protection (49)
