Appendix
A.2 Terminal Assignments
SIPROTEC, 7SJ61, Manual
C53000-G1140-C210-1, Release date 02.2008
381
7SJ612*-*B

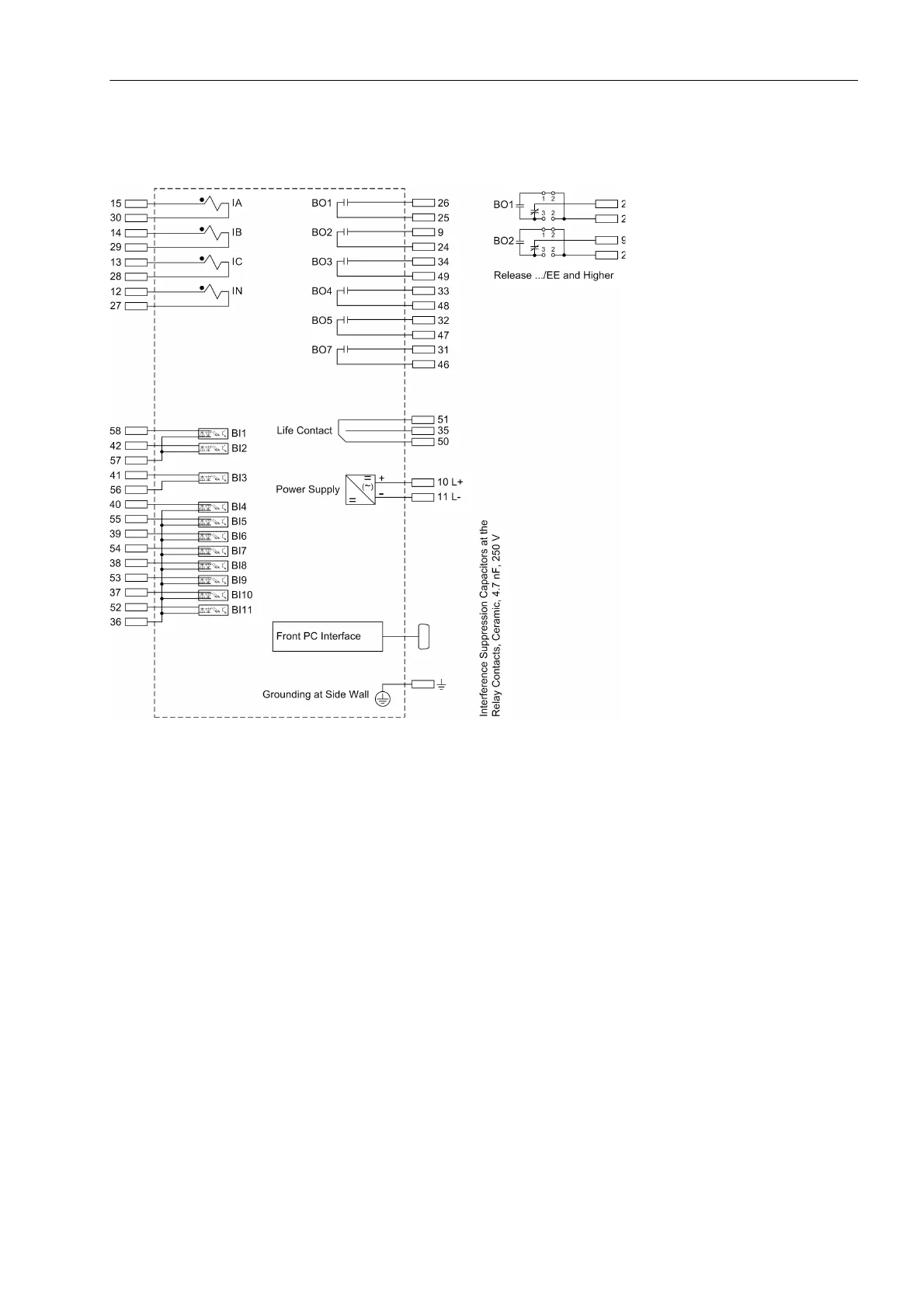

Figure A-6 Connection diagram for 7SJ612*–*B (panel surface mounted)
Double commands cannot be directly allocated to BO5 / BO7. If these outputs are used for issuing a double command, it
has to be divided into two single commands via CFC.
