Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
149

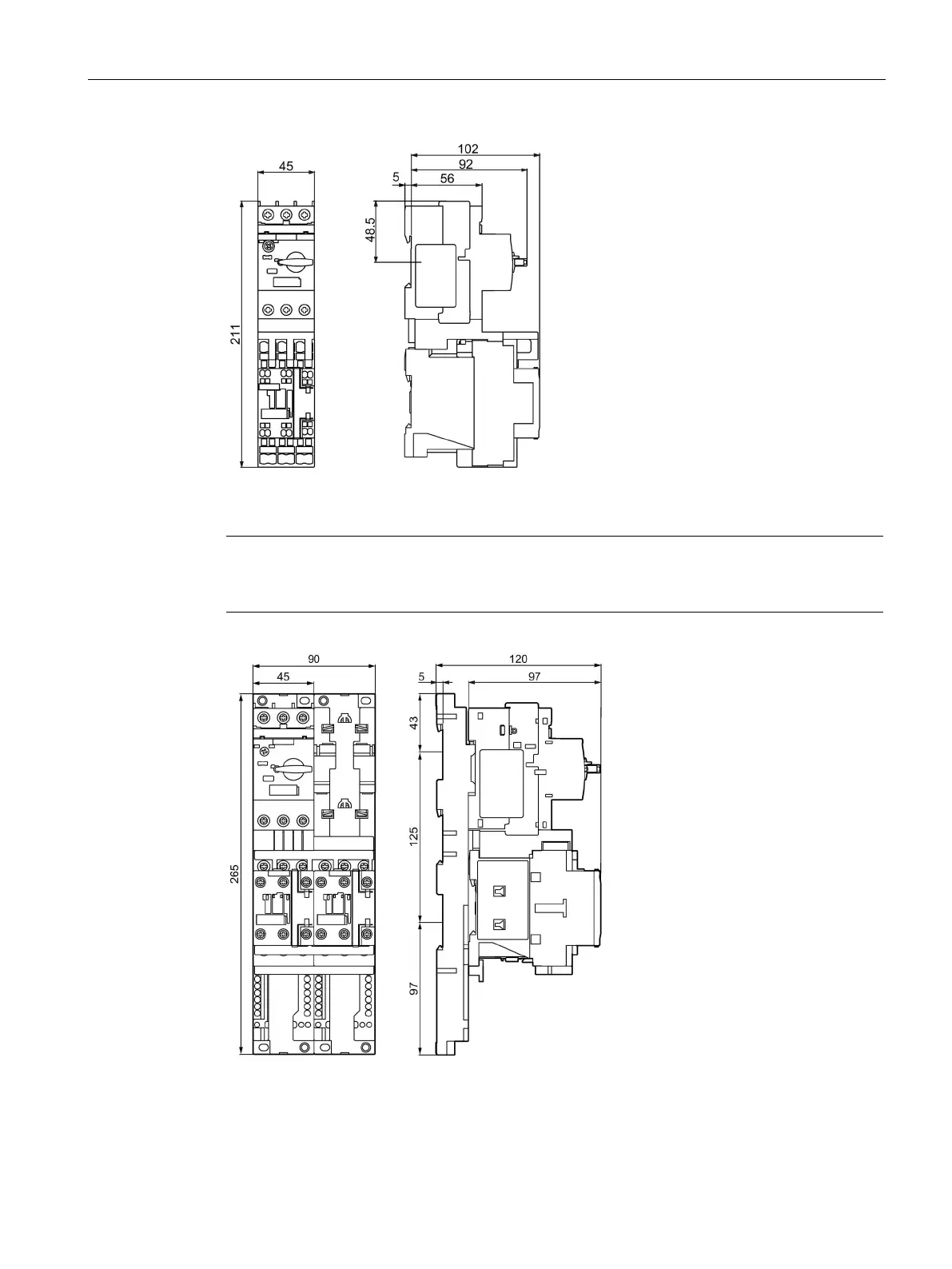

Figure C-11 S0 direct-on-line starter, DC, hybrid connection system, link module 3RA2921-2FA00
Note
The versions of the fuseless load feeder (S0
direct-on-line starter, AC and DC) with hybrid
connection system are not available as 3RA2
pre-assembled combinations.
Figure C-12 S0/S0 and S00/S0 reversing starters, AC, screw-type connection system
3RA2220-..B..-0AP0
