Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
150 Manual, 09/2016, A5E03656507520A/RS-AB/003

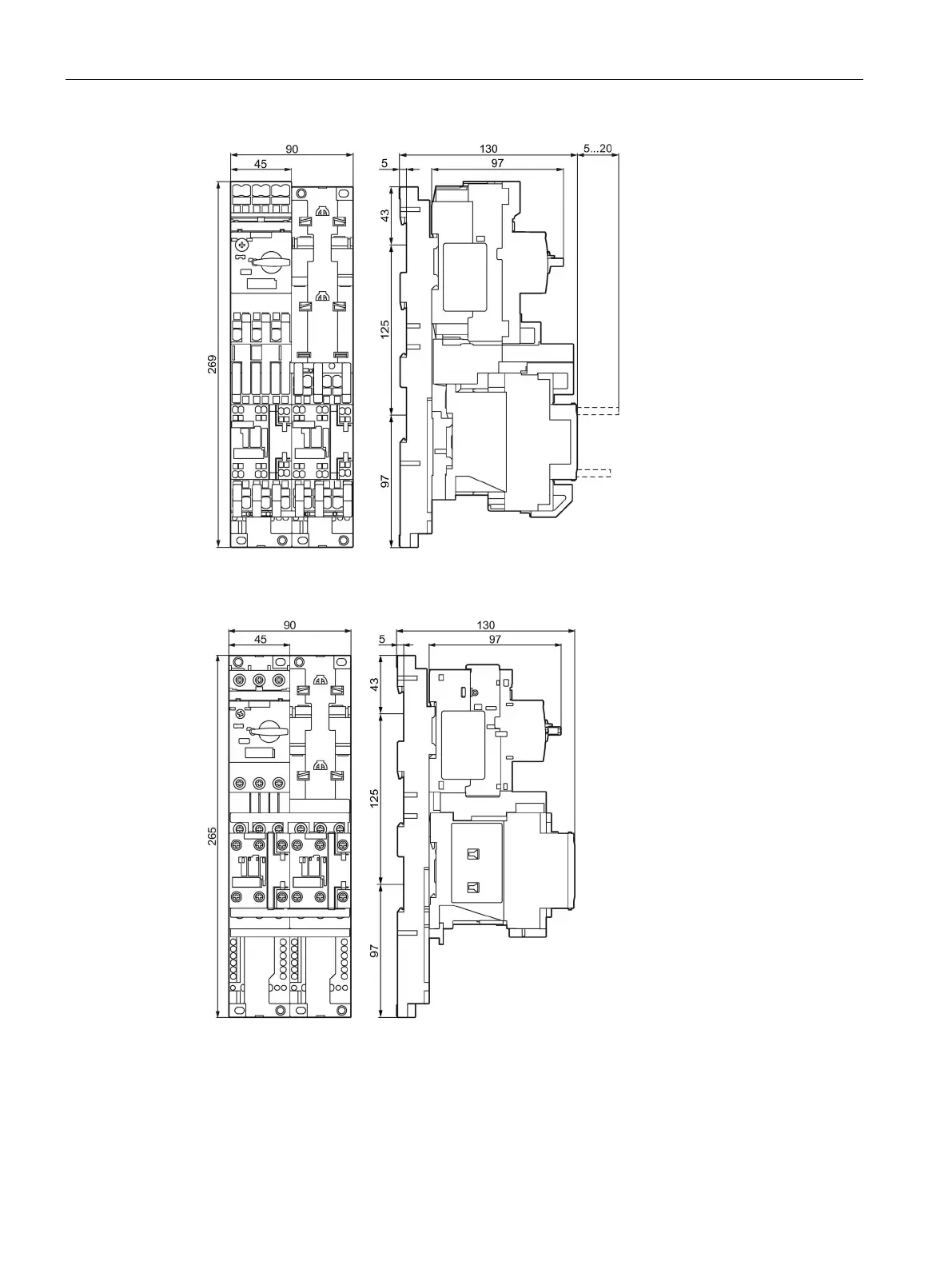

Figure C-13 S0 reversing starter, AC with spring-loaded connection system
3RA2220-..F..-0AP0
Figure C-14 S0/S0 and S00/S0 reversing starters, DC, screw-type connection system
3RA2220-..B..-0BB4
