2 Basics
Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
13
 Siemens AG
2019 All rights reserved
For the project planning of the UPS1600 uninterruptible power supply with the
SIMATIC manager, device master data files (GSD) are required. The installation
files can be downloaded from the following entry:
GSD for SITOP UPS1600 for integration in SIMATIC STEP 7
After the installation of the GSD, the following devices in the hardware catalog are
available:
Table 2-1
Device
Description
UPS1600 10A PN
Uninterruptible power supply DC 24V / 10A with PN/IE connection,
integrated web server, firmware V2.0
UPS1600 10A PN LS-
Uninterruptible power supply DC 24V / 10A with PN/IE connection,
integrated web server, integrated OPC UA server (from firmware
V2.2), firmware V1.2, V2.0, V2.1, V2.2
UPS1600 20A PN
Uninterruptible power supply DC 24V / 20A with PN/IE connection;
web server integrated, firmware V2.0
UPS1600 20A PN LS-
Uninterruptible power supply DC 24V / 20A with PN/IE connection,
integrated web server, integrated OPC UA server (from firmware
V2.2), firmware V1.2, V2.0, V2.1, V2.2
UPS1600 40A PN
Uninterruptible power supply DC 24V / 40A with PN/IE connection,
integrated web server, firmware V2.0
UPS1600 40A PN LS-
Uninterruptible power supply DC 24V / 40A with PN/IE connection,
integrated web server, integrated OPC UA server (from firmware
V2.2), firmware V2.0, V2.1, V2.2

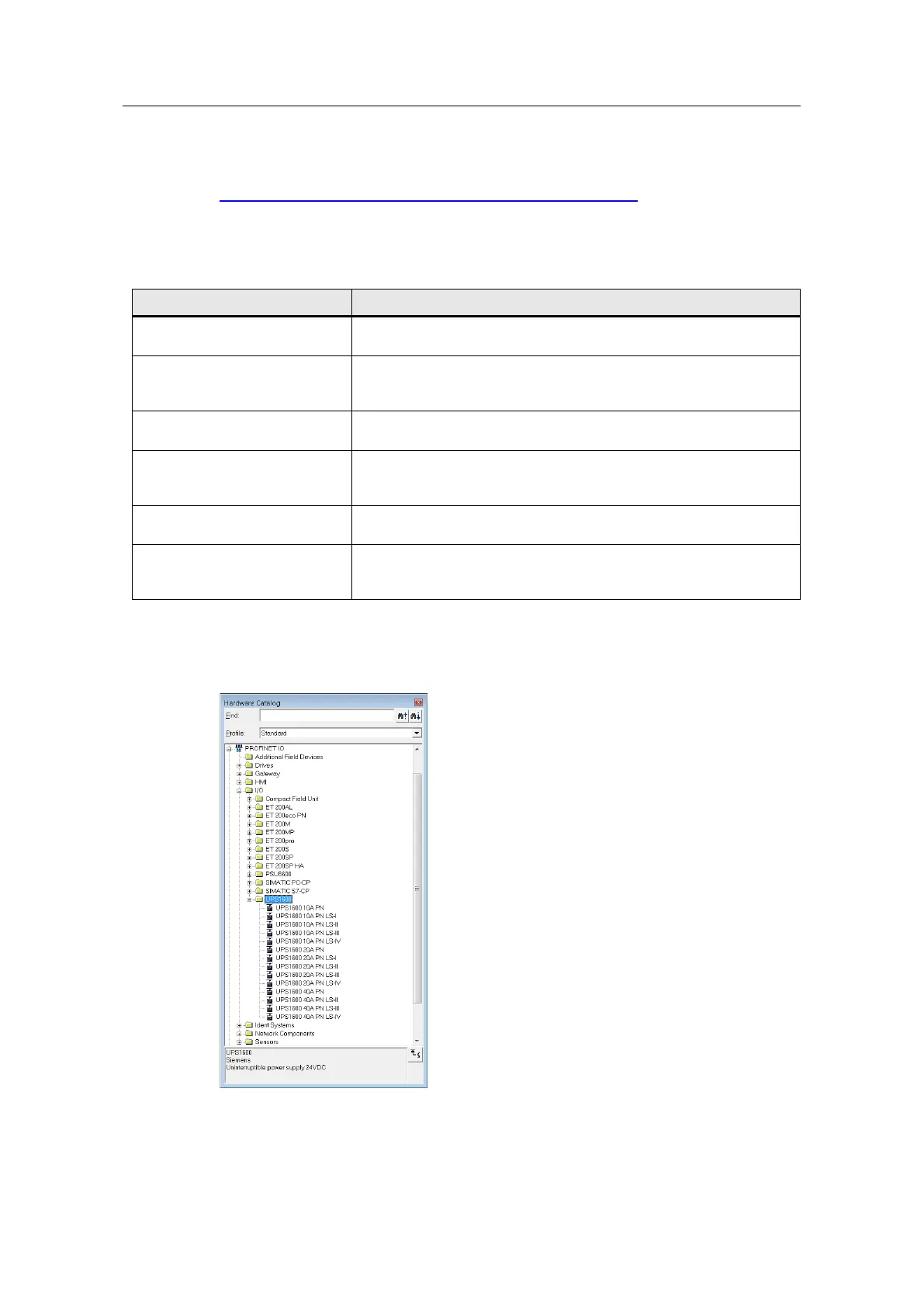

The device master data of the UPS1600 are integrated into the folder "PROFINET
IO > I/O > UPS1600" in the hardware catalog.
Figure 2-5
