3. Open the process picture using the WinCC Graphics Designer.

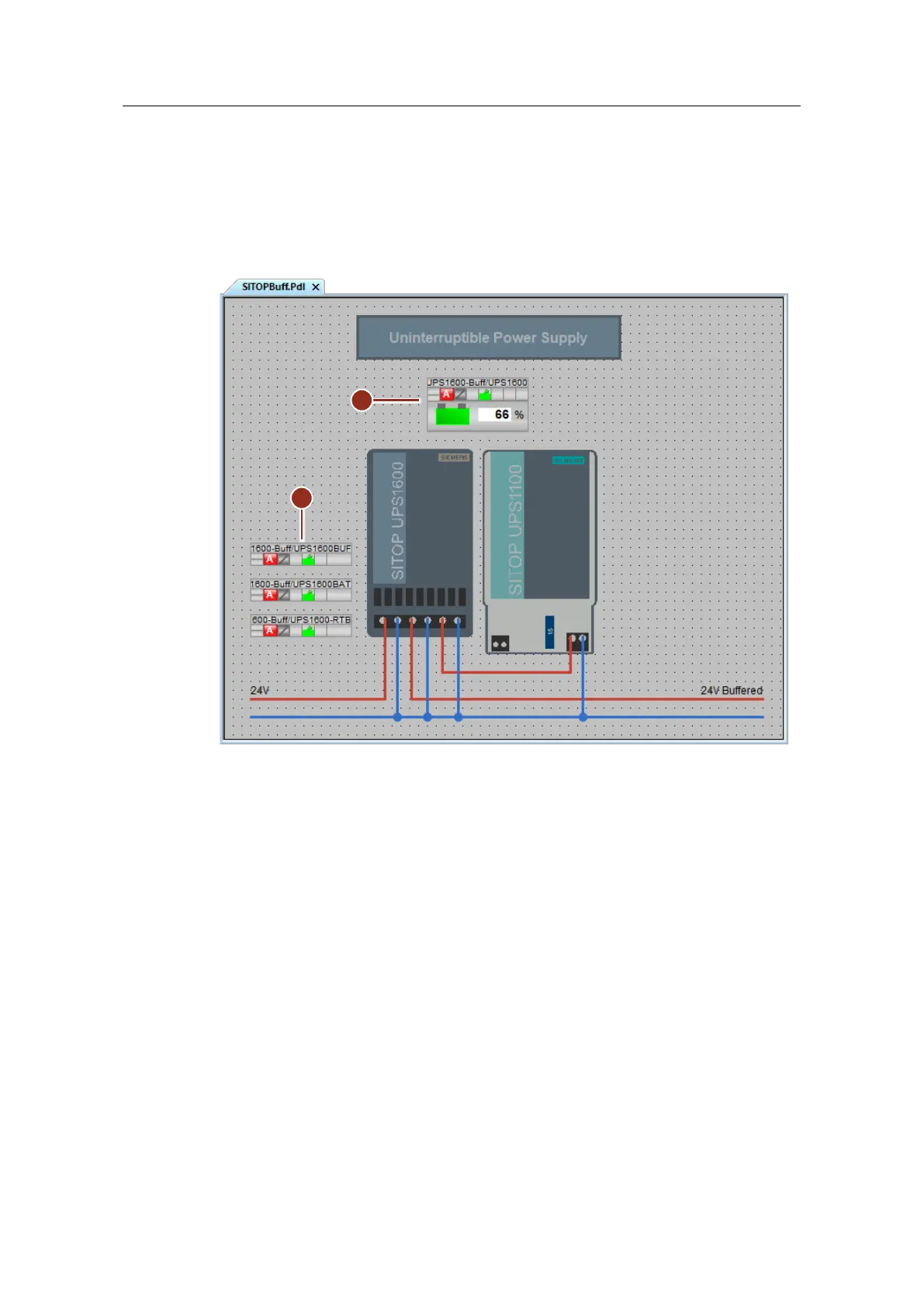

4. Draw the process picture as you want it to appear and position the block icon
of the PROFINET variant (2) or the APL symbols of the status signal variant (3)
at the intended location in the picture.
5. Save the adapted process picture and close it.
Figure 5-20:
5.4 Runtime
After starting runtime and switching to the corresponding technological hierarchy, it
is possible to monitor the status of the uninterruptible power supply on the OS. The
block icon (1) shows the current charge of the battery and indicates pending
messages. In the faceplate (2), you get detailed information about the operating
status of the DC UPS and you can view and acknowledge the messages on a
process tag-specific basis.
On the faceplate, you can choose between the following views:
• Standard view
• Messages
• Trends
• Notes
• Batch view
