5 Uninterruptible 24 V power supply
Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
Siemens AG
2019 All rights reserved
5.1.3 Creating an AS program
Proceed as follows:

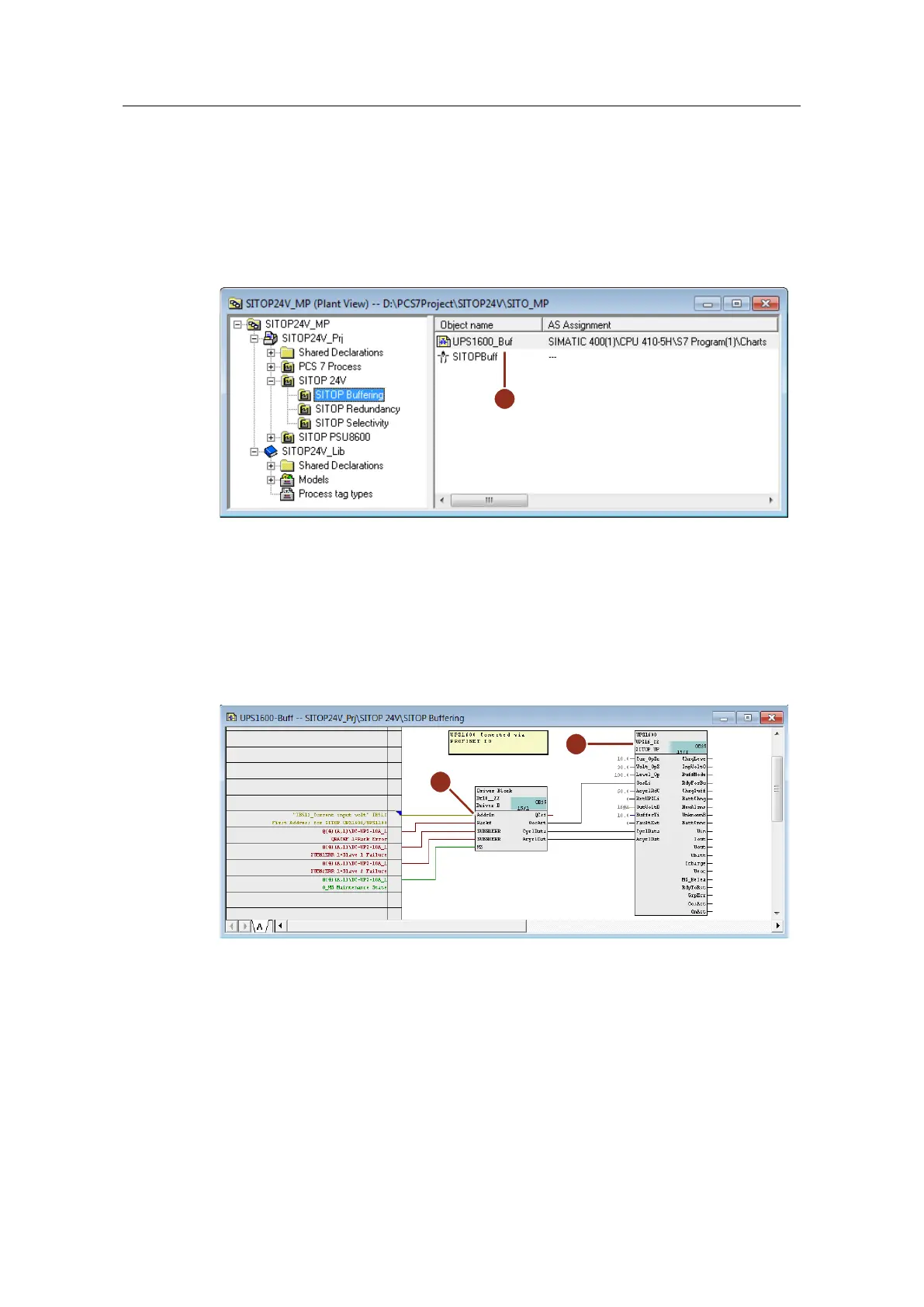

1. Drag process tag type "UPS16xxx" from the project library, drop it in the
desired folder in the technological hierarchy and rename it. (1)
Figure 5-7
2. Open the plan and carry out the following modifications:
3. Interconnect input "PV_In" to the first input address of the UPS1600. If you
have used the standard symbols, the symbol is called "IBxxx_Input voltage"
(2).
4. Rename the monitoring block to match its use (3).
Figure 5-8
5. Compile the AS program and update the view of the CFC plan.
6. Load the program into the automation system.
