Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
9.3.3 Monitoring of the PSU8600 with redundancy module

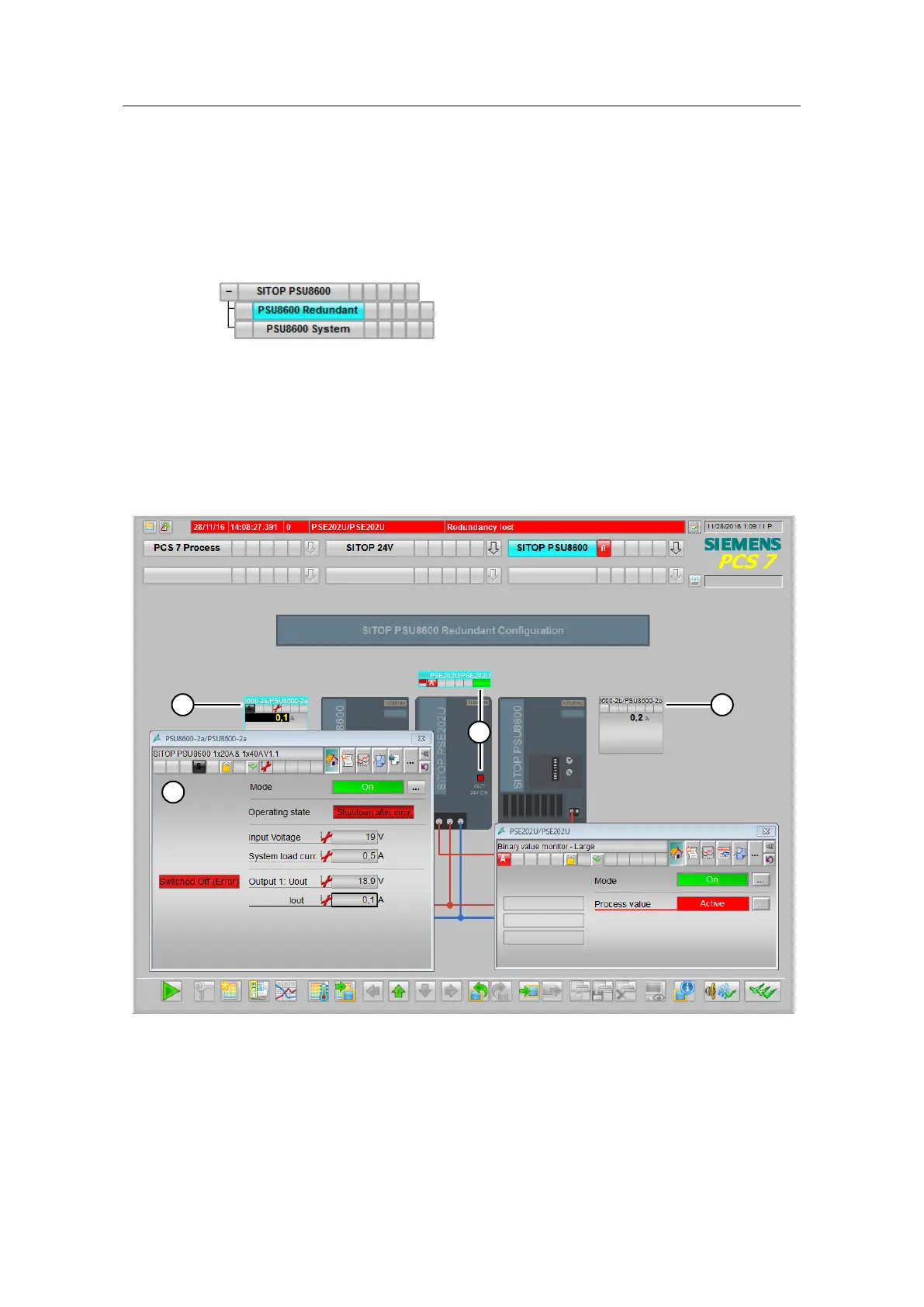

In the sample project, a further process picture is configured for redundancy
monitoring with two PSU8600 power supply systems. You can call the picture by
switching to the "PSU8600 Redundancy" sub-area.
Figure 9-23
In the process picture, you get the following information:
• Block icons of the power supply (1),
• Faceplate (2) for detailed display of the PSU8600 status.
• Failure of redundancy or falling below the voltage threshold (3)
Figure 9-24
