5.1.2 Copying process tag types
The function blocks of the SITOP UPS1600 are configured in process tag type
"UPS1600", "UPS16_21" and "UPS16_22". These plans each contain a driver
block "DrvUPS" and a monitoring block "UPS1600" for the respective firmware
version of the UPS device. The blocks have already been correctly interconnected
with one another.
Proceed as follows:
1. Open SITOP library "SITOP_APL_V3".
2. Copy one of the "UPS16xxx" templates (1), depending on the firmware of the
device used, into the "Process tag types" folder of the master data library.

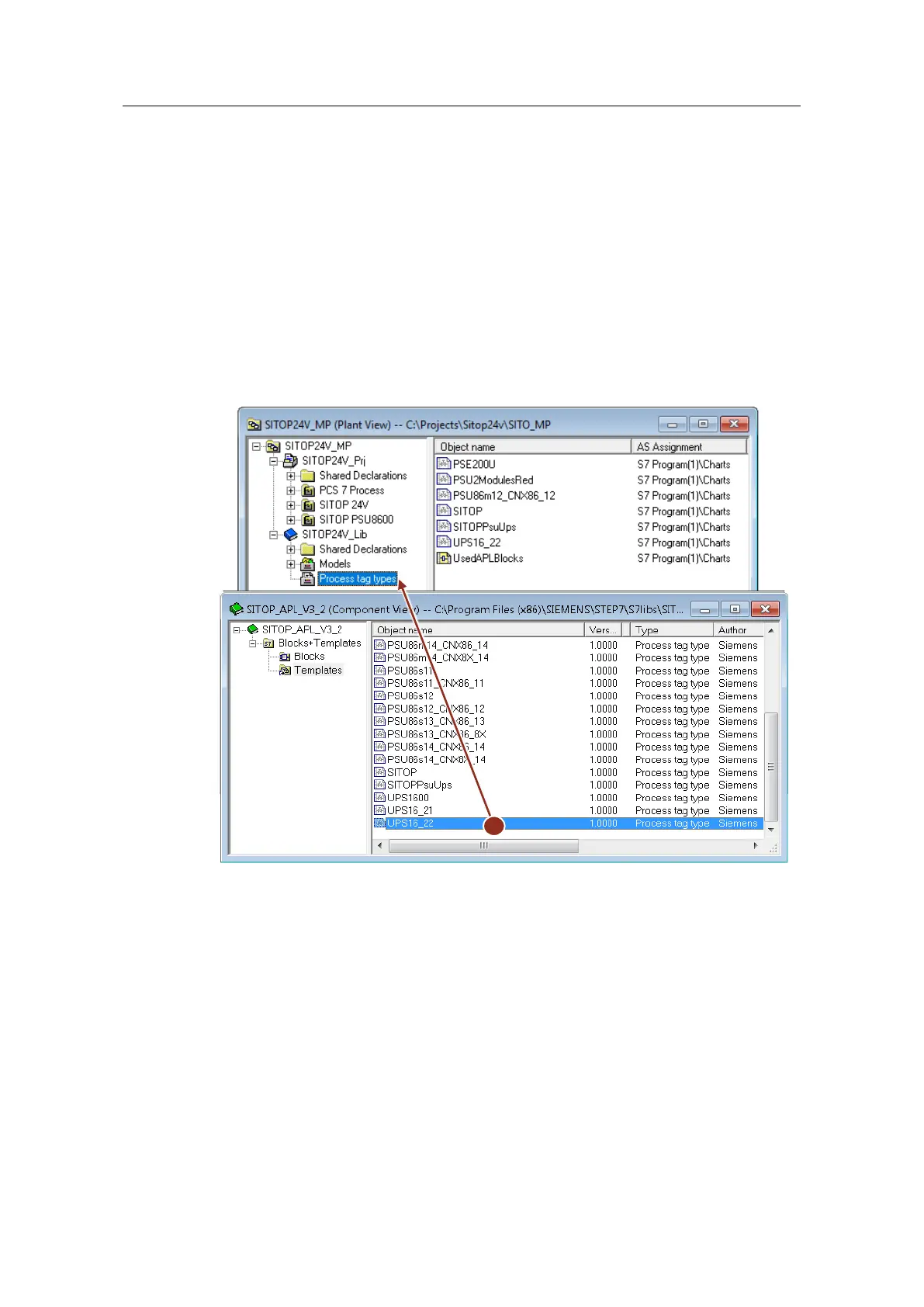

Figure 5-6
