with the operation block (9) ensures that operators on the OS do not need
to reset the signal manually.

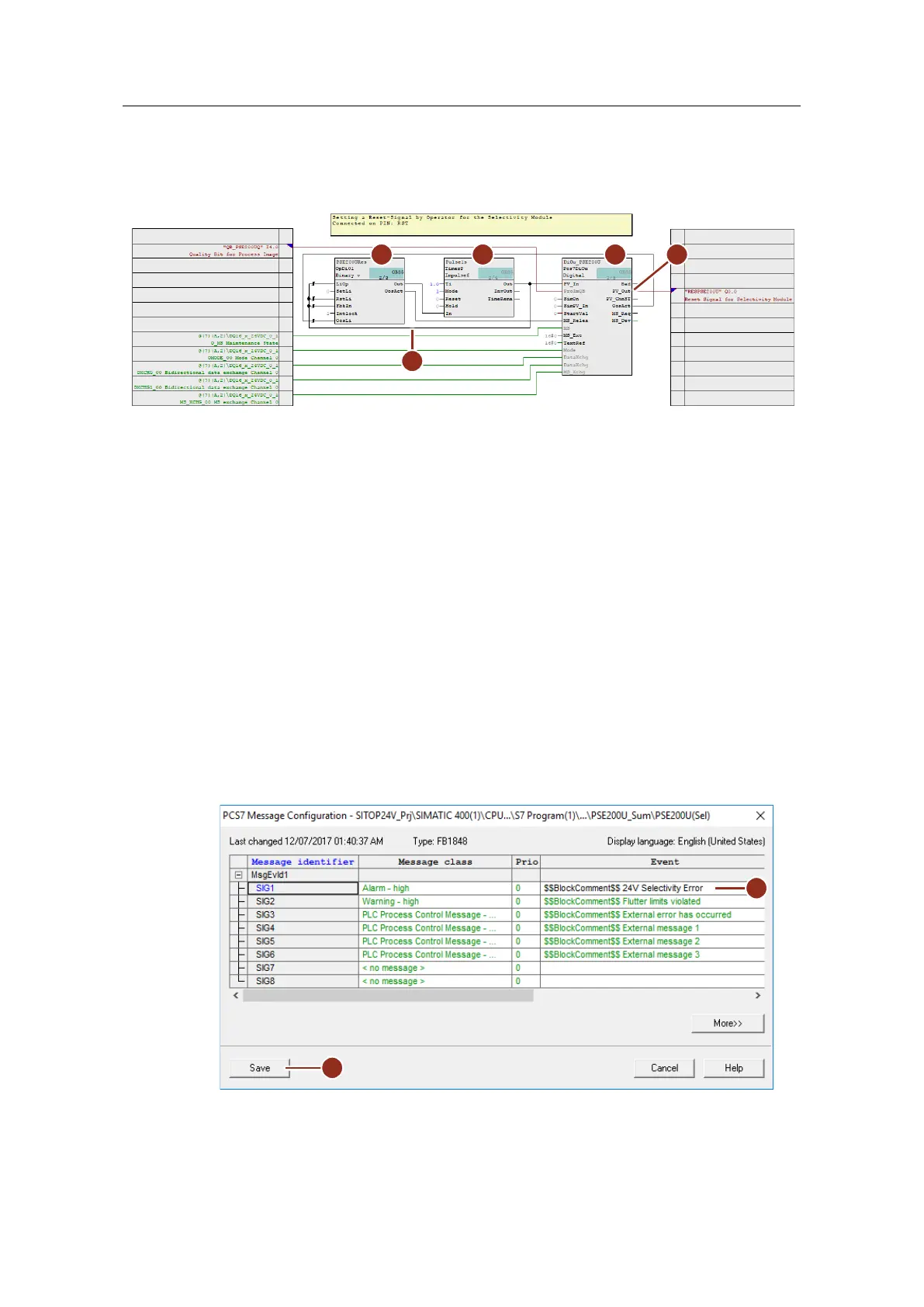

Figure 6-7 CFC Plan for Resetting the Selectivity Module
5 6 7 8
9
4. Compile the AS program and update the view of the CFC plan.
5. Load the program into the automation system.
6.4 Parameterizing a message
So that the operator is informed of a failure of a 24 V branch, the message of the
monitoring module is also adapted.
Proceed as follows:
1. Open the properties view of the "MonDiL" block and click on the "Messages..."
pushbutton.
2. In the message configuration dialog, change the message text (1). However,
leave the "$$BlockComment$$" system instruction in the message text.
3. Click on the "Save" pushbutton (2) to confirm your change.
4. Close the properties of the monitoring block.
Figure 6-8:
1
2
