Siemens SITOP PSE200U

5 Uninterruptible 24 V power supply
Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
39
 Siemens AG
2019 All rights reserved
Proceed as follows:
1. Open the SITOP library "SITOP_APL_V3_2".
2. Copy the "SITOP" template (1) to the "Process tag types" folder in the master
data library.
3. Make sure that you copy the APL blocks that are used to the master data
library too. To do this, create a CFC plan (2) by copying blocks "Pcs7DiIn" and
"MonDiL" from the PCS 7 APL.

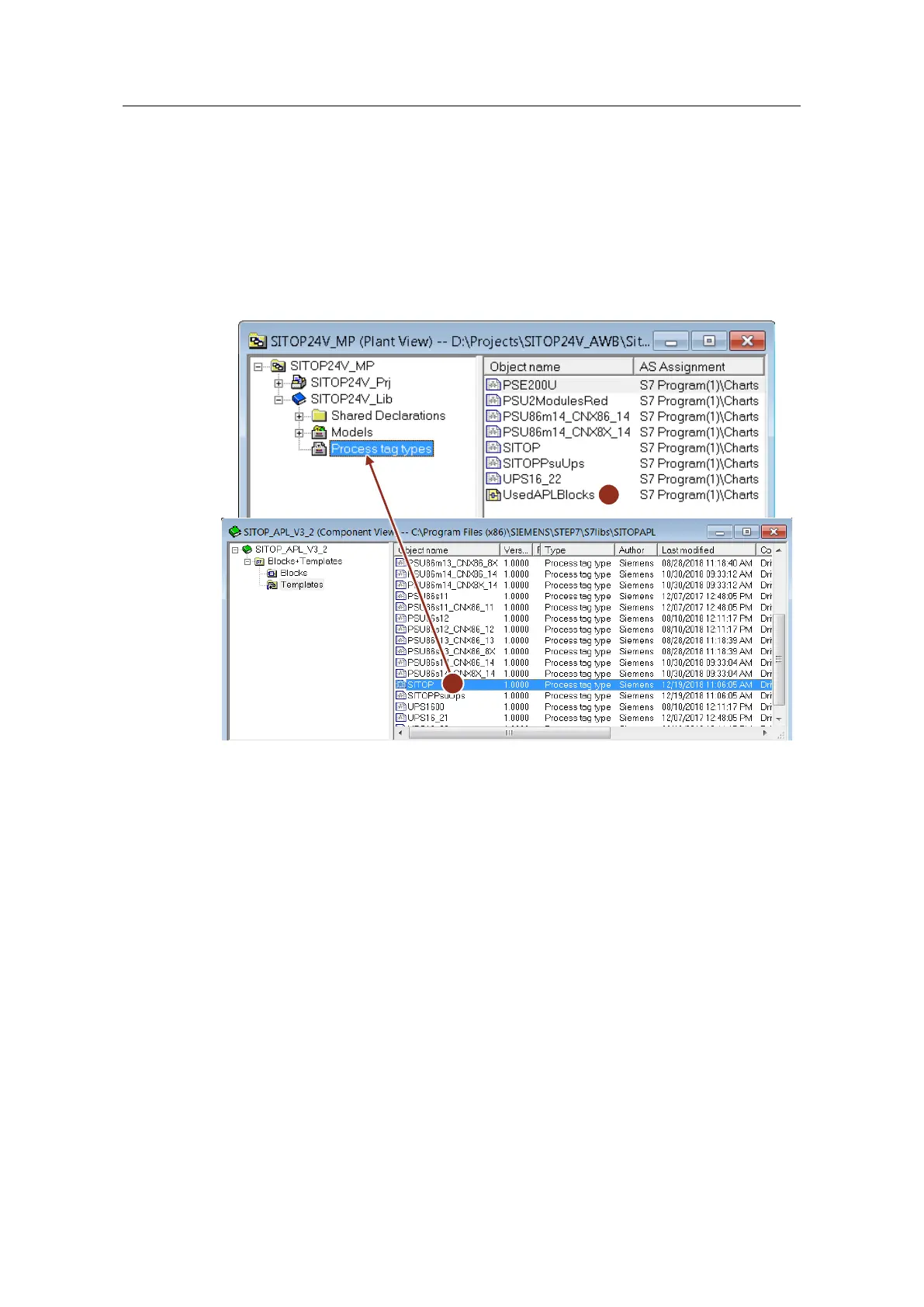

Figure 5-13:
2
1
