– Interconnect input "AddrIn" (4) with the corresponding symbol of the
PSU8600 from the hardware configuration.
– Delete the "CNX2", "CNX3" and "CNX4" blocks of the expansion modules
if you do not need them.

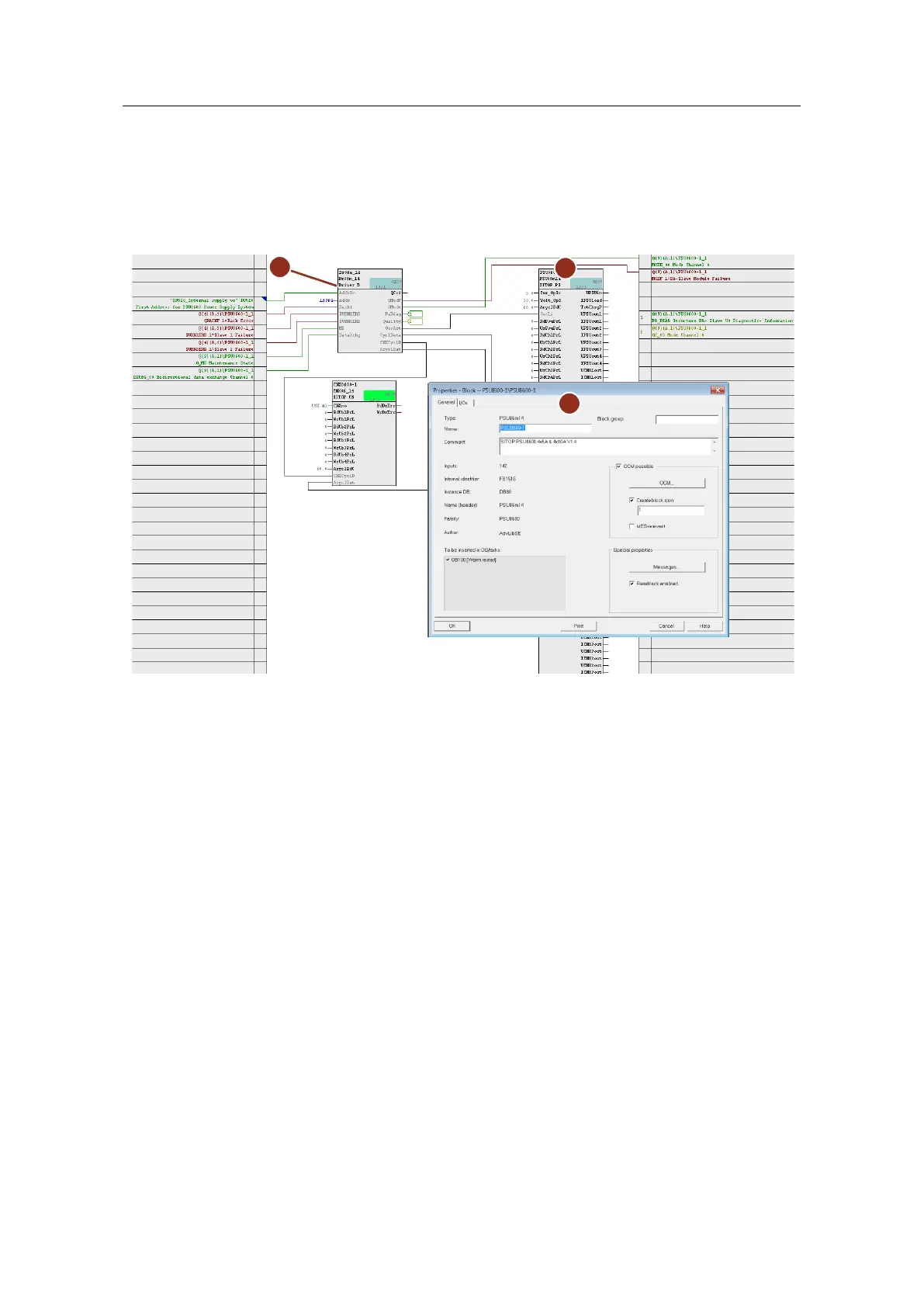

Figure 7-12
2
4
3
3. Compile the AS program and update the view of the CFC plan.
4. Load the program into the automation system.
