Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
68
 Siemens AG
2019 All rights reserved
4. Draw the process picture as you want it to appear and position the block icon
of the PSU8600 (2) at the intended location in the picture.
5. Save the adapted process picture and close it.

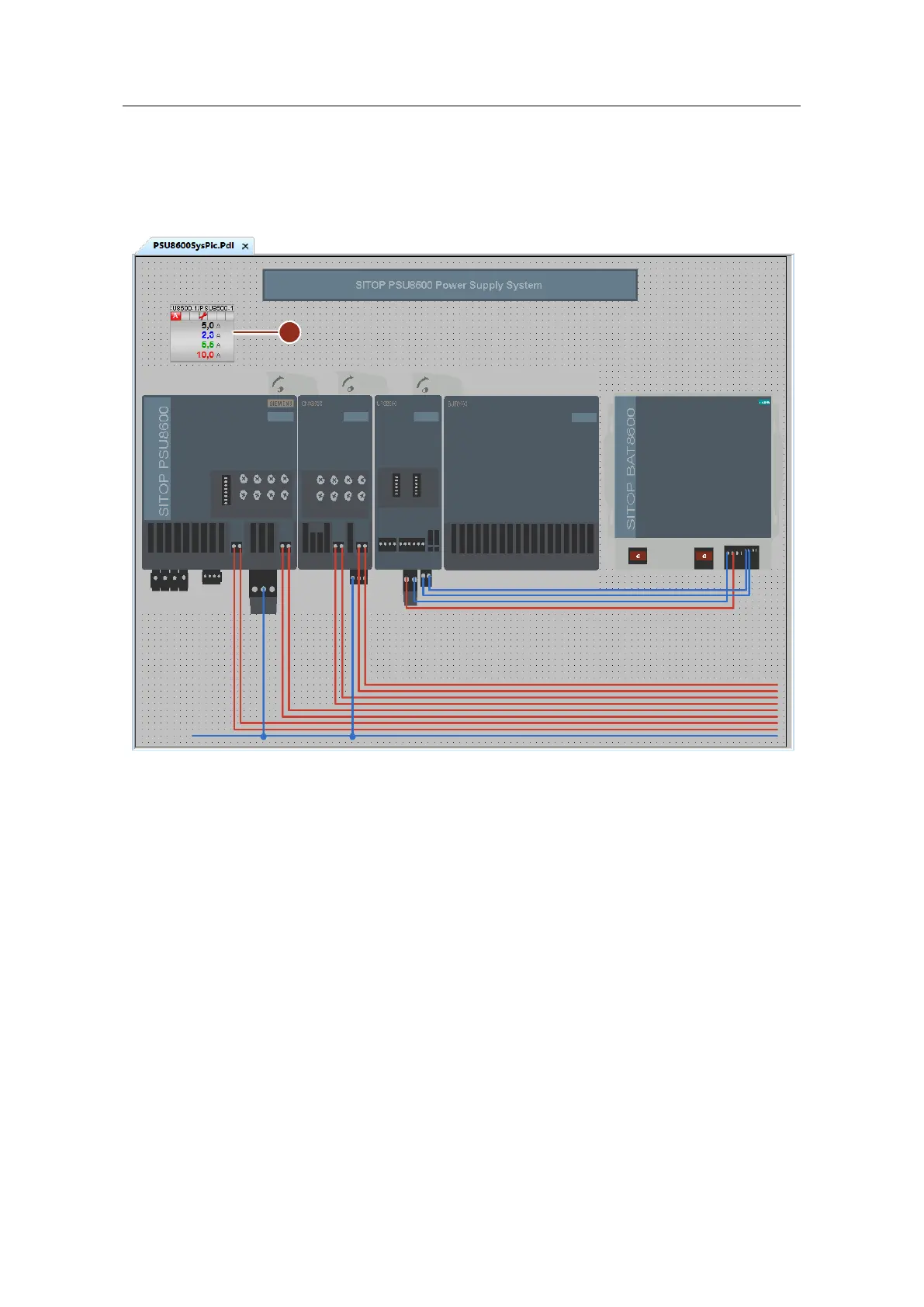

Figure 7-15
2
