Siemens SITOP PSE200U

8 Power supply system SITOP PSU8600 redundant
Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019
75
 Siemens AG
2019 All rights reserved

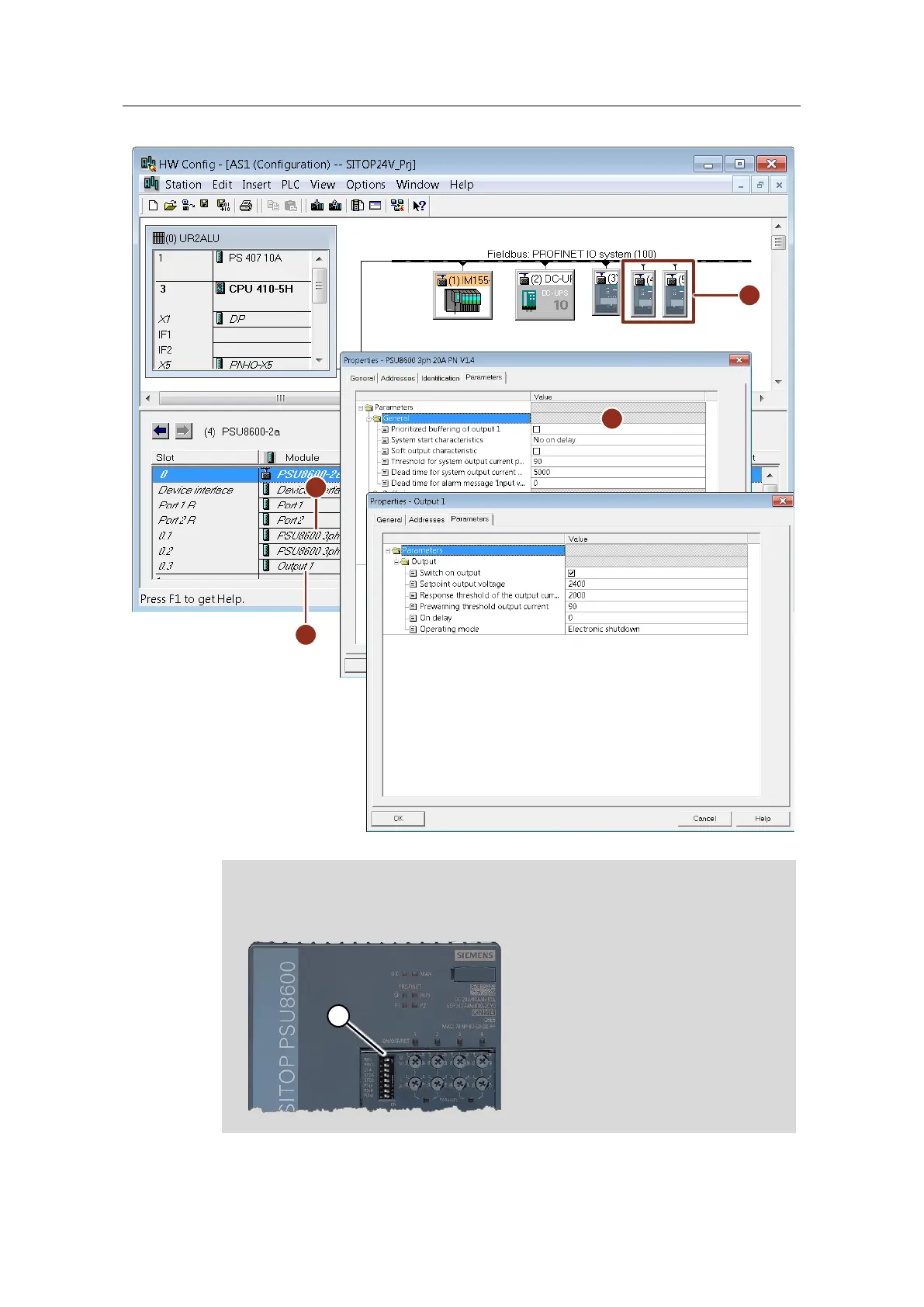

Figure 8-5
2
4
1
3
Note
Bear in mind that remote parameterization by means of the HW configuration is
only effective if you have set the "REN" DIP switch (1) on the device to the "ON"
position.
