Integration of a SITOP 24V power supply in PCS 7
Entry ID: 10948108, V3.2, 01/2019

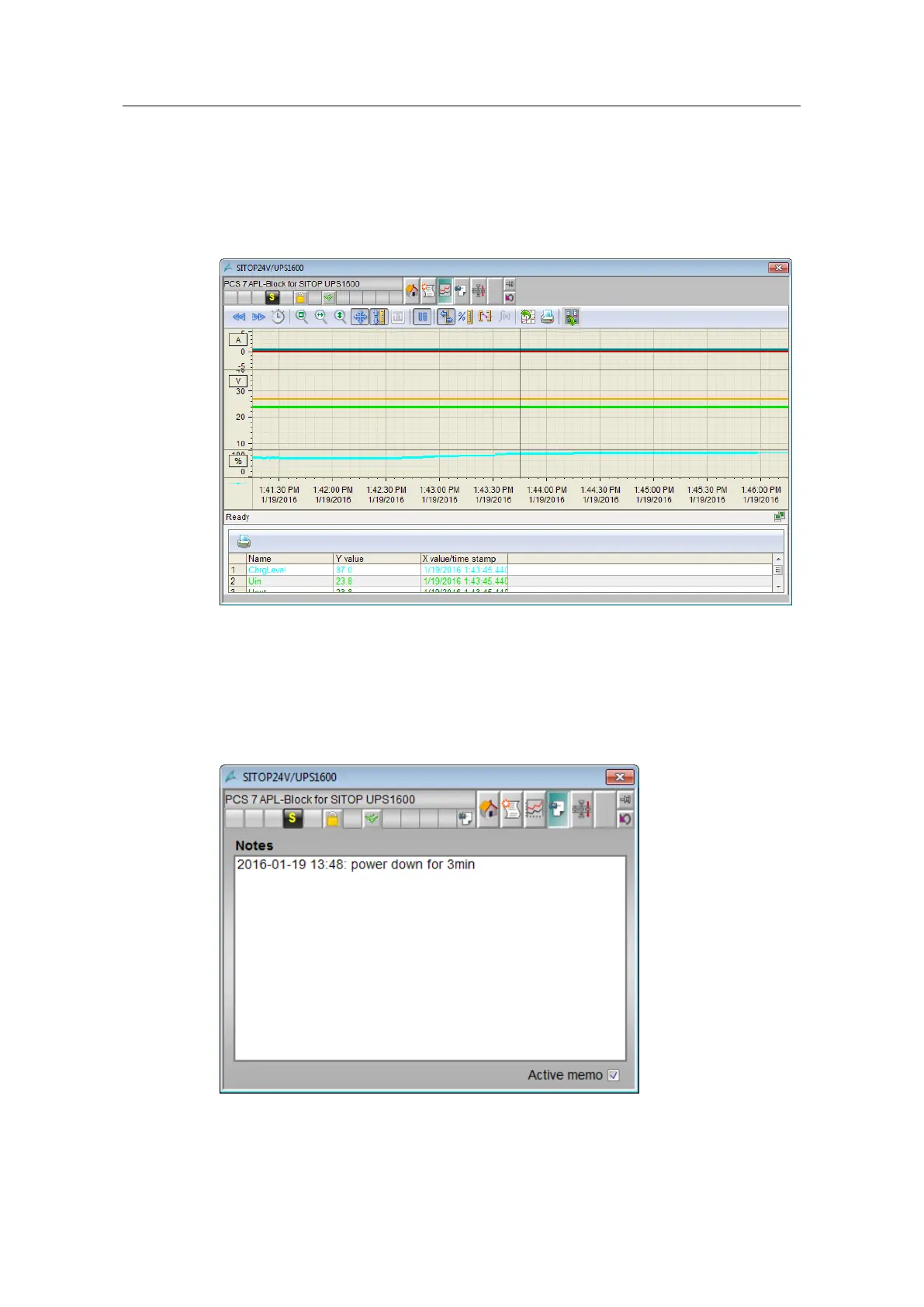

Trend view
In trend view, you can display all the important values as a curve progression. If
value archiving is activated on the AS block, you can switch between current
values and archive values.
Figure 9-11
Note view
In note view, you can store messages for other operating or maintenance
personnel. The system displays an active message on the block icon.
Figure 9-12
