Hardware Planning and Assembly
SIWAREX FTA
- Screw-in connector for 24 V power supply
- 40 pin connector for load cell connection, digital input and output, RS 485,
analog output, counter input
- 9 pin (female) D-sub connector for RS 232 to PC or printer connection

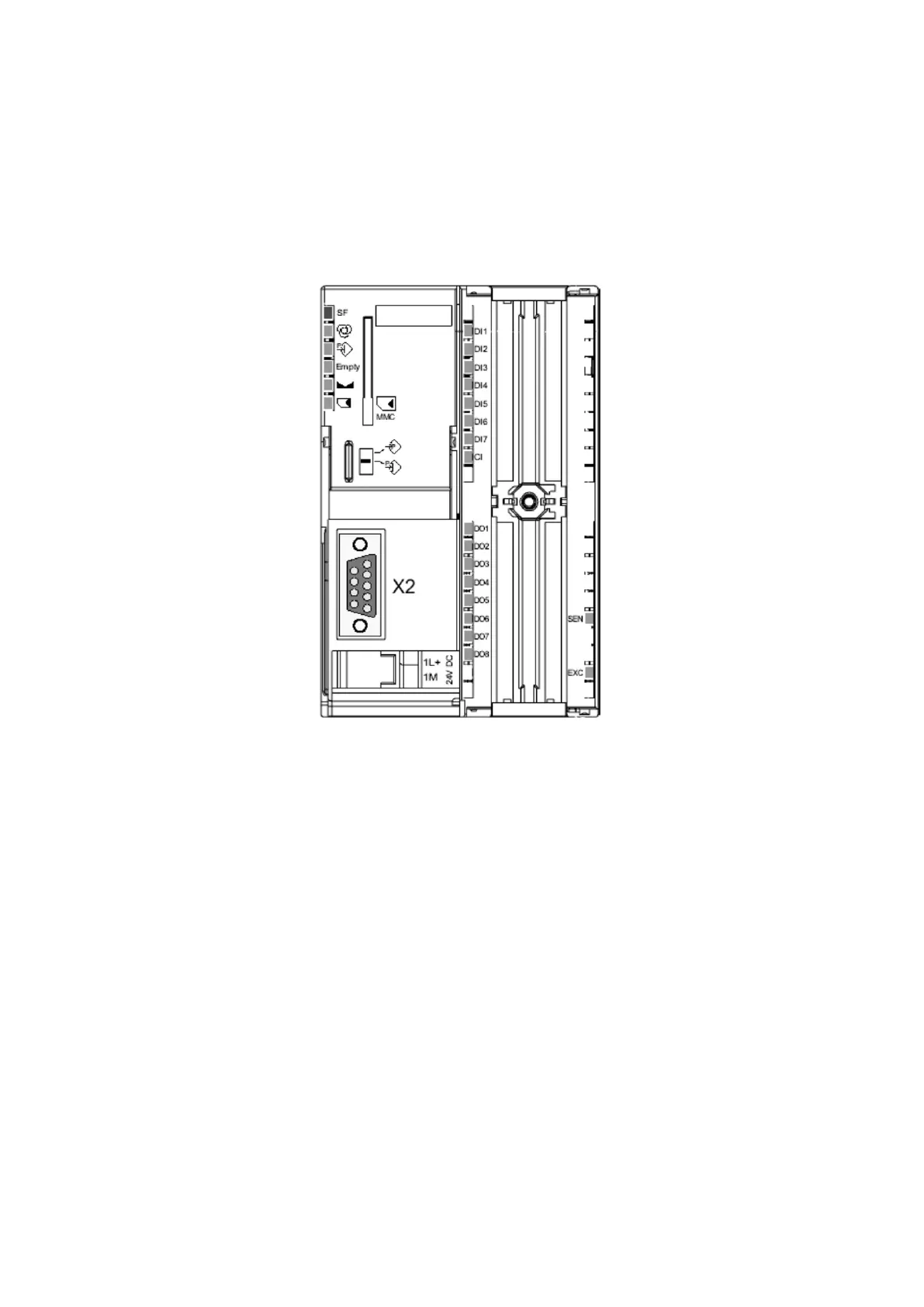

Image 4-1 SIWAREX FTA Front View
