Hardware Planning and Assembly
SIWAREX FTA
Terminal Signal name Remarks
X1.23 485a Output Ta
X1.24 485a Output Tb
X1.25 RTa Termination resistor RTa
X1.26 RTb Termination resistor RTb
Table 4-9 RS 485 Connections

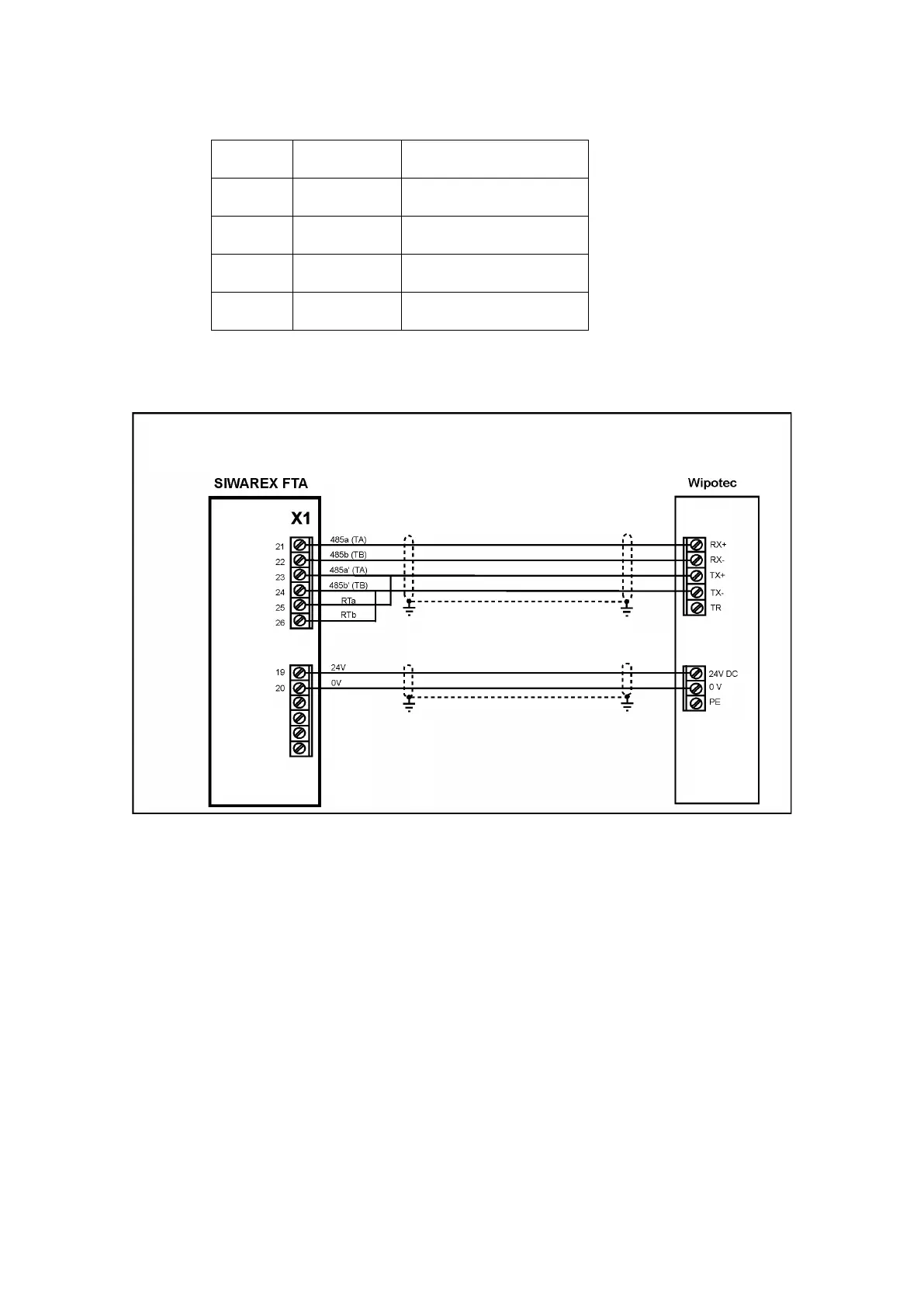

Image 4-14 Wipotec load cell connection
Appropriate settings need to be made when starting up a Wipotec load cell after connection.
See 5.2.31.
4.5.12 RS 485 interface for load cells made by PESA, Pfäffikon/Switzerland
Digital load cells can be connected to the Siwarex in accordance with Pesa's string
oscillation measurement method.
The following interface parameters must be set in datasets 3 and 7:
(DR3) load cell type: PESA
