Hardware Planning and Assembly
SIWAREX FTA
4.5.9 Analog Output
Termination Clamp Signal Remark
X1.29 IOUT+ Analog output +
X1.30 IOUT- Analog output -
Table 4-7 Analog output connections

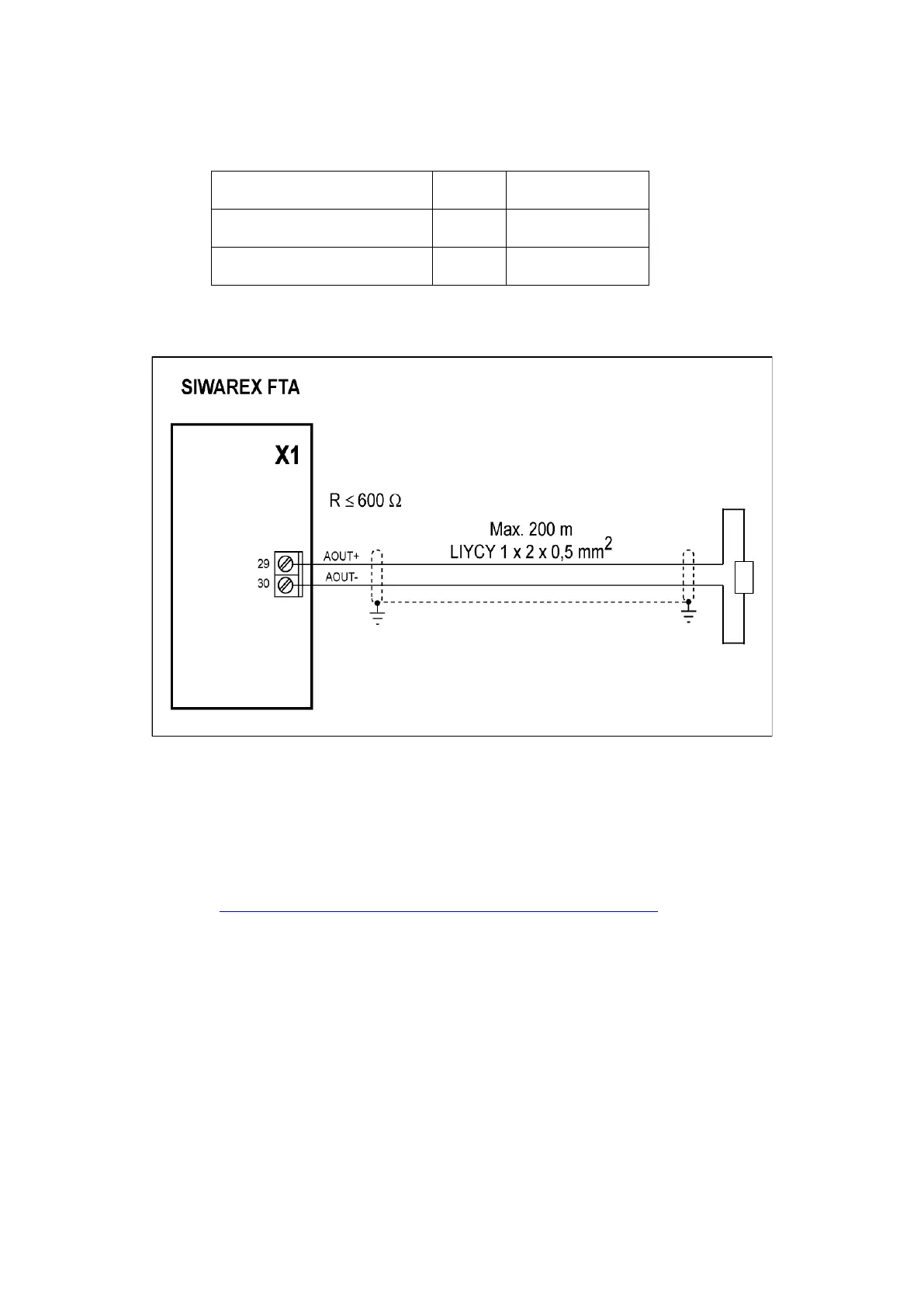

Image 4-12 Analog output
4.5.10 RS 485 interface for a METTLER TOLEDO
A description how to connect METTLER TOLEDO sensors PBK9/PFK9-APW can
be found in the internet under
https://support.industry.siemens.com/cs/ww/en/view/109746396
.
Type WM, WMH sensors from METTLER TOLEDO can be connected to the
Siwarex. This enables the realization of high-precision check-weighers and dosing
applications for weight values of 0.01g upwards.
The parameters in datasets 3 and 7 must be set as follows:
(DR3) Device selection: Digital load cell Mettler Toledo
(DR7) Baudrate: 38400
