Siemens SIWAREX FTA - Counter Input

Hardware Planning and Assembly
SIWAREX FTA
4-26

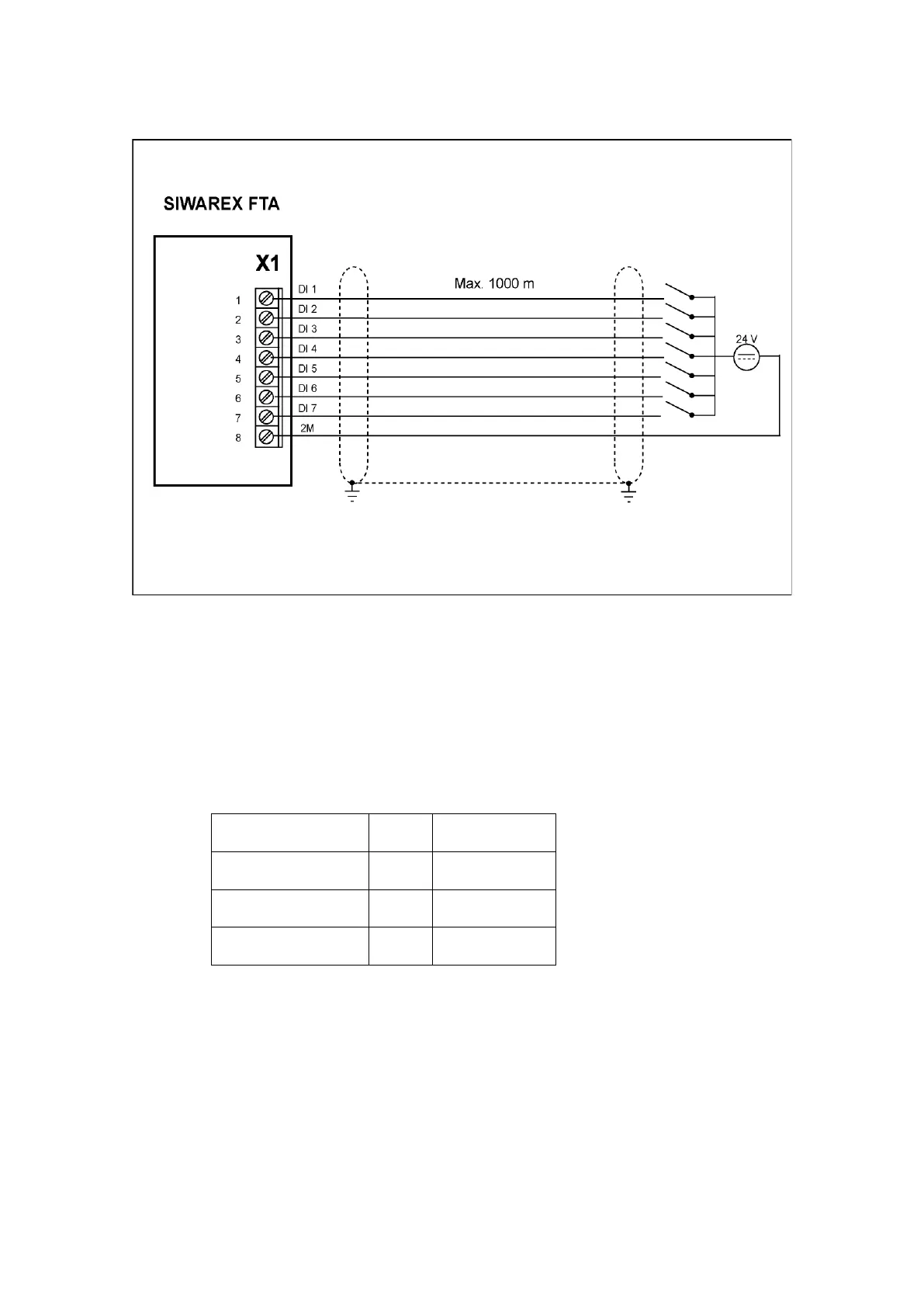

Image 4-9 Digital inputs
4.5.7 Counter Input
The counter input serves as the connection to the pulse encoder which is required
during weighing start-up for continuous operation. Twisted pair wiring should be
used for the connections.
Termination Clamp Signal Remark
X1.9 CI+ Counter input +
X1.10 CI- Counter input -
Table 4-5 Pulse encoder connection
